Description

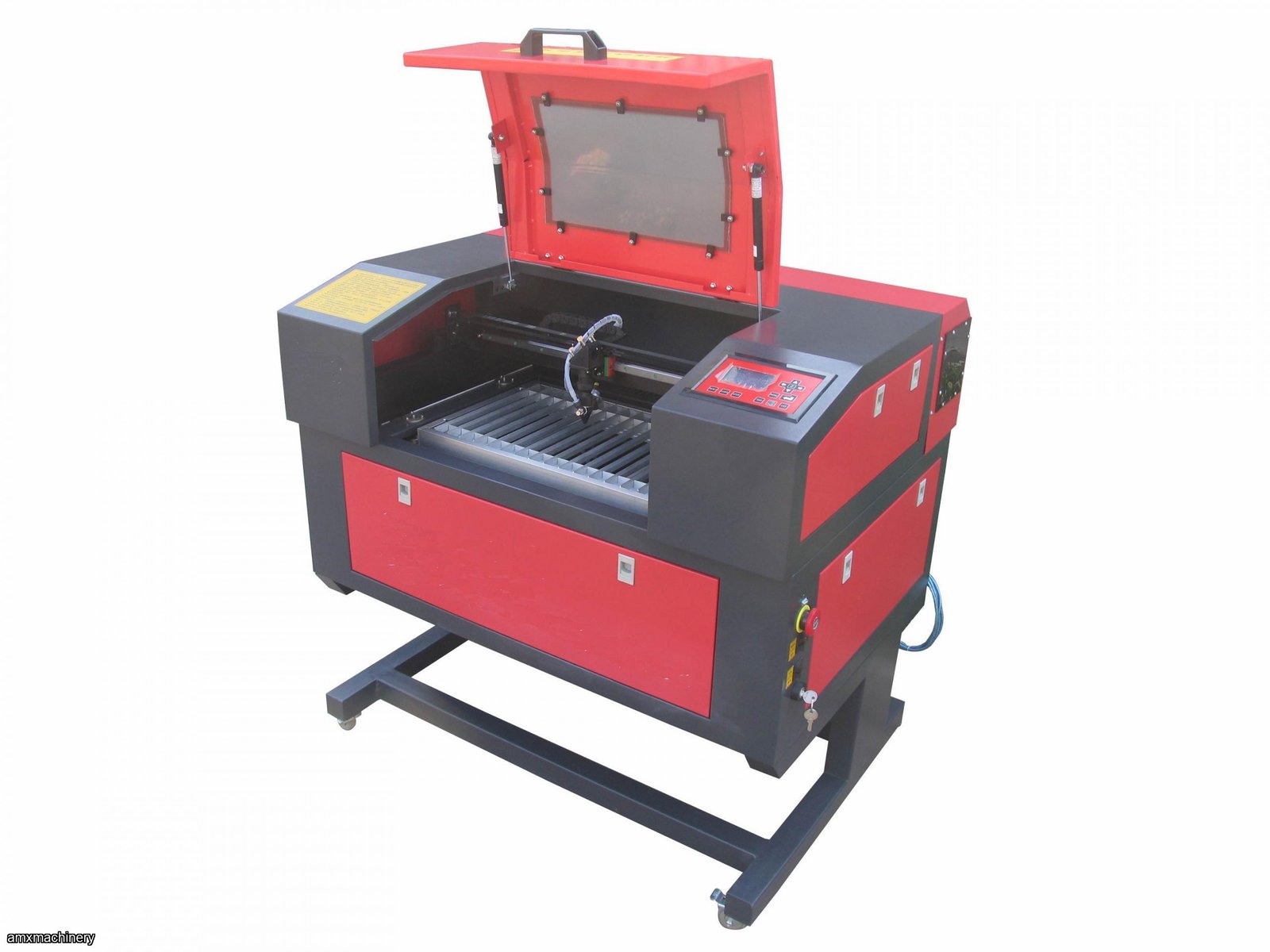

PARTE: 2TA-CLC2012 - GRABADORA LASER CNC 35.5” x 23.6”
NUEVA CON GARANTIA
35.5" X 23.6" GRABADORA/CORTADORA LASER CNC
- Applications for most material and many industries. Some include but not limited to wood, acrylic, leather, marble, glass, paper, rubbery, plastic, cloth, ABS and many more.
- Durable and steady are key features that ensure long life of motion and accuracy.
- Unique optics structure of the fly ray, which has low warp with high, steady and easy optical adjustment.
- Adaptation of the K9 reflect lens and ZNSE focus lens, of which reflectivity and penetrability is the strongest among congener fittings while the facula is thinner with stronger power of cutting. With this combination it maximizes work efficiency and reduces the work piece cost.
- LCD screen with the USB interface for data input. DSP control system based on the stepper Up-Controller Unit of PCI Lines in PV. It adopts the world advanced DSP-TMS320, XC2S300 controller chip which has the advantage of high speed, stable, strong preventing interference.
- The software of the machine has multi-functions; supports the file of DWG, HDGL(PLT), BMP, DXF, G-code, DST and AI which can work with the software of AutoCAD, CorelDraw, and Photoshop.
- This software has the function of power-off memory and continues from the stop point.
- Back door design for opening to applied unlimited material length.
- Heavy gauge sheet metal frame
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
ASTILLADOR PARA TRACTOR - MAX DIAMETRO 8”
PARTE:
2EB-JMA-8 - ASTILLADOR PARA TRACTOR - MAX DIAMETRO 8”
NUEVA CON GARANTIAFeatures include:Reversible KnivesAdjustable BedbladeSafety Bar - to disengage the Feed RollerRotating Exit ChuteSpecifications include:Chips 8" wood, with Opening size of 8"X8"PTO Driven at 540 RPMFeed Rate is 36 Feet per minute185Lb Flywheel, with Total Weight of approx 850 LbsRecommended for 18-45 HP tractors
Some
basic assembly is required.
AMXmachinery
ALIMENTADOR AUTOMATICO – PARA REASERRADORA - 3/4 HP
PARTE: 2EX-XF-22RP – ALIMENTADOR AUTOMATICO – PARA REASERRADORA
- 3/4 HP
Nuevo con garantía
PRESION CON PISTON NEUMATICO AUTOMATICA
PARA SIERRAS CINTAS DE 24” O MAS GRANDES
1/2 HP – 208-240V - 1 FASE
1/2 HP – 208-240V - 3 FASES
VELOCIDAD VARIABLE
VELOCIDAD MIN: 3.4 PIES/MIN
VELOCIDAD MAX: 130 PIES/MIN
1 RODILLO: 9-7/16” X 6-3/16”
GUARDA DE RODILLOS 15-3/4” X 7-7/8”
BRAZO GIRA 30 GRADOS
ANCHO MAXIMO 8-1/4”
PESO 115 KG
AMXmachinery
PARTE: 3FM-FJS-001 – SISTEMA FINGER JOINT – SEMIAUTOMATICO
PARTE: 3FM-FJS-001 – SISTEMA FINGER JOINT – SEMIAUTOMATICOIncluye:Trompo- Motor Figer 10 HP- Motor Escuadra 5 HP- Motor Mesa 2 HP- Dimensiones empacada: 2060x1150x1500 mmEnsambladora- Area de trabajo 4600mm largo x 150mm ancho x 75mm alto- Motor Cortador 5 HP- Motor Alimentador 1/2 HP- Motor Bomba Hidraulica 5 HP- Dimensiones empacada: 6000x750x1640 mm
AMXmachinery
SOLDADORA DE SIERRAS CINTAS
PARTE # 4VF-FW-505BMN – SOLDADORA DE SIERRA CINTAS – CAP. ANCHO 10-60 MM- Steel Band Width [min-max]: ...........10-60 mm- Bimetal Band Width: ........................10-34 mm- Band Thickness [min-max]: ….......... 0,6-1.2 mm- PowerAbsorbed: .............................. 12 kW- Net - GrossWeight: .......................... 260-330 kg- Machine Dimensions [DxWxH]: ....... 820 x 850 x 700 mm- PackingDimensions [HxWxD]: ......... 1000 x 1050 x 950 mm
