Identificador: 244
Abierta
Descripción

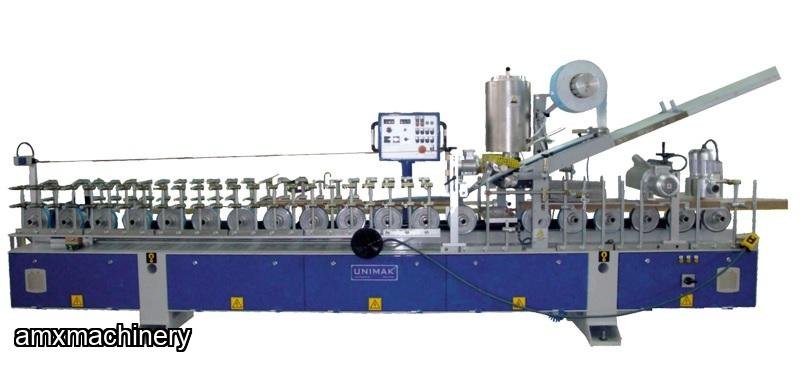

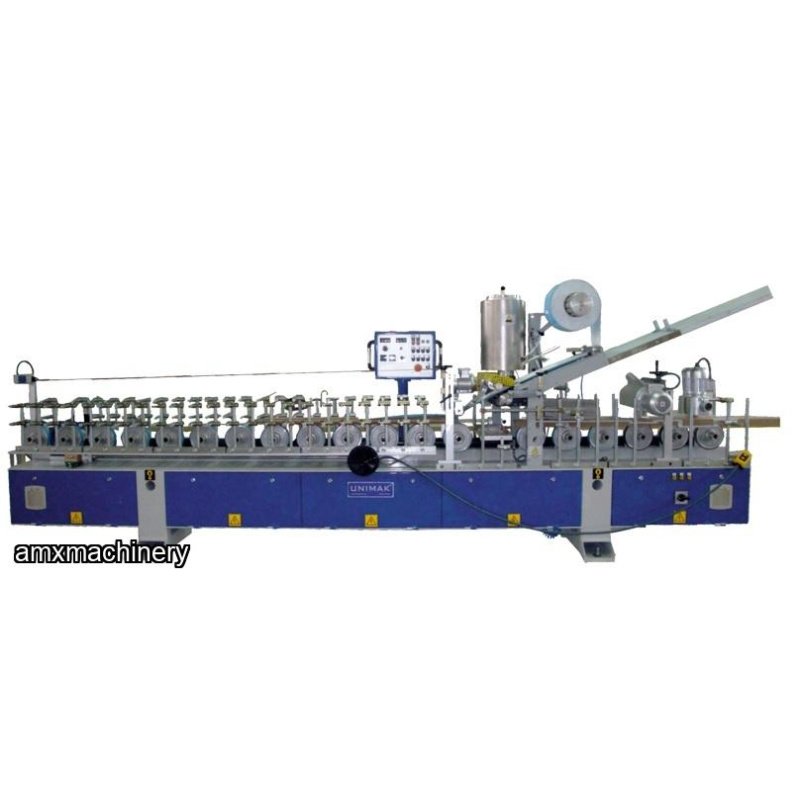

PARTE: 2UK-PW35-F5-E - RECUBRIDORA DE MOLDURAS
- Six meters, long steel construction bedframe, composed of 19 groups of synchronized transport wheels of 15mm width driven by a frequency inverter controlled motor (1.5 kW) with speed variation from 10 up to 47 m/min. Through an helicoil screw spindles gear transmission.
STANDARD EQUIPMENT
- Quick adjustable guides for profile Access ( EASY FEEDING)
- Top cleaning brush, 0.37 kW motor power, rotating at 900 rpm.
Brush 300 x Ø 140 mm with protection cover and dust outlet Ø 60 mm
- Side cleaning brushes, 0.18 kW motor power, rotating at 1500 rpm.
- Brushes 100 x Ø 140 mm with protection cover and dust outlet Ø 60 mm
- Profile preheater ( 3pcs.)
- Case for Glue (EASY CLEANING)
- Moveable operator control panel (EASY CONTROL)
- Digital conveyor speed display
- 6 inches (Ø 152 mm ) unwinding stations with pneumatic brake and expansible air shaft for Roller applicator
- EVA& APAO glue melting tank with 20lt volume and Heat control seperately at two parts of body for reducing Power supply. (2000 W * ‘ Pcs – Cylinder Resistance)
- Special Glueing roller for Veneer Wrapping (350mm Max.)
- Applicator Heater (1500 W* 3 Pcs.)
- 6 pieces hot air fan for core preheating or glue reactivation
- 152 pieces standard and special wrapping tools.
- Security system with cable for emergency stop along the whole machine accordingto EC standarts.
TECHNICAL FEATURES
- Glue Type: EVA or APAO glue.
- Profile Type: MDF , Chipboard, Solid Wood Profiles
- Foil Type: P.P., Paper, Finished Foils, and Veneer (Roll & Strip)
- Foil Width: From 20 mm to 350 mm.
- Profile Width: 200 mm. Max.
- Profile Height: 125 mm. Max.
- Dimensions: 6000x850x2200
- Weight: 2250 kg
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
ENCHAPADORA CURVOS
PARTE # 12C-EB-2 - ENCHAPADORA DE CANTOS CURVOS Y RECTOSPOTENCIA MAXIMA: 3500 WATTSVOLTAJE 2: 220 VOLTSVELOCIDAD VARIABLE: 0-8 METROS/MINUTOTEMPERATURA OPERACIÓN: 100ºC A 230ºCCORTADOR: NEUMATICOALIMENTADOR: RODILLO DE HULEPROTECCION RODILLO DE HULEMESA ALUMINIOADHESIVO HOT-MEALPESO APROXIMADO 250 KGPARO DE EMERGENCIA2 ZONAS DE TEMPERATURAPIROMETROS DIGITALES
-500x500.jpg)
AMXmachinery
HORNO DE AIRE CALIENTE - WELDTRON – 6028
PARTE: AMX-10042 - HORNO DE AIRE
CALIENTE - WELDTRON – 6028EN BUENAS CONDICIONES DE OPERACIONMODEL # 6028VOLTS: 230CYCLE: 60PHASE: 3AMPS: 44FWO: 31627WATTS: 15FABRICANTE: WELDTRON CORPORATION, NEW JERSEY, USADIMENSIONES MAQUINA:76" LARGO X 34" ANCHO X 63" ALTOPESO ESTIMADO: 300 KGSVIDEO DE LA MAQUINA FUNCIONANDO: VIDEO 1
AMXmachinery
RESACADORA SENCILLA – 60” CAPACIDAD LARGO
PARTE: 2FA-NXL-48 – RESACADORA SENCILLA
– 60” CAPACIDAD LARGO
NUEVA CON GARANTIA
HASTA 800 RESAQUES/HRStandard FeaturesCutter Head is Never ExposedTable Moves w/Dual Air Rams Á Linear BearingsDouble Clamp System Machine SpecsDimensionsLength: 60"Width: 90"Height: 50"Table Height: 37" Power20 HP Electric Motor: 208/230/480/3/60 TEFCCompletely pre-wired motor starter with start/stop
buttons and circuit overload protection SpecificationsArbor & Bearing Size: 2"Approx. 2000 lbsTabl...
AMXmachinery
PRENSA FRIA – CAPACIDAD 1250 X 2500 MM – 50 TON
PARTE: 3UD-CP48X50T – PRENSA FRIA – CAPACIDAD 1250 X 2500 MM – 50 TON
Nueva con
garantía
MODELO
3UD-CP48X50T
WORKING TABLE
SIZE
1250X 2500 MM
MAXIMUM PRESSURE WORKIG TABLE
50 TON
MAXIMUM
OPEN DISTANCE PRESS PLATE
1000/1300/1500
MM
OIL
CYLINDER
90 MM
X 2 PCS
HYDRAULIC
MOTOR POWER
4.0 /
5.5 KW
...
