Identificador: 2359
Abierta

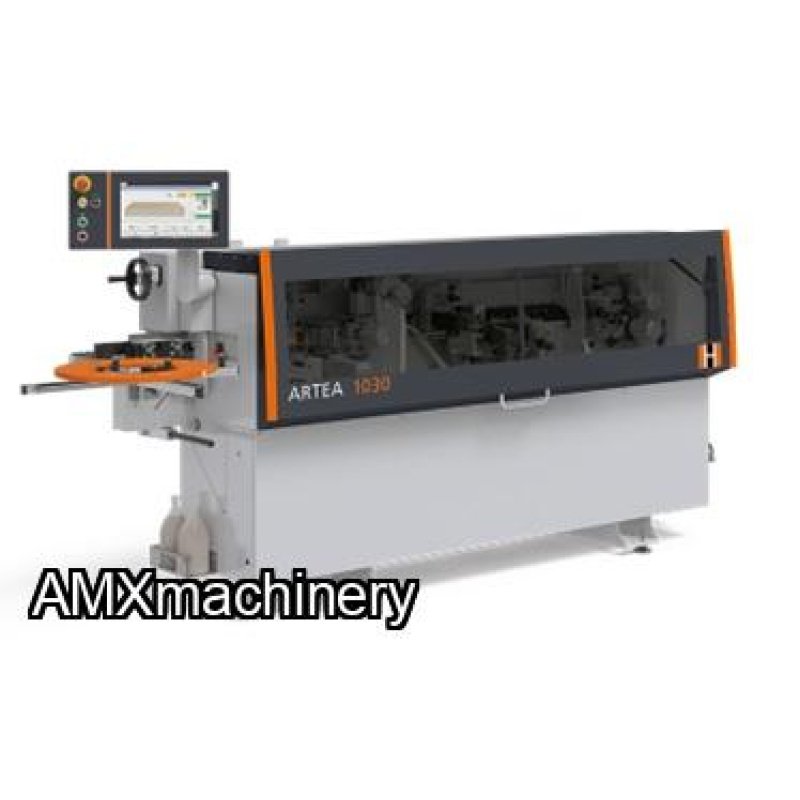

PARTE: 2WG-ARTEA1030 - ENCHAPADORA DE CANTOS - HOLZ-HER - ARTEA 1030
AMXmachinery
Descripción
PARTE: 2WG-ARTEA1030 - ENCHAPADORA DE CANTOS - HOLZ-HER - ARTEA 1030
ARTEA series
highest user-optimization, productivity, precision and safety for years thanks to heavy and rigid frame.
Control technique and operation
with rotating control panel, dustproof.
Easiest operation through the 15,6" touch screen with graphical support
as well as VISE function and glue type library.
Glue application system with Glu Jet
highest flexibility on glue application via patented nozzle technique
EVA and PUR glue can be handled without laborious and expensive accessories.
Neutral or coloured glue can be changed quickly.
Lowest energy expenses thanks to shortest heating time within 3 minutes.
Unit technique
Basing on our 50 years' experience concerning edge banders we supply modern and solid working units which have been developed continuously in order to grant high-class processing of edges and guarantee best product quality on all ready items.
Tooling technique
latest technical up-date on milling technology, each matching with your special application range.
Accessories
The wide range of accessories starts from the nesting package up to the high-tech spray devices.
|
BASIC MACHINE ARTEA 1030 US / Canada version 230V / 60Hz with manual pressure bridge adjustment |
|
Equipment according to following technical specification. |
Pull-out workpiece support, distance 500 mm
|
Pull-out workpiece support, distance 500 mm |
|
|
TECHNICAL SPECIFICATIONS |
|
|
Edgebander for the edging and post-machining of materials in panel form (such as chipboard panels, MDF panels, tabletops, etc.)
Edging thickness of coiled edging: 0,4 - 3 mm Edging thickness of cut-length edging: 0,4 - 5 mm
Edging height: max. 55 mm Panel thickness: 8 - 50 mm
Edging cross section: max. 5 x 50 mm (depending on material)
Workpiece width: min. 70 mm Workpiece length: min. 180 / 210 mm Feed speed: 9 m/min. |
|
