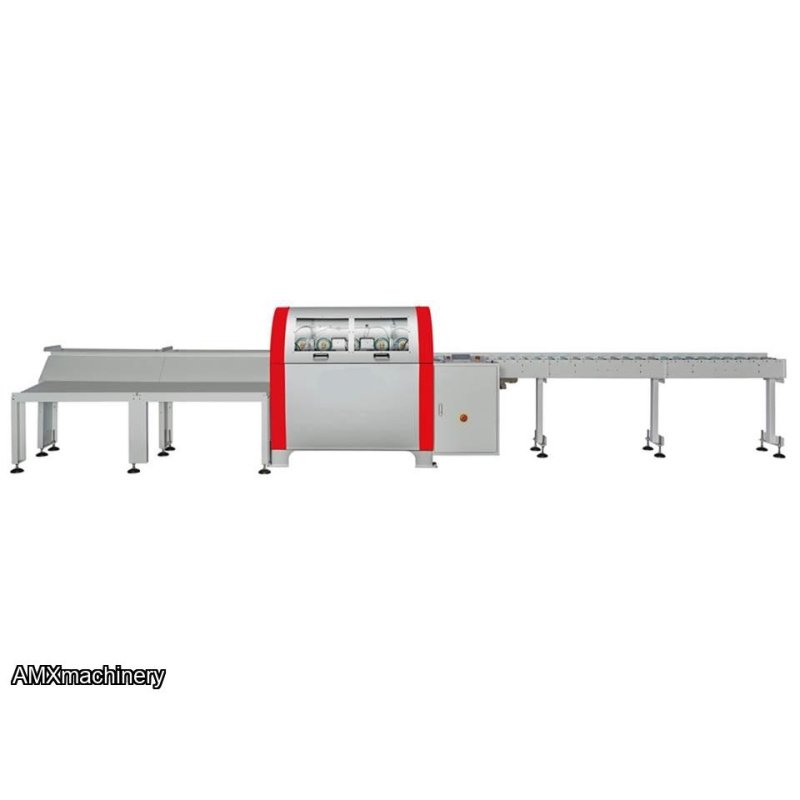

PARTE: 3HP-EMA-250 – CABECEADORA - CONTINUA - PARA TABLAS Y PISOS – 40-250 MM ANCHO
AMXmachinery
Descripción
PARTE: 3HP-EMA-250 – CABECEADORA - CONTINUA - PARA TABLAS Y PISOS – 40-250 MM ANCHO
ESCOPLO Y ESPIGA
Nuevo con garantía
Specification:
1.Max. / Min. Width: 250mm / 40mm
2.Max. / Min. Thickness: 10mm / 35mm
3.Min. Board Length: 270 mm
4.Max. Board Length: Unlimited
5.Max. Board Weight: 15kgs
6.Cutterhead Motors: 5-1/2HP x2 (Optional: 7-1/2HP x2 or 10HP x2)
7.Feeding Pressure Roller Motor: 1HP W/1HP Inverter
8.Infeed Conveyor Table Motor: 1/2HP (Optional: Variable Feed 1HP Inverter)
9.Cutterhead Feeding Motor (Forward & Backward): 1/2HP W/1HP Inverter
10.Cutterhead Spindle Diameter: Φ40mm
11.Max. cutter head dia.: 160mm
12.Cutterhead Type: TCT Disposable Inserts
(L): 14*14*2mm x 12pcs. 11.8*33.85mm x 4pcs.
(R): 14*14*2mm x 16pcs. 15*15*2.5mm x 8pcs. 11.8*33.85mm x 4pcs.
13.CutterHead Washer: 0.1 to 0.5, 1, 2, 5, 10, 20mm
14.Cutterhead Travel System: Mechanical Actuators
15.Feed Speed: 90M/min.
16.Processing Speed 24M/min. - Base on 2M Boards
17.Clamping: Clamps on Top and Side
18.Controls: Manual or Automatic
19.Air Service Unit: Norgren
20.Air Consumption: 12CFM
21.Dust Collection Hood: 6" x1
22.Max. RPM of Cutterhead Spindles: 7000RPM
23.Table to floor height: 950mm
24.Weight: 1100kgs
25.Packing Dimension with Pallet: 2300 x 1300 x 1600mm /1150kgs
26.With Motor In Feed Roller Table: 3300mm(L) & Foot Stand (3sets/unit)
Without Motor Out Feed Table: 2200mm(L) & Foot Stand (2sets/unit)
27.With CE Standard
28._______Volt,_______Hertz
OPTIONAL: In Feed Conveyor (One Section is 1100mm)
