Identificador: 1682 Abierta
TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO
TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO
TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO

TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO

AMXmachinery

Contacte al Vendedor
Descripción

PARTE: 2TA-CL-330S - TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO

Nuevo con garantía

Features:

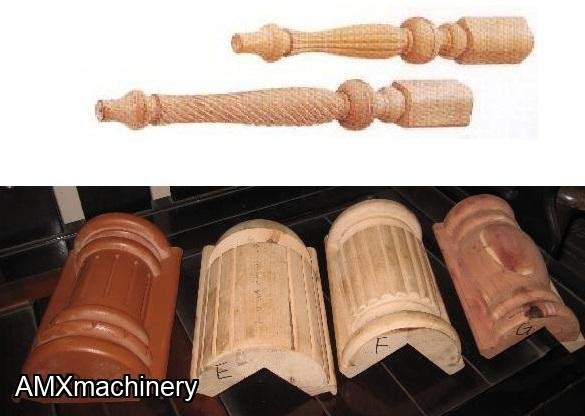

  • Suitable for cutting straight and spiral grooves for the straight shaped or tapered spindle.

  • The machine employs rotary air cylinder incorporating with gear for accurate indexing of grooves.

  • The cutter carriage's forward and backward movements are hydraulically operated with feed speed control providing a smooth motion and stable cutting performance.

  • The number of the grooves for the cutter strokes can be set at the control box.

  • A frequency inverter controls the cutter variable speed turning for best results.

  • The hopper variable feed system allows the operation to be fully automatic.

  • Equipped with automatic lubricator to lubricate the slide ways and keeps the slide ways in the optimal lubricated condition.

  • It can cut straight or spiral grooves while it is turning. Twenty-four grooves is the maximum number that can be cut.

  • The hopper feed system delivers the next piece of stock to the centering device after each turning is accomplished, thus providing a fully automatic operation.

  • Router bits or shaper cutter can be used.

  • Industrial full power motor for maximum cutting capacity.

  • Precision sealed long-life bearing.

  • Heavy cast iron frames and table for durability usage.


SPECIFICATIONS

2TA-CL-51SAP

2TA-CL-47AP

2TA-CL-330S

Max. Between Center

51"

47"

30"

Max. Finish Product Dia.

4-1/4"

4-1/4"

4"

Spindle Speed

2000 ~ 6000RPM

3000RPM

0 ~ 2000RPM

Main Motor

5 HP

5 HP

2 HP

Hydraulic Motor

3 HP

3 HP

3 HP

Template Copier

One

One

One

Model Copier

One

---

---

Max. Copier Travel

3-1/8"

3-1/8"

---

Total Cutting Knife

4

3

1

Feed Speed

Variable

Variable

Variable

Operation

Manu. Semiauto, Auto

Manu. Semiauto, Auto

Manu, Auto

N.W.

2900 LBS

2300 LBS

2970 LBS

G.W.

3400 LBS

2850 LBS

3630 LBS
