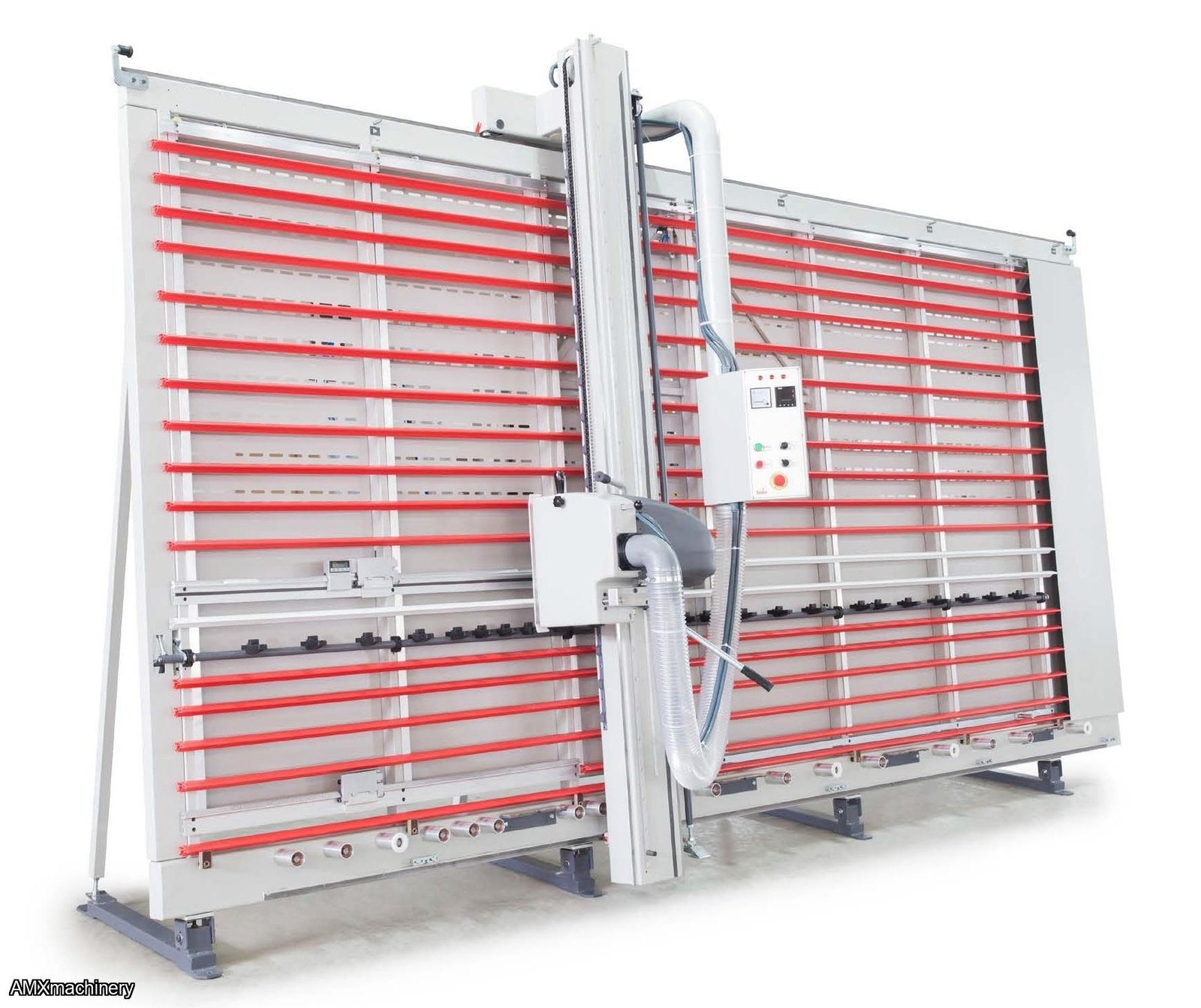

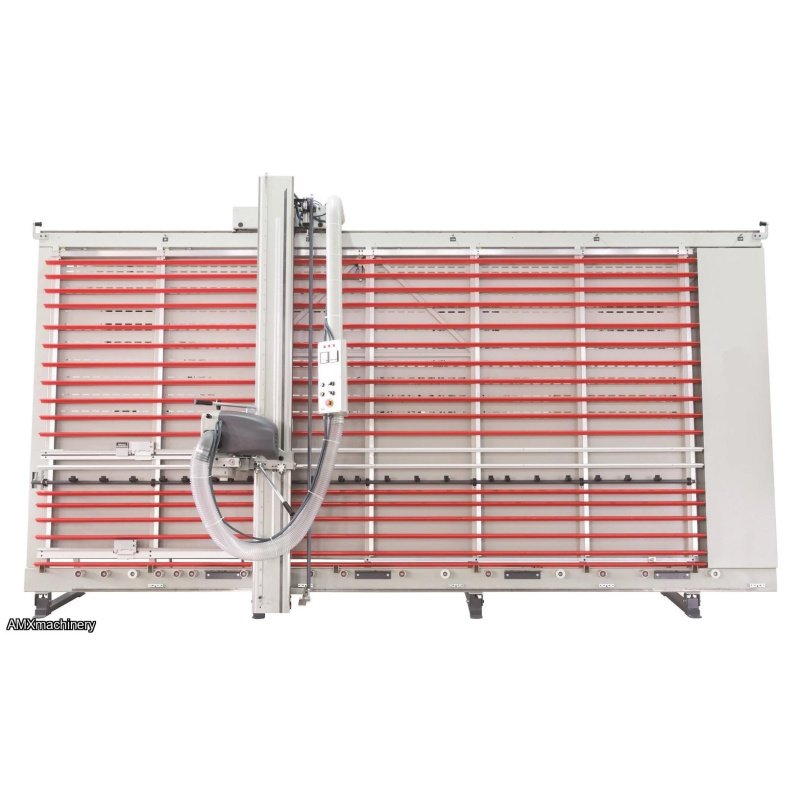

PARTE: 4BA-DPM-ED-2141 – SIERRA ESCUADRADORA VERTICAL – CAP. 2100 MM X 4100 MM X 60 MM
AMXmachinery
Descripción
PARTE: 4BA-DPM-ED-2141 – SIERRA ESCUADRADORA VERTICAL – CAP. 2100 MM X 4100 MM X 60 MM
Nueva con garantía
Demo model with about 30 hours on it
Specifications

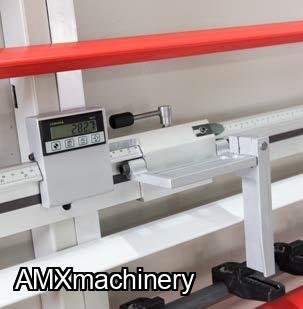

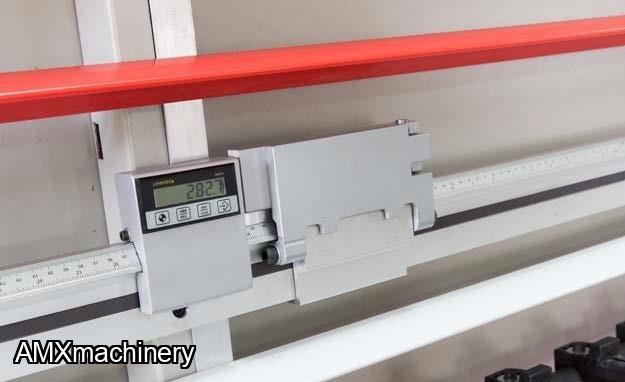

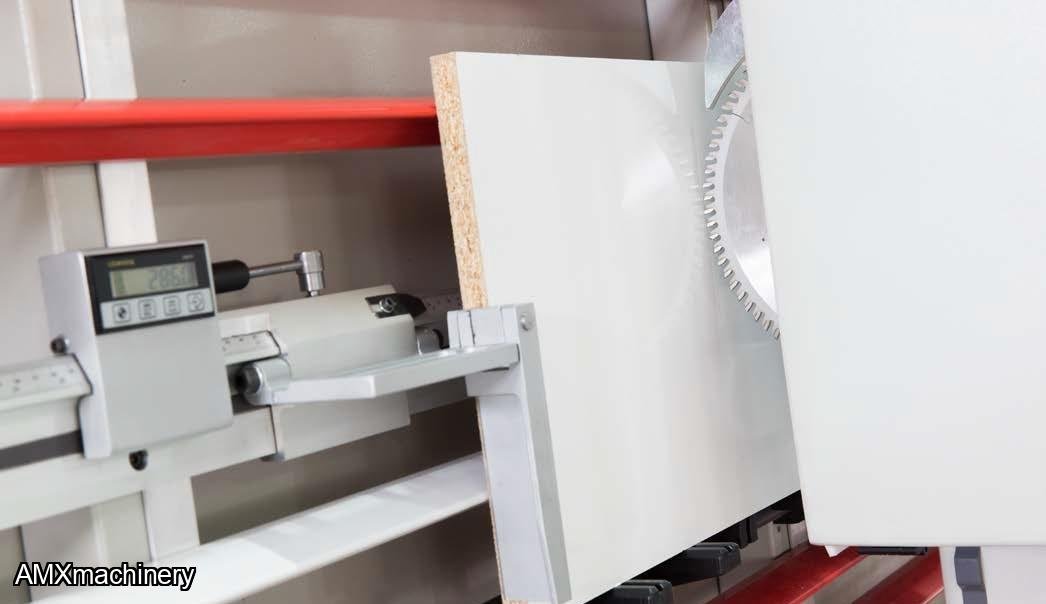

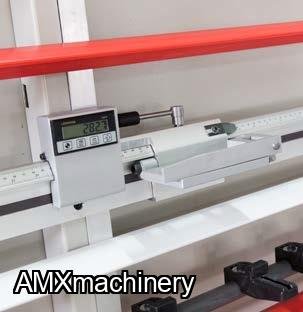

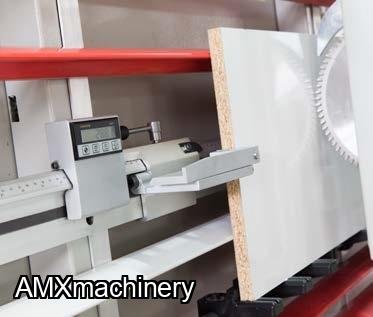

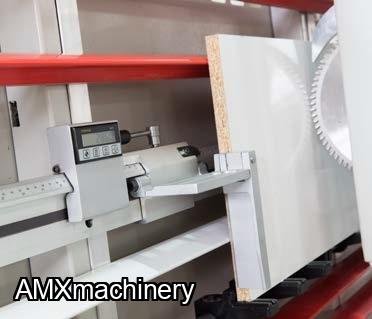

- Comes with digital readouts on the vertical and horizontal axis, readout in decimal inches or mm
- Processing sheets both horizontally and vertically
- Cutting height is 2100mm
- Cutting length is 4100mm (161") Actual overall length of machine is 16’.4”
- Weight 2400 lbs
- Thickness of cut is 0-60mm

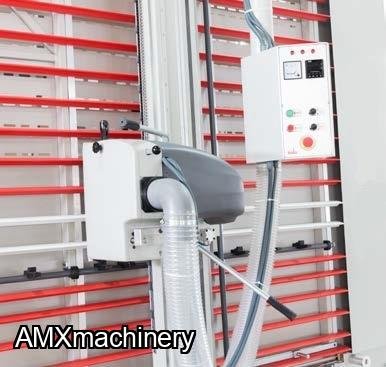

- Comes with main blade and scoring blade
- Motor hp is 4.0 (3 kW) three phase, 208/230 volts
- Needs to be hooked to external dust collection

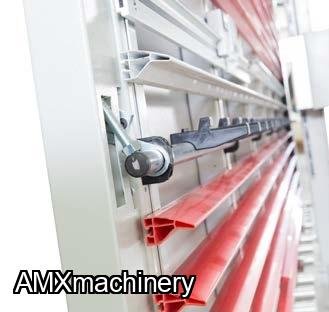

- Moveable front panel supports. (Pneumatic automatic movement up and down using sensor system
- Bottom supports are metal wheels
- Machine comes with 1 year warranty
- Pneumatic locking of gantry and head
- Voltage is 230/208 volts, 3 phase.
- Dual scales, imperial and metric
- Gantry locks in position every 40" for vertical cuts

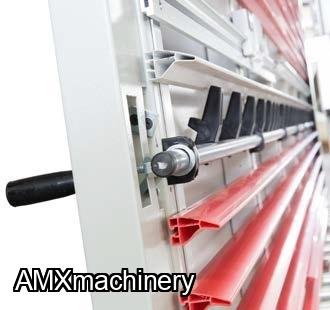

- Has a mid-shelf supports for cross cutting narrow boards, instead of putting on bottom rollers
