Identificador: 2167
Abierta
Descripción

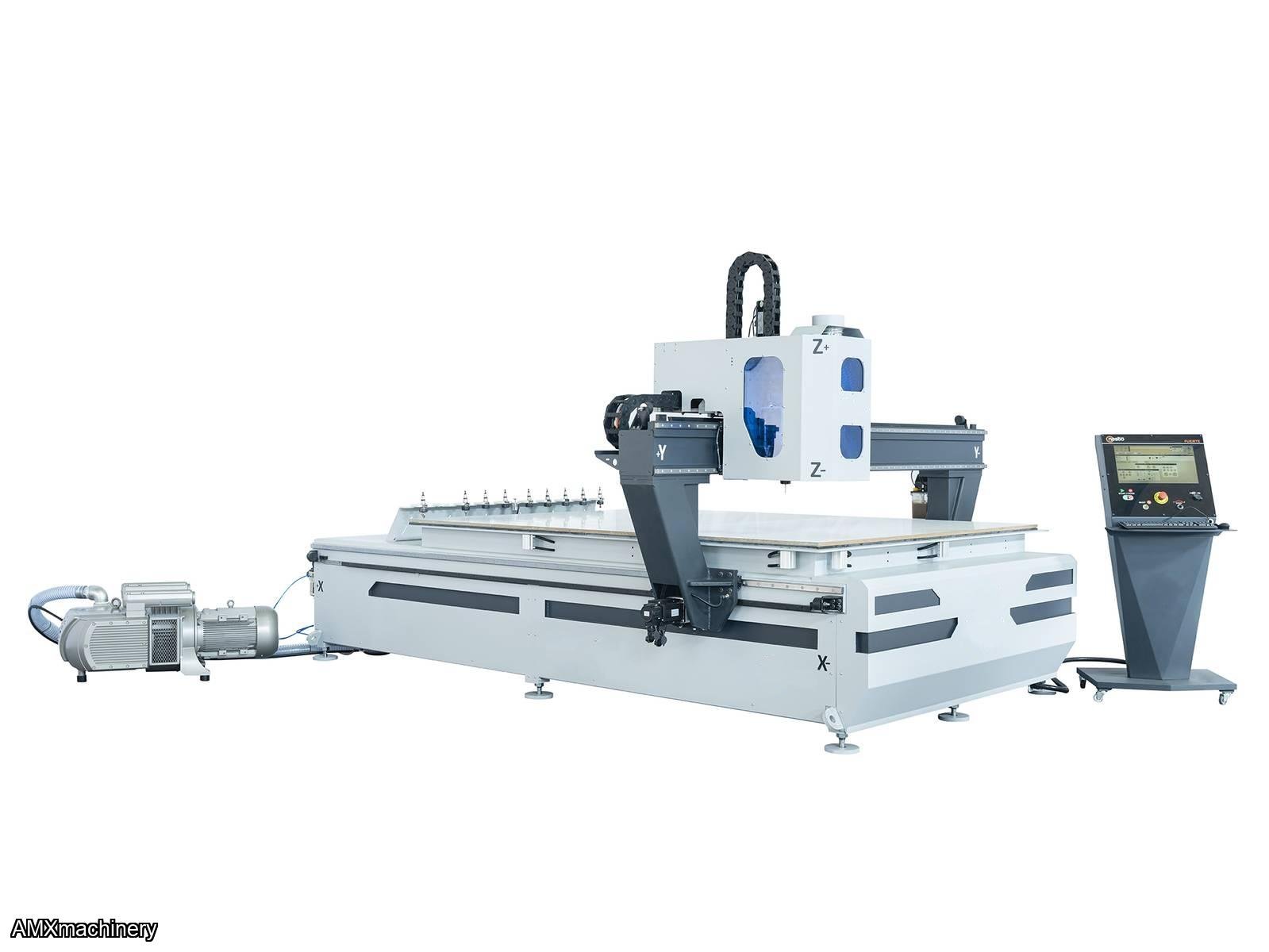

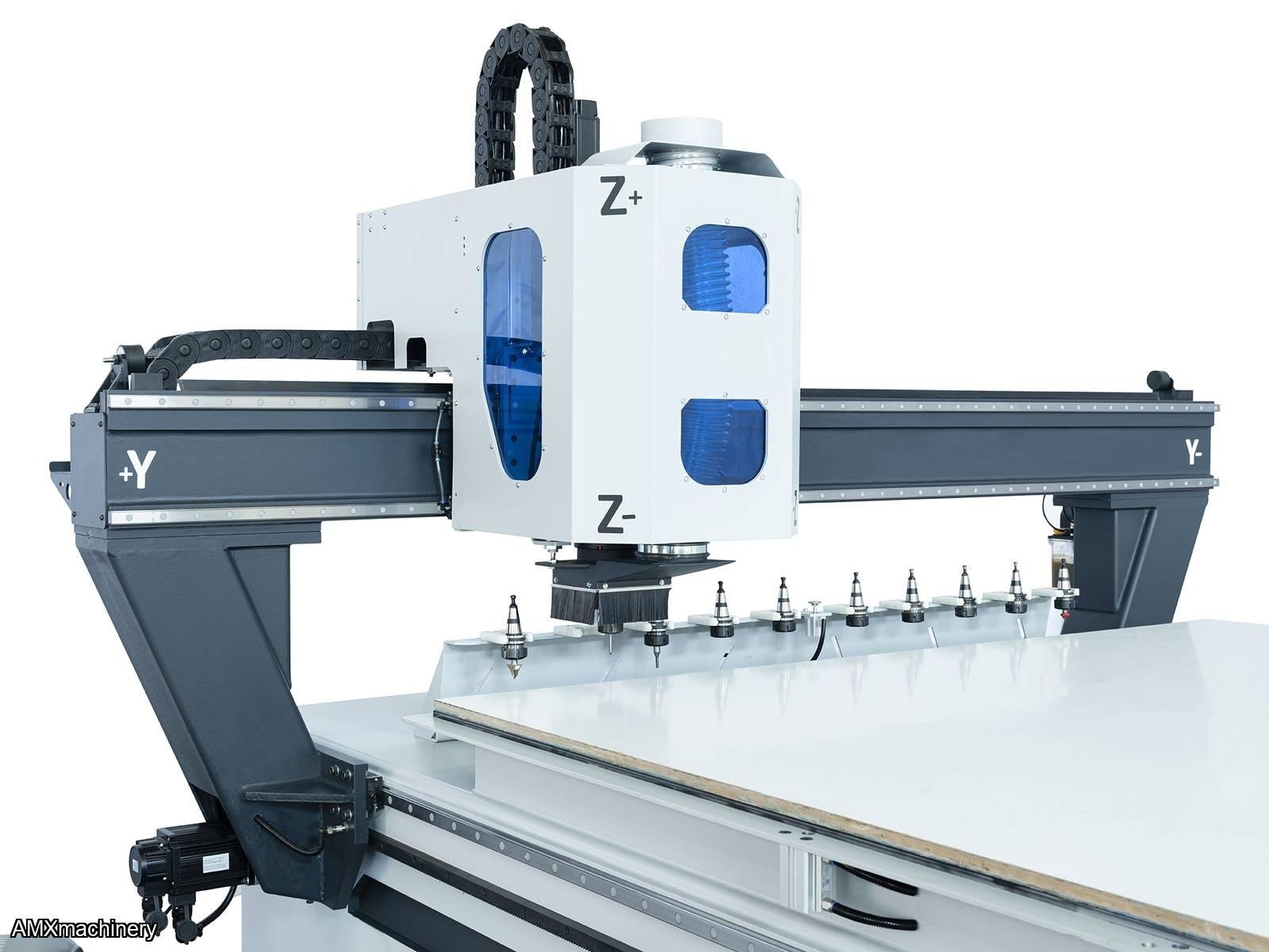

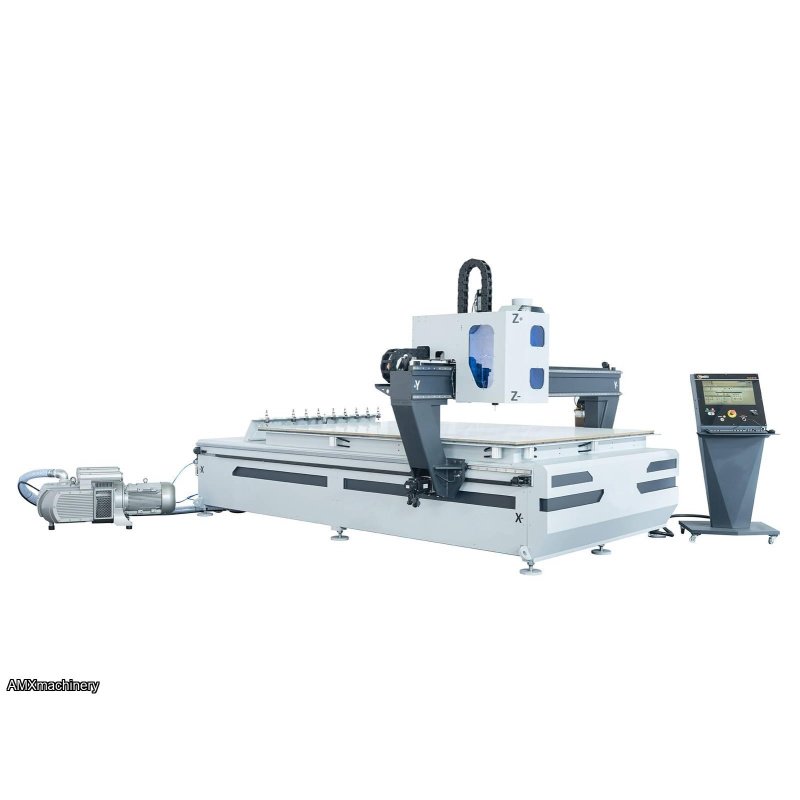

PARTE: 4NE-FUERTE - CENTRO DE MAQUINADO CNC - 10 HP - FUERTE
Spindle: HERTZ 8.5 KW 24000 rpm ISO30 (TURKEY)
• Vacuum Pump: BLOWER VAKUM POMPASI
• Working Capacity: 2100mm*2800mm (2100mm*3660mm Option)
• Remote Control: YES
• Automatic Self Lubrication System: YES ( ILC - Italian )

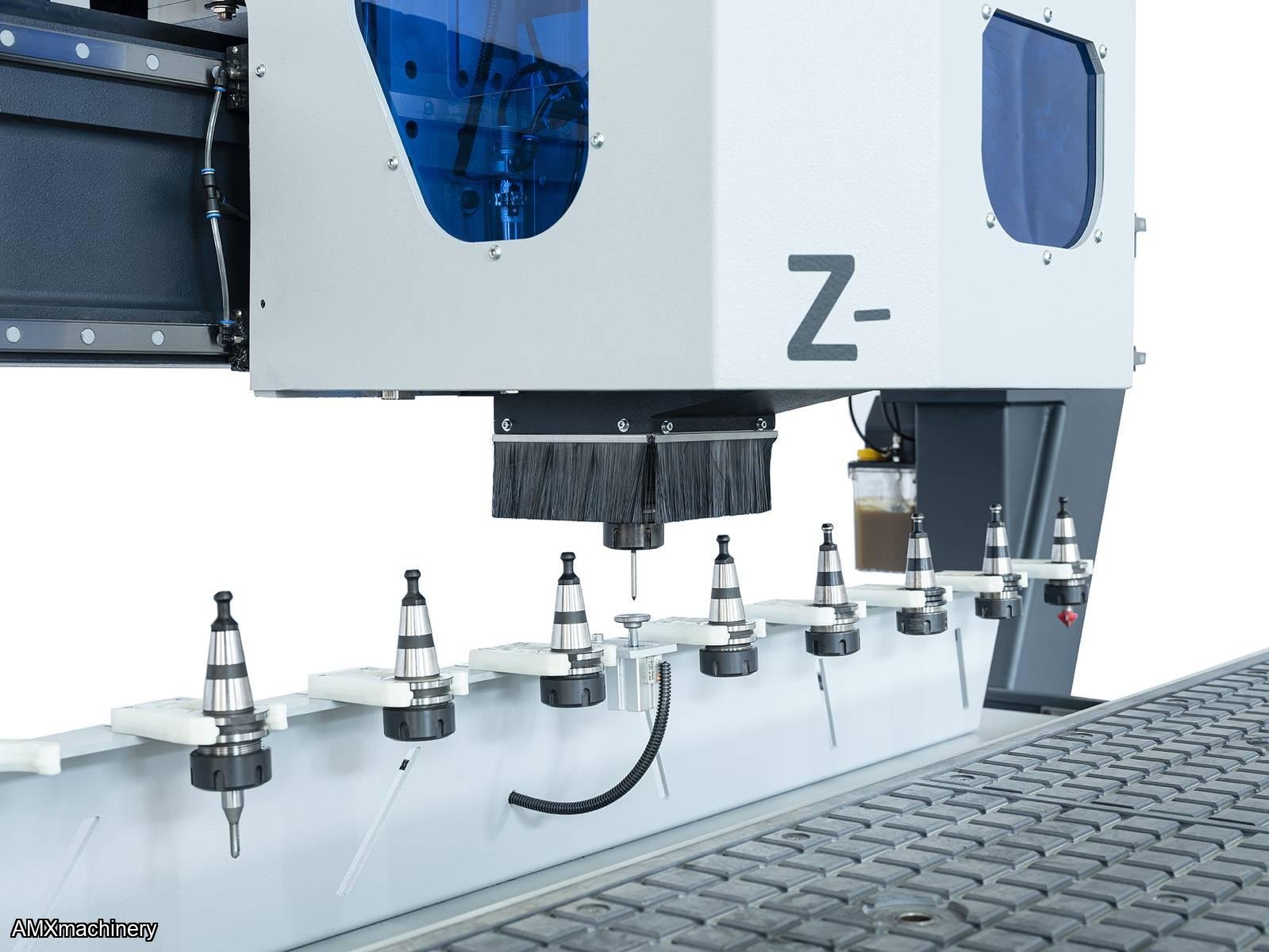

• 10 Tool capacity tool magazine back side of chassis
• 10 Toolholder
• Vacuum Zone: 6 zone for 2128 / 8 zone for 2136
• Automatic Unloading and Cleaning System: Optional
• Total Power: 19 kw
• Weight: 3000 kg
• Machine Dimens.: Lenght: 4080mm * Width:3000mm * Height: 2100mm (2136 da L: 5115mm)
