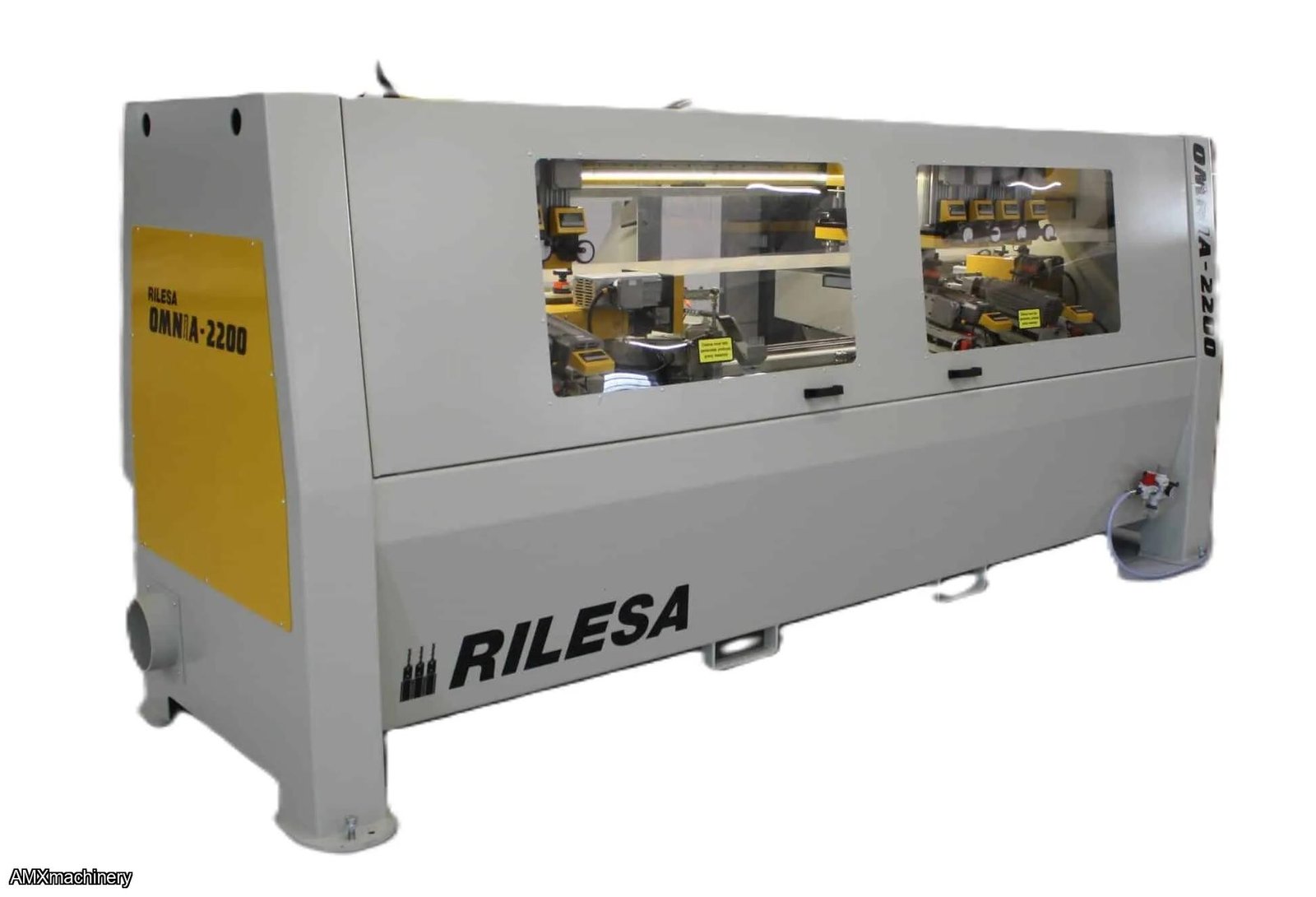

PARTE: 4RI-OMNIA2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - OMNIA 2200
AMXmachinery
Descripción
PARTE: 4RI-OMNIA2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - OMNIA 2200
NUEVO CON GARANTIA
Description:

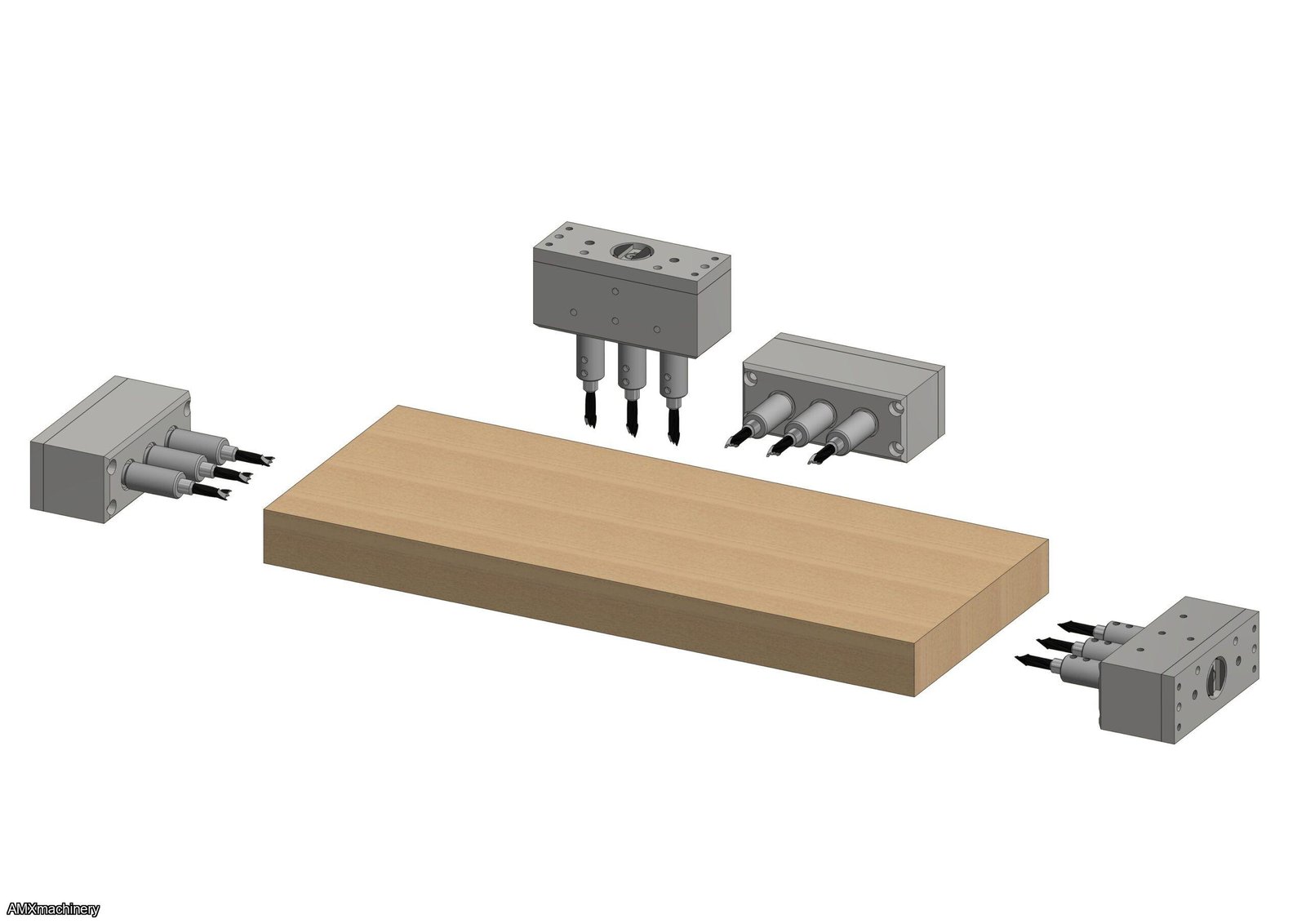

• Drilling from 4 sides : top, right, left, back
• Capacity of up to 22 pcs/min
• Vertical magazine
• One-man operated
Extra:
• Side movement
• Single drop magazine
• Possibility to revers items out of the machine
• Can be integrated in a line of machines
• Waste Conveyer
Workpiece Dimensions
Length:
160 – 1500 mm
160 – 2200 mm
Height:
10 – 40 mm
Width:
25 – 250 mm
Features:
- Digital displays for fast and accurate adjustments in all directions
- Horizontal end drilling
- horizontal drilling from the back
- Standard Rilesa drill box CC32x4
Options:
- Different rapid change spindle systems for drill boxes
- Side movement: Useful function for measurement other than cc 32 mm
- Optional hopper with integrated workpiece separation
- Optional horizontal drilling unit from the back side with an extra long stroke up to 130 mm
- Waste conveyor below machine
- Front elevator for collecting finished items
- Rilesa custom designed drill boxes
