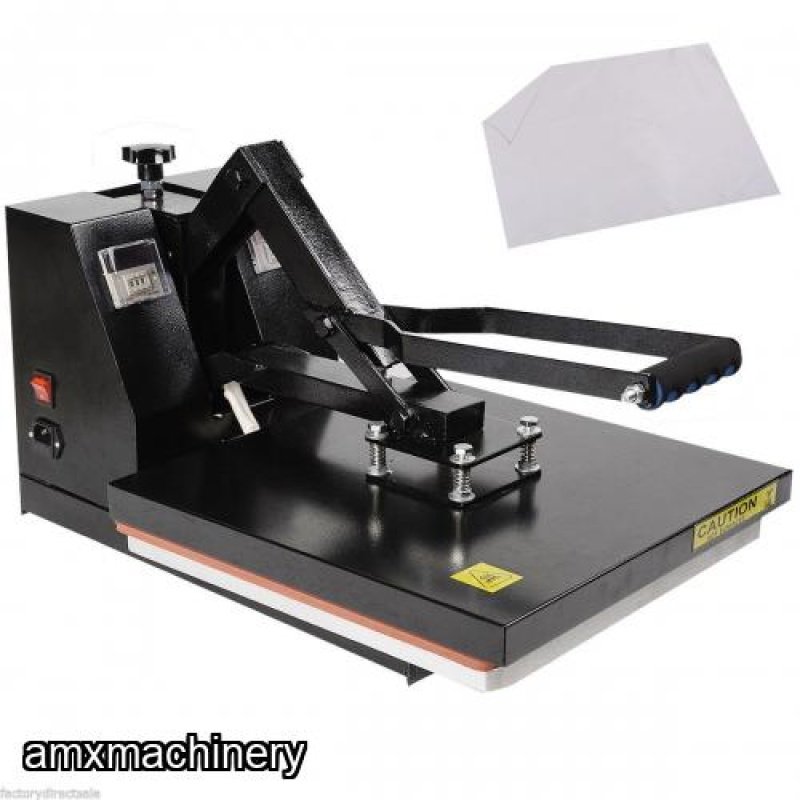

PLANCHA SUBLIMACION - 15 X 15"

PARTE: 2EB-AG010 -  PLANCHA SUBLIMACION 15 x 15"

Description:

This machine can transfer the photos or words printed by sublimation ink and menstruum ink on T-shirt cotton, hemp, chemical fiber, art article etc, also it can make other technical heat treatment.

It has the competitive price and also popular used.

Features:

Digital controller

Automatic alarm

Electronic equipment control the temperature,high veracity(±2℃)

The heated thread and heated board are together,safe,durable,quantity of heat distribute uniformity

The plating motherboard is titanium floating,prevent mucosity

The electronic equipment control the time ,denote the signal when finish

Adjust the pressure anytime,convenient,fast

The silicon pastern in the mother board can endure high temperature,not change the shape until it is 350℃centigrade

Double boxed: Each machine is double-boxed

Versatile operation: Large (15" x 15") element allows transfers onto many flat surfaced items, such as fabric, metal, wood, ceramic & glass.

Easy to use: Arrives fully assembled and ready to use (printer and paper not included).

Clamshell configuration: Space saving design.

Digital LCD timer: Preset desired time and an audible alarm will sound when time is complete.

Digital LCD temperature control: Set the desired temperature and element will stop heating when preset temperature is reached.

Full-range pressure-adjustment knob: Easy to access, top-mounted control. This allows the pressure to be adjusted according to the thickness of the material you're transferring to.

Parallel arm handle with ergonomic foam-grip: Minimizes handle flex when opening and closing the machine, unlike some single-arm machines that tend to twist and torque. Comfortable for everyday-use and long production runs.

Adjustable multi-spring balancer: Handle applies closing pressure through a spring and pressure-plate system, which allows pressure to be more evenly distributed across the entire platen when clamshell is closed.

Upgraded lower platen: 1/2" thick aluminum board; built-in structural support to maintain flatness. Removable and reversible hi-temp silicone pad; unlike glued-down pads, if pad ever becomes damaged, simply flip over and use the other side. Elevated lower platen allows room for t-shirts to be easily placed into and removed from machine.

Rigid steel frame: Machine is heavy-duty, commercial-grade, super stable and built to last.

Specifications:

Color: Black

Voltage:110 V

Power:1800 W

Temperature range:up to 750F

Time control:0-999s

Baking area:15 x 15 inch（38 x 38 cm）

Package Size:29 x 19 x 17 inch

Weight:53 lbs

Package include: 1 x heat press machine 1 x teflon sheet for heat press

Package included:

Fully-assembled machine

Pre-installed teflon-coated element

Removable and reversible hi-temp silicone pad

Operating instructions

Notice:

Force does not exceed 66 lbs, otherwise the handle can be distorted
