Identificador: 273 Abierta

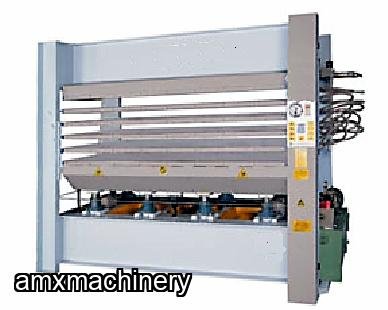

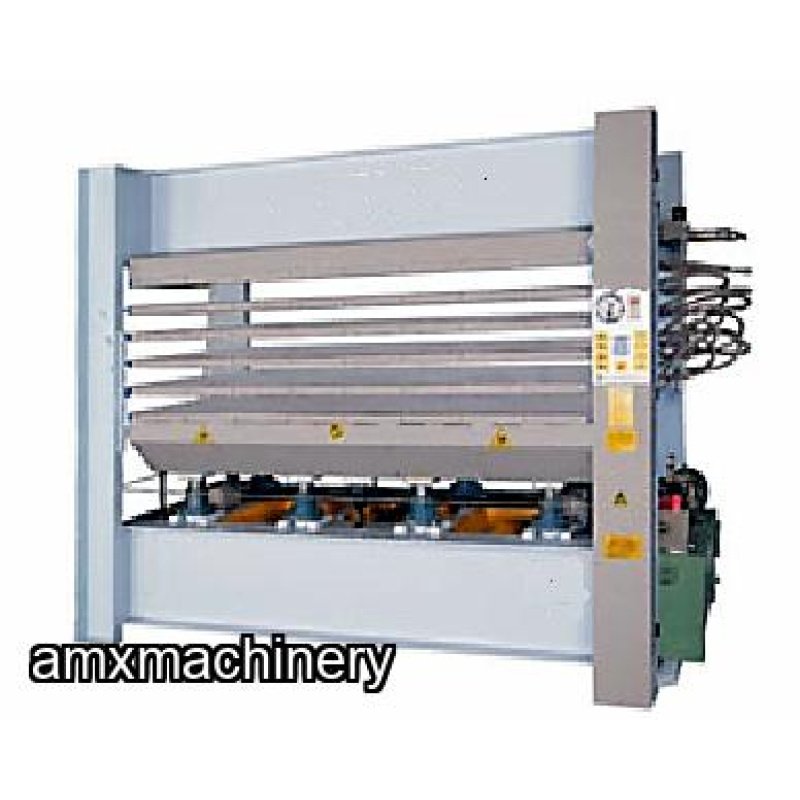

PRENSA CALIENTE 3 SECCIONES

AMXmachinery

Contacte al Vendedor

Descripción

PARTE # 2TA-PT-48-3 – PRENSA CALIENTE – 3 SECCIONES – PLATOS 98" x 51" x 1.5"

Nueva con garantia

Heavy gauge sheet material frame.

Large hydraulic piston.

Easy operation.

SPECIFICATIONS	PT-48CP	PT-510CP	PT-HP48-3	PT-HP48-5
Table Size	96" x 49"	121" x 61"	98" x 51" x 1.5"	98" x 51" x 1.5"
Max. Working Heigth	39"	39"	39"	39"
Max. Pressure Capacity	60 Tons	60 Tons	120 Tons	120 Tons
Press Moving Speed	5 FPM	5 FPM	5 FPM	5 FPM
Hydraulic Pump Motor	7.5 HP	10 HP	10 HP	10 HP
Heating Power	~	~	48 KW	54 KW
Distance Between Layers	~	~	4"	4"
Total of Layers	~	~	3	5
Machine Size	119" x 49" x 116"	145" x 49" x 116"	153" x 67" x 87"	153" x 67" x 99"
Machine Weight	5700 LBS	7400 LBS	16500 LBS	20900 LBS

Pago y Devoluciones

Forma de pago: Transferencia/Deposito Bancario
