Identificador: 3091
Abierta
Descripción

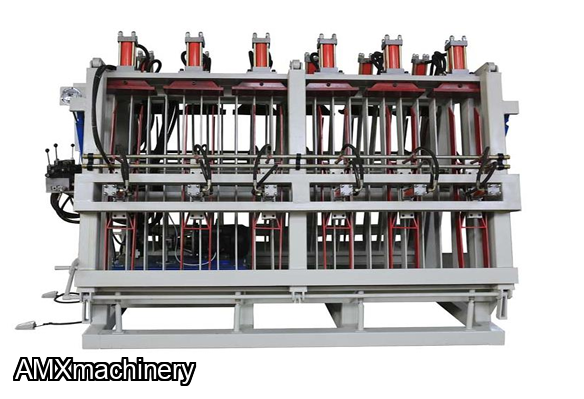

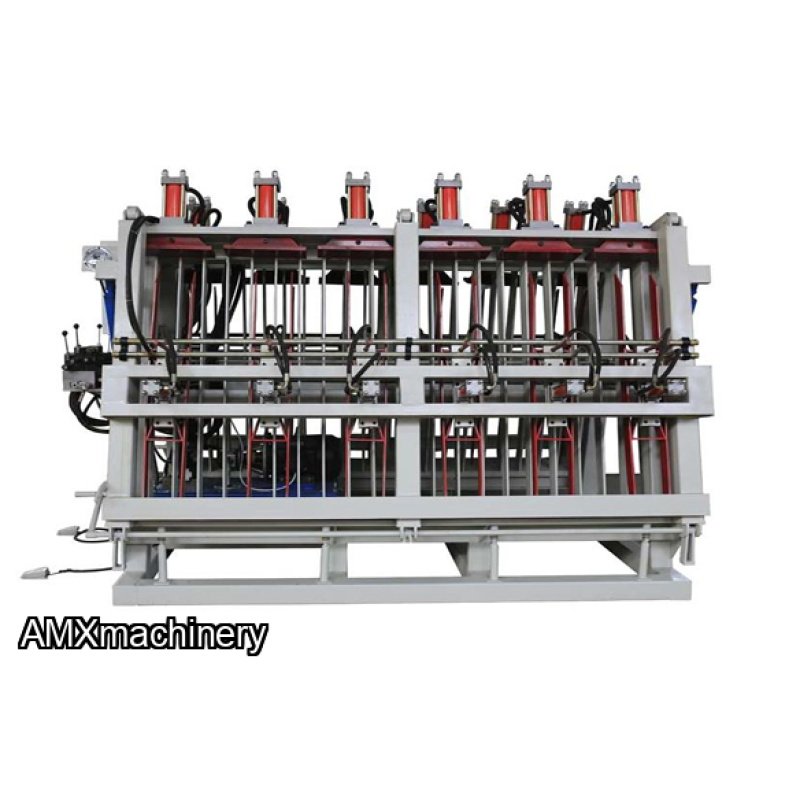

PARTE: 3HO-MH2500 - PRENSA CON SARGENTOS HIDRAULICOS
Slash Assembly Time
Process 1300×2500mm panels in 90 seconds (vs. 8+ mins manual)
No forklift needed – integrated lifting cylinders
Model | 1 | 2 | 3 | 4 |
Max. Working Length(mm) | 2500 | 4600 | 5200 | 6200 |
Max. Working Width(mm) | 1300 | 1300 | 1300 | 1300 |
Max. Working Thickness(mm) | 150 | 150 | 150 | 150 |
Top Cylinder Diameter(mm) | 80 | 80 | 80 | 80 |
Top Cylinder Amount on Each Side | 6pcs | 12pcs | 14pcs | 16pcs |
Side Cylinder Diameter(mm) | 40 | 40 | 40 | 40 |
Side Cylinder Amount on Each Side | 6pcs | 12pcs | 14pcs | 16pcs |
Side Lifting Cylinder Diameter(mm) | 63 | 63 | 63 | 63 |
Side Lifting Cylinder Amount | 2pcs | 4pcs | 4pcs | 4pcs |
Motor Power(kw) | 5.5 | 5.5 | 5.5 | 5.5 |
Weight(kg) | 3800 | 6800 | 7200 | 9000 |
Overall Dimension(mm) | 3100*2300*2320 | 5400*2300*2320 | 6000*2300*2320 |
