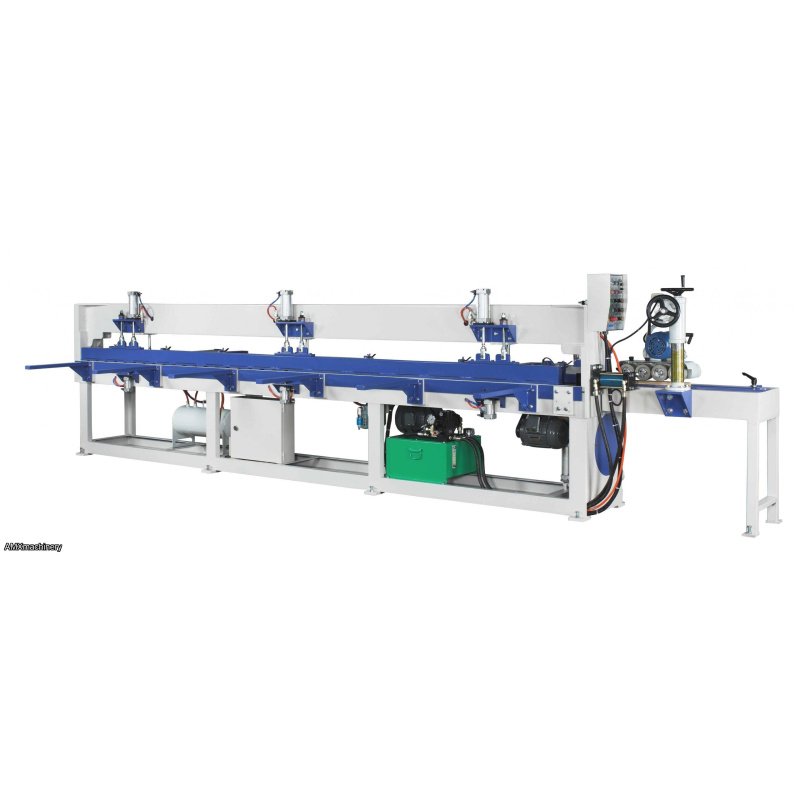

PARTE: 2TA-SFJ-4500A - PRENSA ENSAMBLADORA FINGER JOINT
Features:
Very efficient automatic machine that performs three functions:
Jointing of sectional sticks which have been glued
Cutting the jointed sticks to desired length
Final assembly is securely pressed by powerful hydraulic system
Then the jointed sticks be fed out regularly
Auto power feeder for fast feeding and auto stops at the desired length to be cut.
Furnished with cut-off saw as standard equipment for cutting workpieces to the length.
The maximum length of jointed stick is 16'.
Other sizes are available on request.
|
SPECIFICATIONS |
2TA-SFJ-4500A |
2TA-SFJ-4500C |
|
Max. Length of Joint |
181" |
181" |
|
Max. Width of Joint |
6" |
6" |
|
Max. Thickness of Joint |
3" |
3" |
|
Working Speed |
0 ~ 26 FT / Min |
0 ~ 90 FT / Min |
|
Cut-off Saw Speed |
3500 FPM |
3500 FPM |
|
Cut-off Saw Dia. |
12" x 1" Arbor |
12" x 1" Arbor |
|
Infeed Motor |
1/4 HP |
1/2 HP |
|
Hydraulic Pump Motor |
5 HP |
5 HP |
|
Cut-off Saw Drive Motor |
2 HP |
3 HP |
|
Machine Size (Lx W x H) |
227" x 48" x 60" |
286" x 57" x 60" |
|
N.W. |
3520 LBS |
4180 LBS |
|
G.W. |
4300 LBS |
4620 LBS |
