ID: 3130 Open

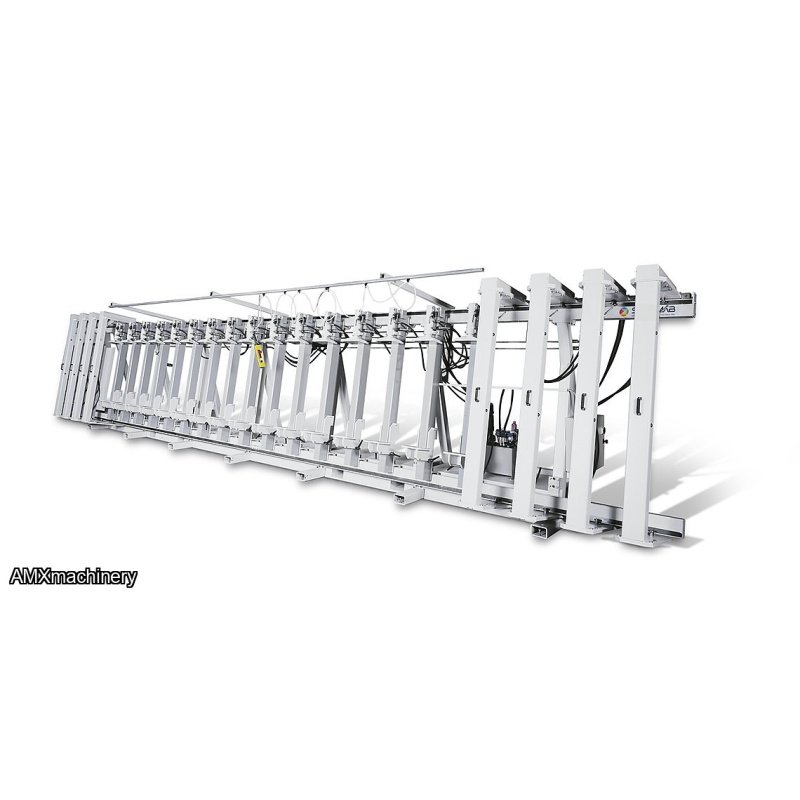

PRENSA HIDRAULICA PARA PEGAR
PRENSA HIDRAULICA PARA PEGAR

PRENSA HIDRAULICA PARA PEGAR

AMXmachinery1

Contact Seller
Description
PARTE: 4ST-SL2 - PRENSA HIDRAULICA PARA PEGAR

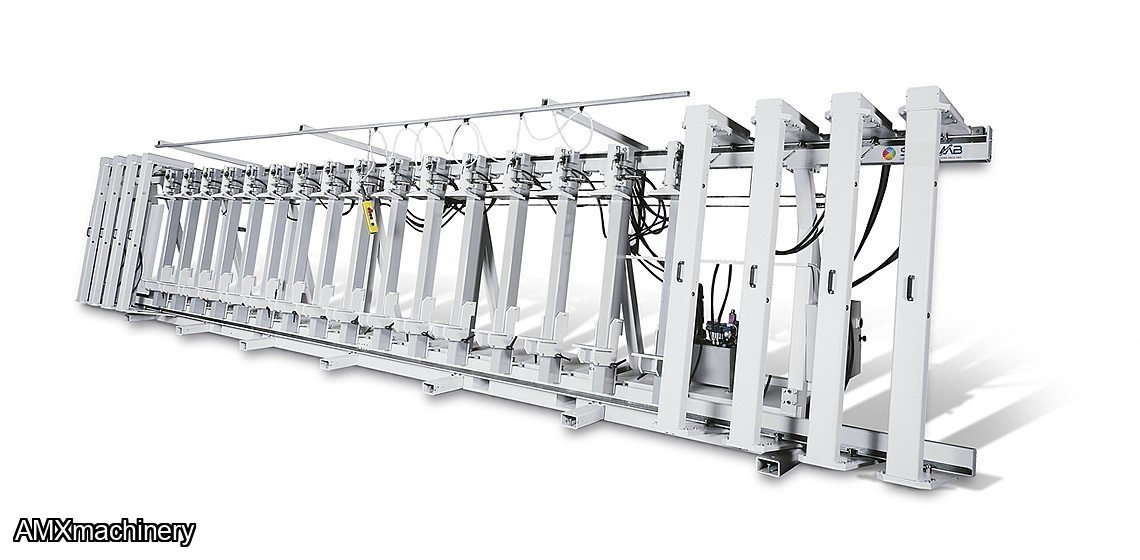

HYDRAULIC PRESS FOR LAMINATED BEAMS

CLASSICS FOR GLUING

Is an electro-hydraulic press for the production of structural laminated beams.

Its solid structure combined with its ease of setup and use make it the optimal solution

for the production of laminated beams and blockboard panels.

The working unit consists of cylinders and pressers equipped with independent opening/closing valves,

sliding front pressers and front loading and unloading thanks to the presser parking stations.

Wide range of configuration options to suit your working needs.


Technical specifications

Hydraulic power unit

  • kW 5,5 (HP 7,5)

Hydraulic cylinder control

  • sliding wall-mounted control panel

Vertical beam with cylinder

  • nr. 2 per meter fixed fissi (automatic hydraulic)

Cylinder thrust

  • 7200 kg

Front pressure bar

  • nr. 1 per meter sliding (automatic hydraulic)

Extra working length

  • option on demand

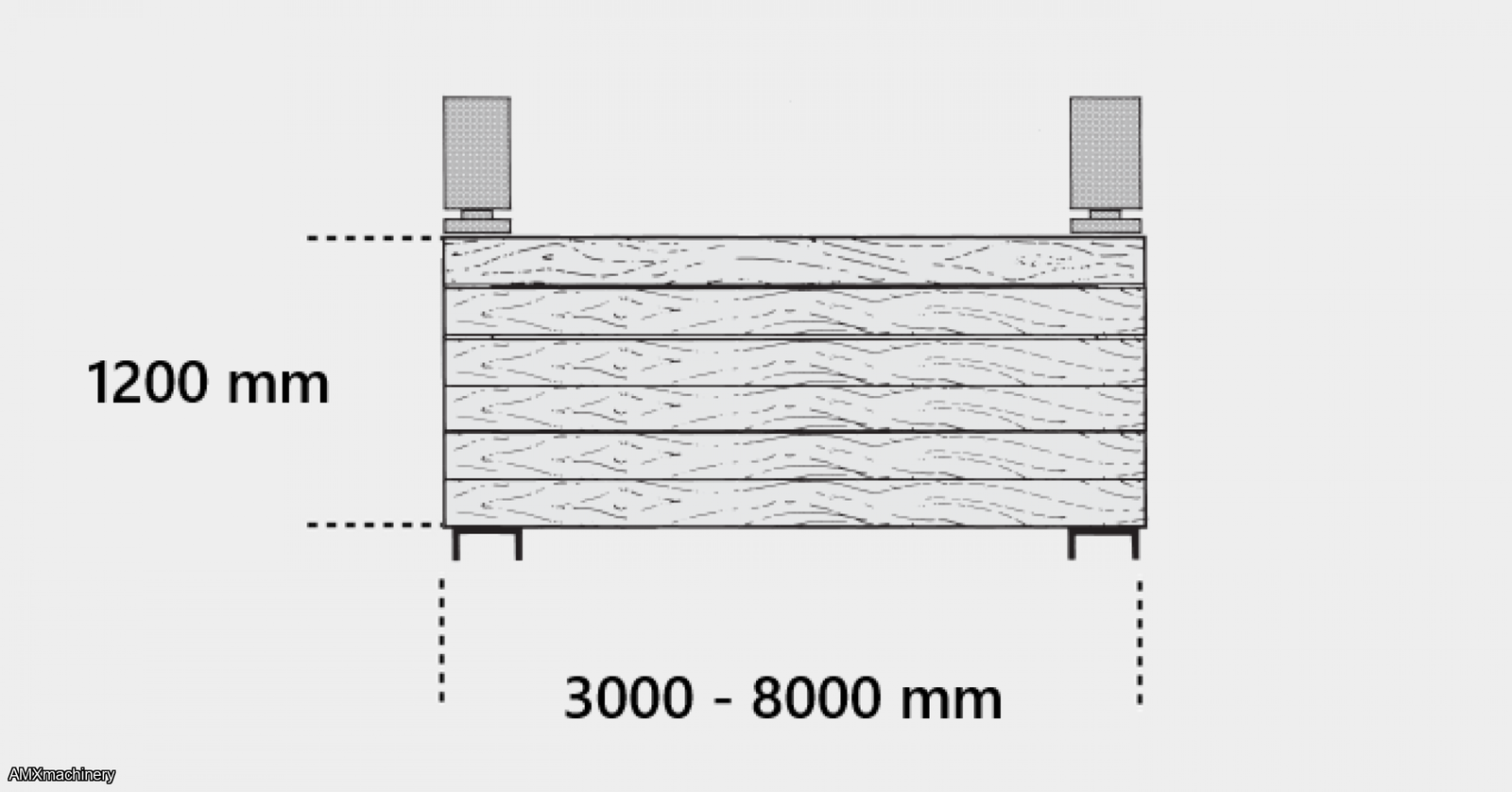

Maximum thickness of beam for bonding

  • 200 mm (250 mm option)
