PARTE: 4ST-SPECIAL - PRENSA PARA PUERTAS Y TABLEROS
HYDRAULIC PRESS FOR DOORS AND WINDOWS
CLASSICS FOR GLUING

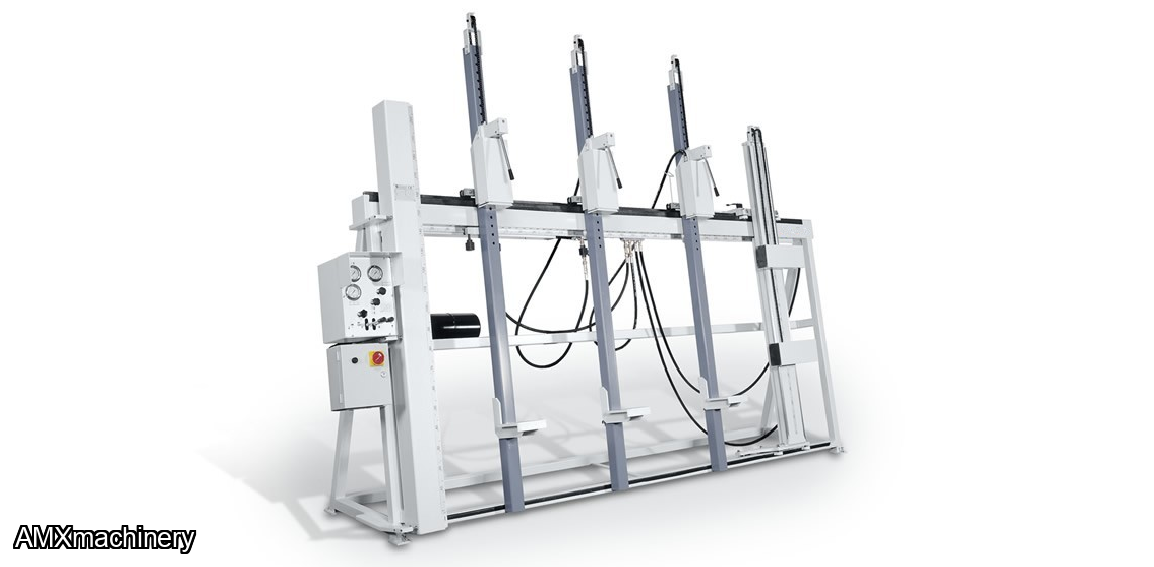

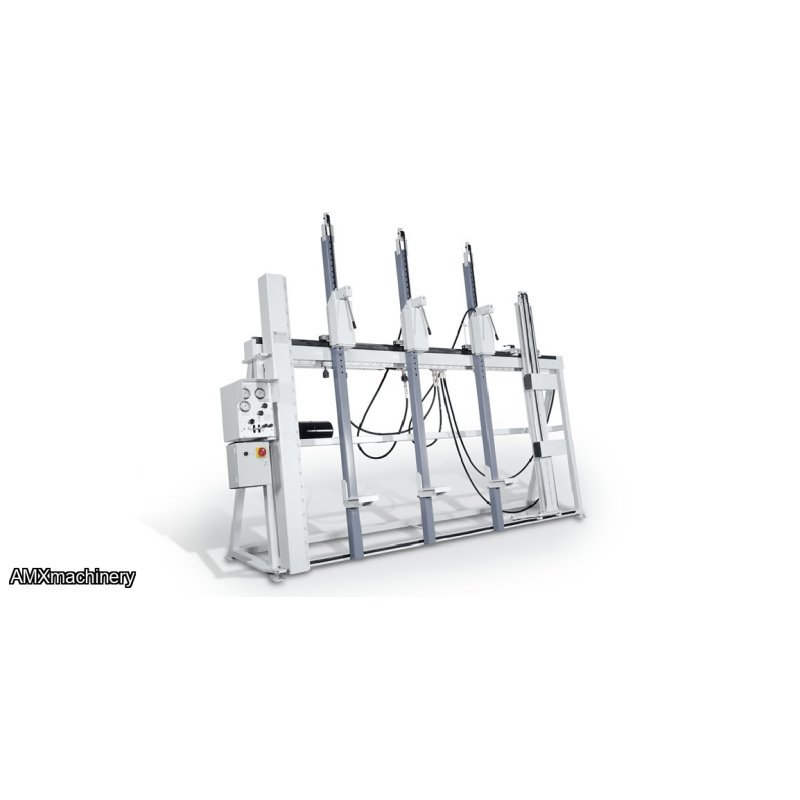

Is an electro-hydraulic press for gluing door and window frames.
Its solid vertical structure allows front loading, reducing and optimising space in the workshop.
The working unit consists of vertical and horizontal hydraulic cylinders, which are practical and functional for adjustment and positioning
according to the size of the frame to be glued.
Practical release and positioning system for the hydraulic cylinders, which are controlled and operated by a lever.
Independent pressure control. Sliding vertical uprights.
Technical specifications
Hydraulic power unit
- kW 1,1 (HP 1,5)
Hydraulic cylinder control
- nr. 2 lever
Vertical beam with cylinder
- nr. 3 sliding (automatic hydraulic)
Horizontal cylinders
- nr. 2 sliding (automatic hydraulic)
Cylinder thrust
- 2500 kg

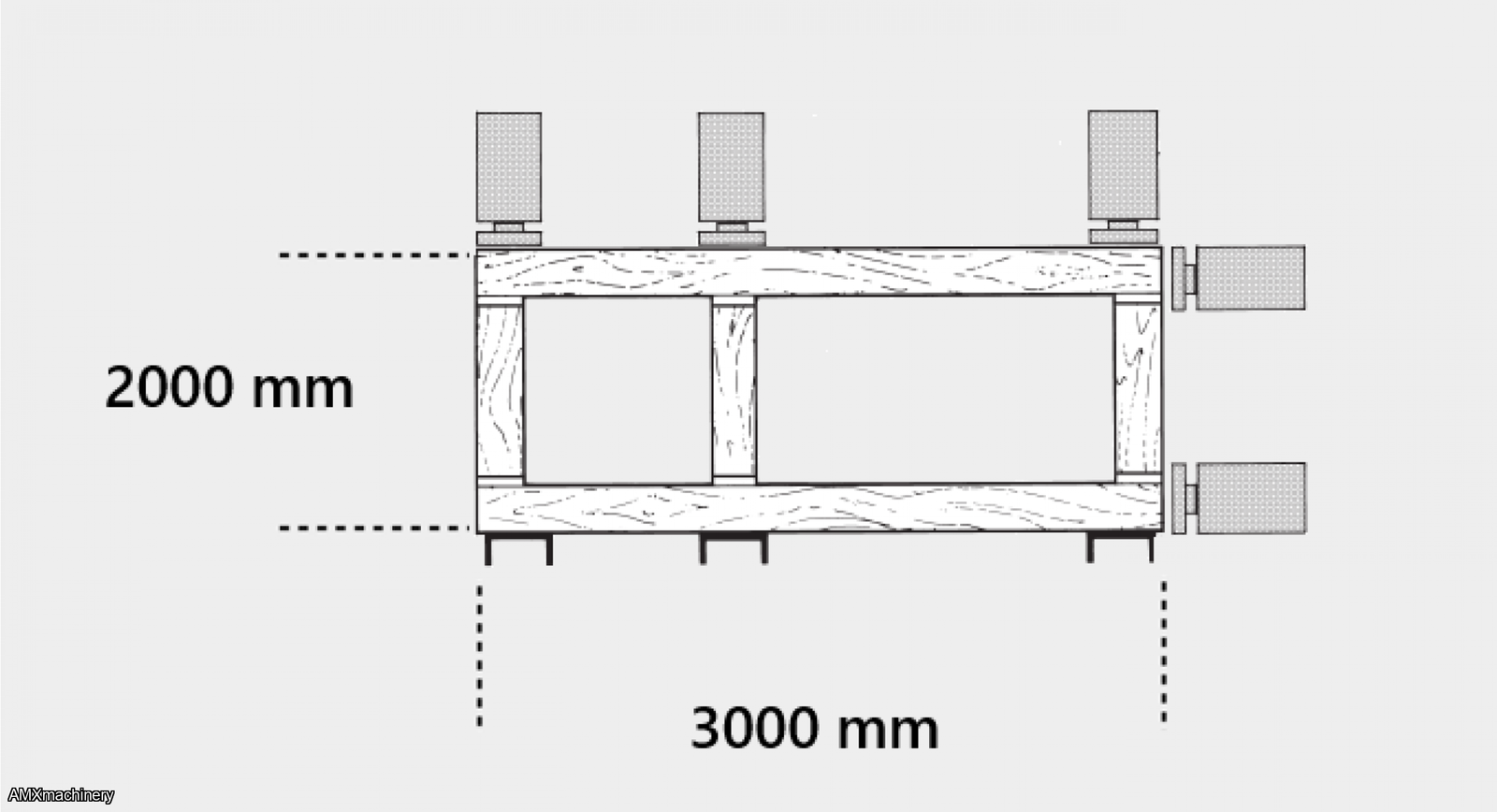

Extra working length and height
- option on demand
