ID: 1169
Open
Description

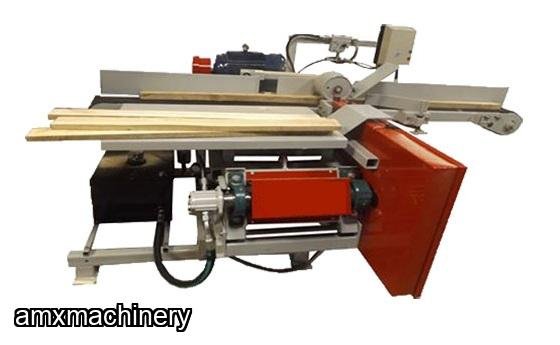

PARTE: 2FA-RE6X8 - REASERRADORA HORIZONTAL – 1 SIERRA – ANCHO 8”
NUEVA CON GARANTIA
The compact design and variable speeds allow it to fit into any operation.
The 6 x 8 Master is resaw is accurate and easy to adjust. Multiple head configurations are available up to 6 heads.
Standard Features
Air Tensioned Blade System
Enclosed Hydraulic System
Easy Height Adjustment
Machine Specs
Dimensions
Length: 84"
Width: 90"
Height: 48"
Feed Belt Height: 34"
Power
15 HP Electric Motor: 208/230/480/3/60 TEFC
Completely pre-wired motor starter with start/stop buttons and circuit overload protection
Specifications
4" Dust Connection (400 cfin)
Approx. 1400 lbs
Uses 15'1" Bands (3/4" to 1-1/4" Wide)
Top Mounted Roller Hold Down
Heavy Duty 2-7/16" Arbors & Bearings
20" Band Wheels
Self Contained Hydraulic System with Variable 0-120 Feed Per Minute Feed Speed
3" Tall Right Side Fence
Capacities
Board Width: up to 8"
Board Thickness: 1/4" - 6"
Board Length: Unlimited
Options
Power Options
20 HP Electric Motor
22 HP Honda Gas Motor
Line Shaft: Available Without Power Set to Run off Line Shaft
Single Phase 10 HP
Machine Options
Air Tensioned Hold Over Plate
Tailing Belt
Powered Hold Down
Soft Starts
Slave Heads
Take Away Roller
Taller Fences
System Options
Cant Sizer
Green Chain
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
