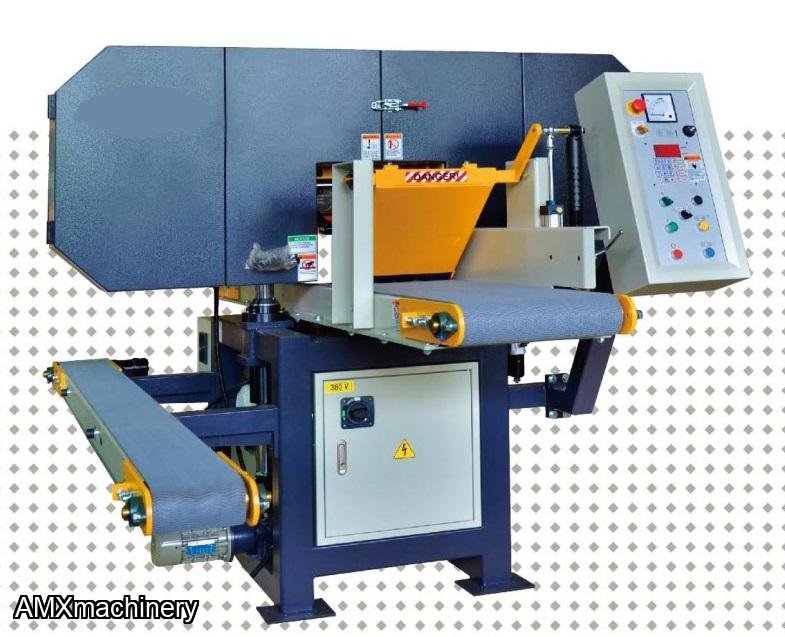

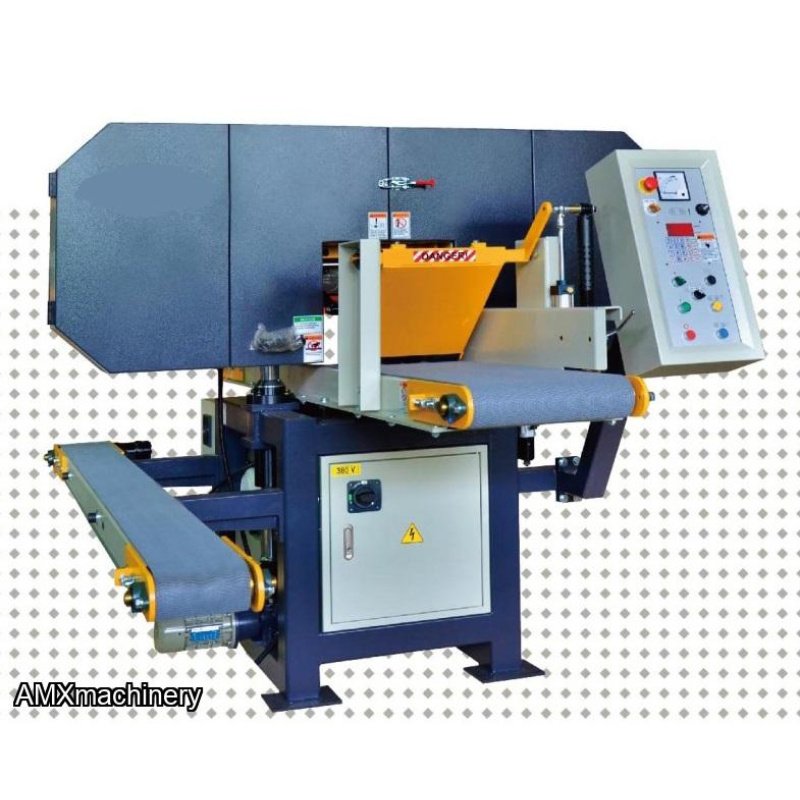

REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO

PARTE: 3HP-HP-400PB - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO

Nueva con garantía – Uso Rudo

Specification

1.With digital readout

2.Max. working size: 400mm(W) x 250mm(H)

3.Distance from blade to conveyor Table: 3-250mm

4.Conveyor belt size: 385mm(W) x 5470mm(L)

5.Saw wheel dimension: Φ28" x 2"(Thickness)

6.Max. infeed speed: 16M/min OPTIONAL: 25M/min.

7.Saw wheel motor: 30HP

8.Hydraulic pressure: 50-55kgs/cm2

9.Dust hood diameter: 4" x 2

10.Saw blade size: 180" x 2" (4570mm x 54mm)

11.Hydraulic system:

Motor 3HP / In-feed speed WP200 (WP400 for the slowest) / Out-feed speed WP160

12.Elevation motor: 1/4HP 6P

13.Packing dimensions with pallet: 2870 x 2260 x 2160mm /1750kgs

14.Machine N.W.: 1700kgs

15.With return conveyor: Belt size 185mm x 5470mm

16.With mist coolant system for saw blade

17.Controlling blade tension: Pneumatic boosting cylinder

18.With 30HP inverter

19.Saw kerf: 1.35mm

20._______Volt, _______Hertz
