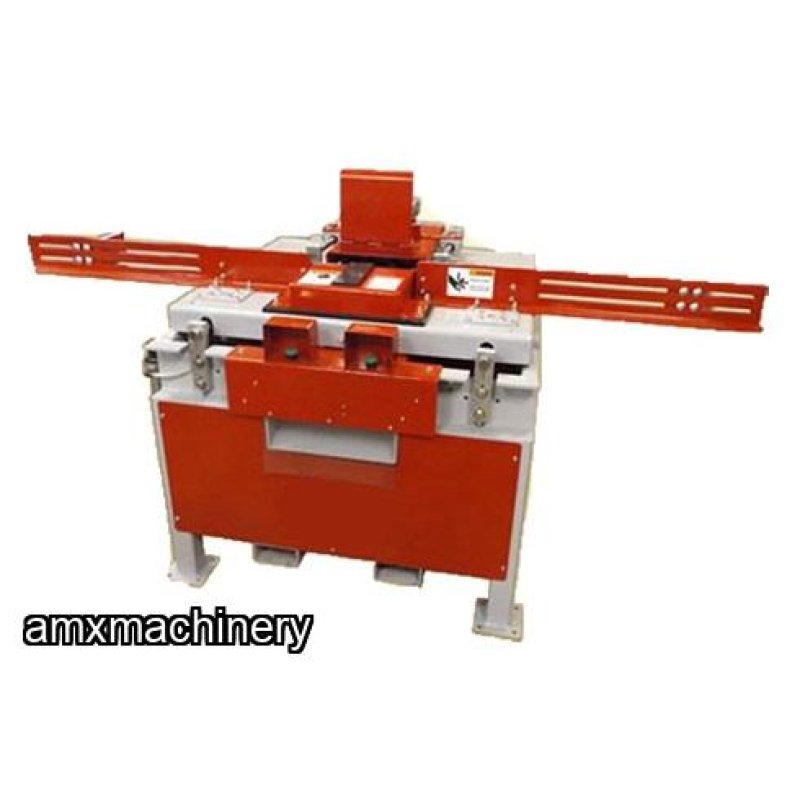

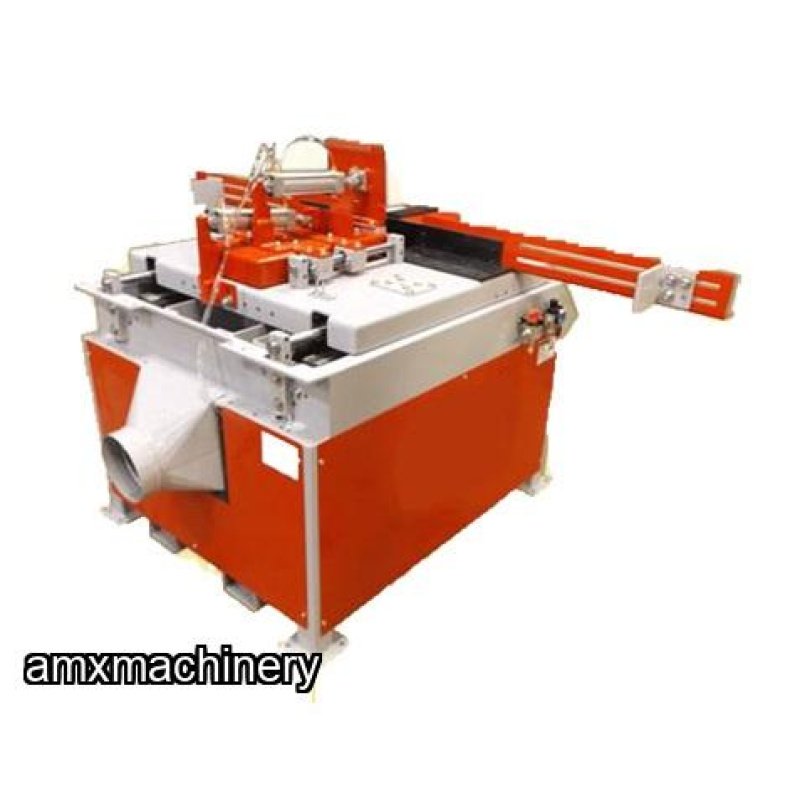

RESACADORA SENCILLA – 60” CAPACIDAD LARGO

PARTE: 2FA-NXL-48 – RESACADORA SENCILLA – 60” CAPACIDAD LARGO

NUEVA CON GARANTIA

HASTA 800 RESAQUES/HR

Standard Features

Cutter Head is Never Exposed

Table Moves w/Dual Air Rams Á Linear Bearings

Double Clamp System

Machine Specs

Dimensions

Length: 60"

Width: 90"

Height: 50"

Table Height: 37"

Power

20 HP Electric Motor: 208/230/480/3/60 TEFC

Completely pre-wired motor starter with start/stop buttons and circuit overload protection

Specifications

Arbor & Bearing Size: 2"

Approx. 2000 lbs

Table Linear Bearings Size: 1-1/4"

Clamp Linear Bearings Size: 1"

Hardened Linear Bearing Shafts

3/8" Thick Steel Table Top

3/8" Thick Steel Framing

8" Dust Ports: 5,000 CFM Recommended

Capacities

Material Width: up to 6"

Material Height: 4"(Standard)

Material Length: up to 60"(Standard)

Standard Notch: up to 9" wide

Adjustable Notch: up to 2-1/2" tall

Up to 800 Stringers Per Hour

Machine Specs

Air System

Operating Pressure: 100 PSI, 20 CFM

Air Cylinder Bore Size: 2"(x4 Cylinders)

Air System Includes: Dual Hand Safety Controls, Lockout Valve, Regulator, Pressure Relief, Reservior, Table Speed Controllers, & Mechanical Valves

Options

Machine Options

Cutter Teeth for Recycled Material

Longer & Taller Capacities

Different Notch Widths

Stand Alone Control Station

Stringer Stacking Racks

Caster Feet
