ID: 1028
Open
Description

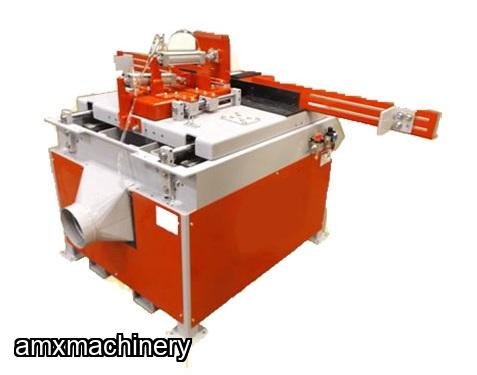

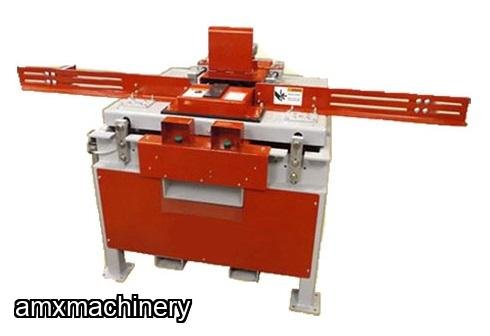

PARTE: 2FA-NXL-48 – RESACADORA SENCILLA – 60” CAPACIDAD LARGO
NUEVA CON GARANTIA
HASTA 800 RESAQUES/HR
Standard Features
Cutter Head is Never Exposed
Table Moves w/Dual Air Rams Á Linear Bearings
Double Clamp System
Machine Specs
Dimensions
Length: 60"
Width: 90"
Height: 50"
Table Height: 37"
Power
20 HP Electric Motor: 208/230/480/3/60 TEFC
Completely pre-wired motor starter with start/stop buttons and circuit overload protection
Specifications
Arbor & Bearing Size: 2"
Approx. 2000 lbs
Table Linear Bearings Size: 1-1/4"
Clamp Linear Bearings Size: 1"
Hardened Linear Bearing Shafts
3/8" Thick Steel Table Top
3/8" Thick Steel Framing
8" Dust Ports: 5,000 CFM Recommended
Capacities
Material Width: up to 6"
Material Height: 4"(Standard)
Material Length: up to 60"(Standard)
Standard Notch: up to 9" wide
Adjustable Notch: up to 2-1/2" tall
Up to 800 Stringers Per Hour
Machine Specs
Air System
Operating Pressure: 100 PSI, 20 CFM
Air Cylinder Bore Size: 2"(x4 Cylinders)
Air System Includes: Dual Hand Safety Controls, Lockout Valve, Regulator, Pressure Relief, Reservior, Table Speed Controllers, & Mechanical Valves
Options
Machine Options
Cutter Teeth for Recycled Material
Longer & Taller Capacities
Different Notch Widths
Stand Alone Control Station
Stringer Stacking Racks
Caster Feet
