ID: 294 Open
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M
ROUTER CNC - MODEL M

ROUTER CNC - MODEL M

AMXmachinery

Contact Seller
Description

PARTE: 2LO-M-0408 - ROUTER CNC - MESA 4' X 8' - MOTOR 3 HP - CON MESA DE VACIO

PARTE:  2LO-M-0510 - ROUTER CNC - MESA 5' X 10' - MOTOR 5 HP - CON MESA DE VACIO

 All “SERVO MOTOR” driving system

PC base CNC controller is set up to accept standard G code programming formats along with on board conversational applications.

User friendly IC Control System powerful closed positioning loop software with Ethernet interface for data transfer from PC.

All axis are driven by brushless type high torque AC servo motors

Optional CAD/CAM system can create and edit part programs then send to machine for cutting easily. DXF files can be imported, modified and edited from here to create a G code.

DNC is no longer required as the PC directly stores all part programs in a text editable file.

Machine designed ready for 3-D cutting usage and superior performance.

Moving gantry construction for space saving.

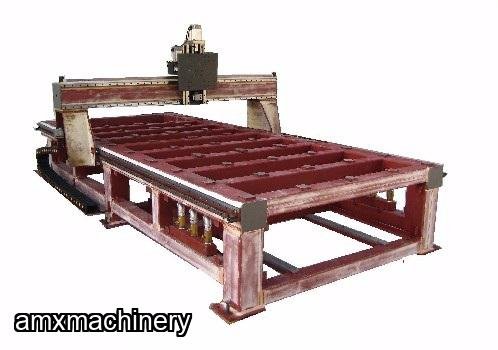

The rigid steel frame construction has been stress relieved prior to finish machining to provide repeatability and accuracy.

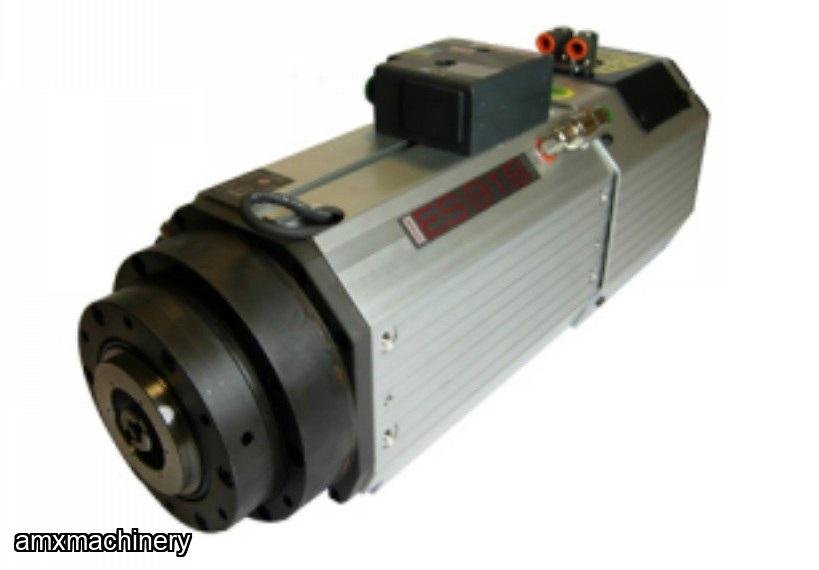

The HSD spindle uses CP4 DB bearings with a dust free design. The Heavy-duty fan cooling system forces air through the spindle to assist in trouble free operation.

Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.

The X & Y axis are equipped with a precision rack & pinion driving system

The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

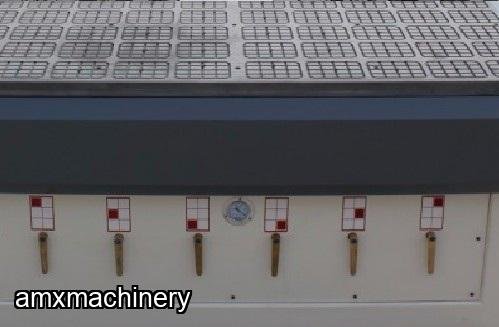

Special design 6 zone vacuum table surface for powerful hold down

Pneumatic slide dust hood and central lubrication to extend the life of the linear guide ways and highest accuracy.

”I” series machine comes with mobile pendant control panel for operator convenience.

MODEL NO.

P-408

M-408

M-510

I-408

I-510

TABLE SIZE

49” X 97”

49” X 98”

61” X 121”

49” X 98”

61” X 122”

MAX. WORKING SIZE







X AXIS

48”

49”

61”

50”

62”

Y AXIS

97”

97”

121”

98”

122”

Z AXIS

4”

6”

6”

8-1/2”

8-1/2”

RAPID SPEED







X AXIS

1200 IPM

1400 IPM

2000 IPM

Y AXIS

1200 IPM

1400 IPM

2000 IPM

Z AXIS

800 IPM

1000 IPM

1400 IPM

SPINDLE (AIR COOLING)

ER-32 Collet

Quick Release

Quick Release

SPINDLE POWER

5.5 KW

8.8 KW

8.8 KW

SPINDLE (RPM)

MAX 18,000

MAX 24,000

MAX 24,000

TOOL HOLDER

NA

ISO 30

ISO 30

TOOL COLLET

ER-32

ER-32

ER-32

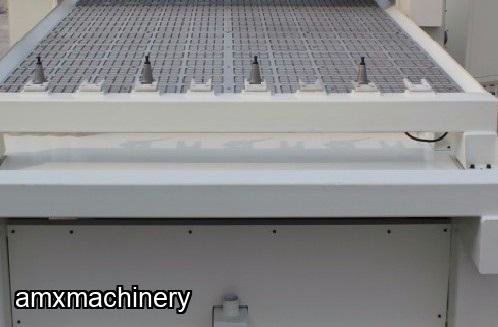

TOOL CHANGE (ATC)

NA

8 Tools Linear

8 Tools Linear

AXIS DRIVING MOTOR

AC SERVO

AC SERVO

AC SERVO

PC CONTROLLER

IC

IC

IC

VACUUM ZONE

4

4

6

6

6

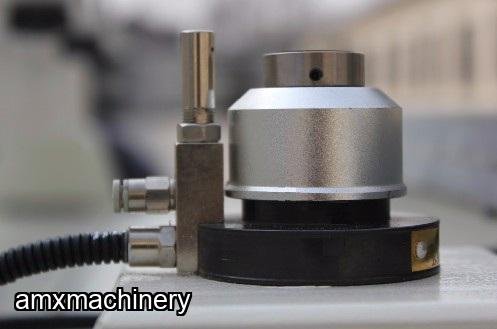

AUTO TOOL LENGTH

NA

OPT

YES

POWER (NO PUMP) 3PH

220V 30 AMP

220V 30 AMP

220V 45 AMP

AIR CONSUMPTION 90PSI

15 CFM

15 CFM

15 CFM

DUST PORT

5” X 1

5” X 1

5” X 1

MPG HAND WHEEL

OPTIONAL

OPTIONAL

OPTIONAL

PNEUMATIC STOP

OPTIONAL

OPTIONAL

OPTIONAL

VACUUM PUMP / BLOWER

OPTIONAL

OPTIONAL

OPTIONAL

NESTING SOFTWARE

YES

YES

YES

CAD/CAM SOFTWARE

OPTIONAL

OPTIONAL

OPTIONAL

Payments & Returns
Payment Methods
Visa/Mastercard/American Express, Transferencia/Deposito Bancario
