Description

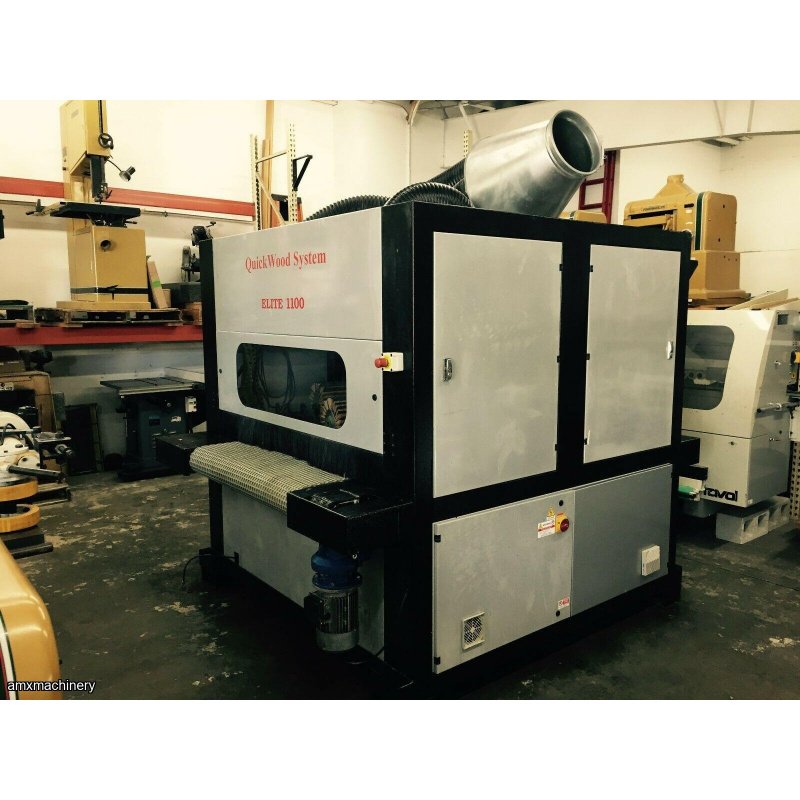

PART: 12052-E – SANDER QUICKWOOD ELITE PRO1100
Machine has been cleaned & checked.
240 Volt 3-Phase
Complete with dust hose & manifold
QUICKWOOD ELITE PRO 1100
* MAX WIDTH OF WORKPIECE...43"
* MAX HEIGHT OF WORKPIECE...3.9"
* MAX LENGTH OF WORKPIECE...INFINITE
* LINEAR SPEED OF BELT...2-12 M/MIN (6-36 FT/MIN)
* ROTATIONAL SPEED OF BRUSH CAROUSEL...3-16 G/MIN
* ROTATIONAL SPEED OF BRUSH SPINDLES...300-1150 G/MIN
* (4) DUST EXTRACTION OUTLETS (170MM DIA / EA)
* ACOUSTIC INSULATION...THIS SANDER IS EQUIPPED WITH TURBOFANS FOR HOLDING THE WORKPIECE BY MEANS OF A VACCUM AND ARE FITTED WITH CLOSED CELL FOAM SOUND DEAFENING PANELS ATTACHED TO THE BOTTOM PANELLING, IN ORDER TO REDUCE THE NOISE LEVEL.
YEAR 2006
PHASE 3 PHASE
VOLTAGE 220 VOLT
ESTIMATED DIMENSIONS 98" X 80" X 83"H
ESTIMATED WEIGHT 5,000 LBS
