Descripción

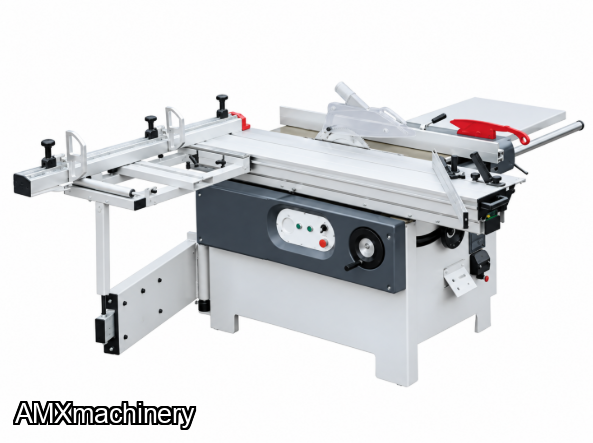

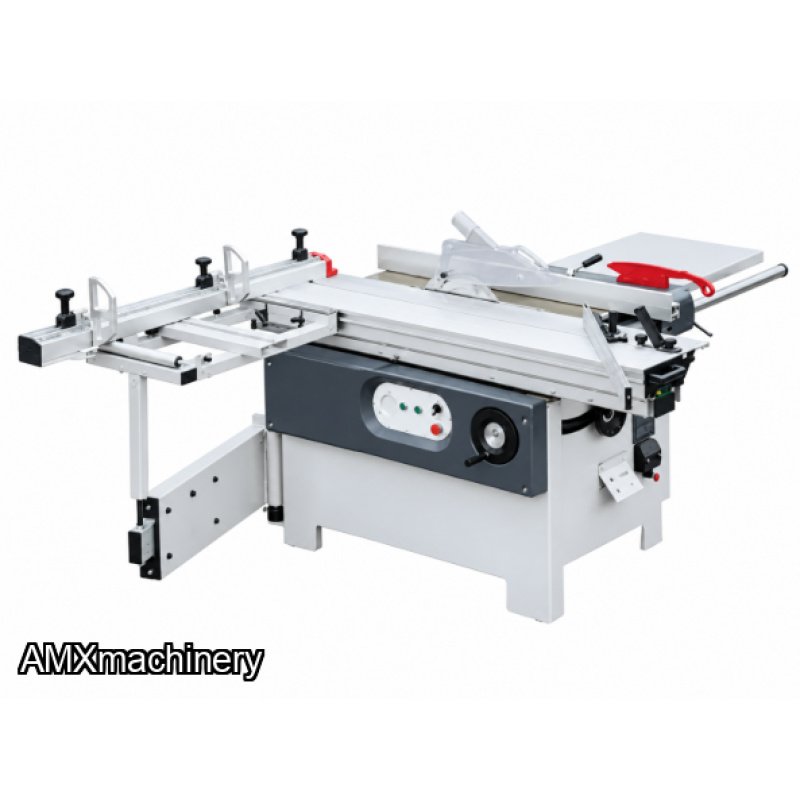

PARTE: 3HO-MJ6116 - SIERRA DE PANELES 1600MM
The sliding table saw for longitudinal, transverse and angular cutting of panel materials (MDF, fibreboard, chipboard and glued panels) faced and laminated, as well as blanks made of solid wood, with preliminary trimming of the lower edge to prevent chipping. It is possible to cut blanks individually or in batches, as well as to tilt the saw unit up to 45° in the vertical plane.
| Table Guide Length*Width | 1600mm * 375mm |
| Max. Cutting Height at 90° | 80mm |
| Main Spindle Diameter | 30mm |
| Main Saw Diameter | 300mm(Optional) |
| Main Saw Speed(r.p.m) | 4000/6000 |
| Motor Power(Main+Scoring) | 3kw + 0.75kw |
| Scoring Spindle Diameter | 20mm |
| Scoring Saw Diameter | 120mm |
| Scoring Saw Speed(r.p.m) | 8000 |
| Cross Cut Fence Length | 1750mm |
| Rip Cut Guide Size | φ40*1500mm |
