Descripción

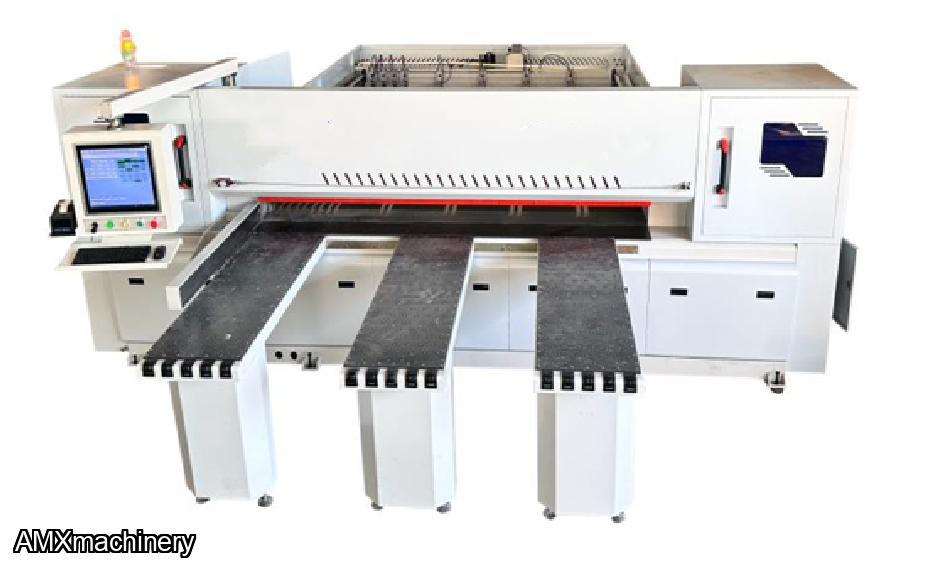

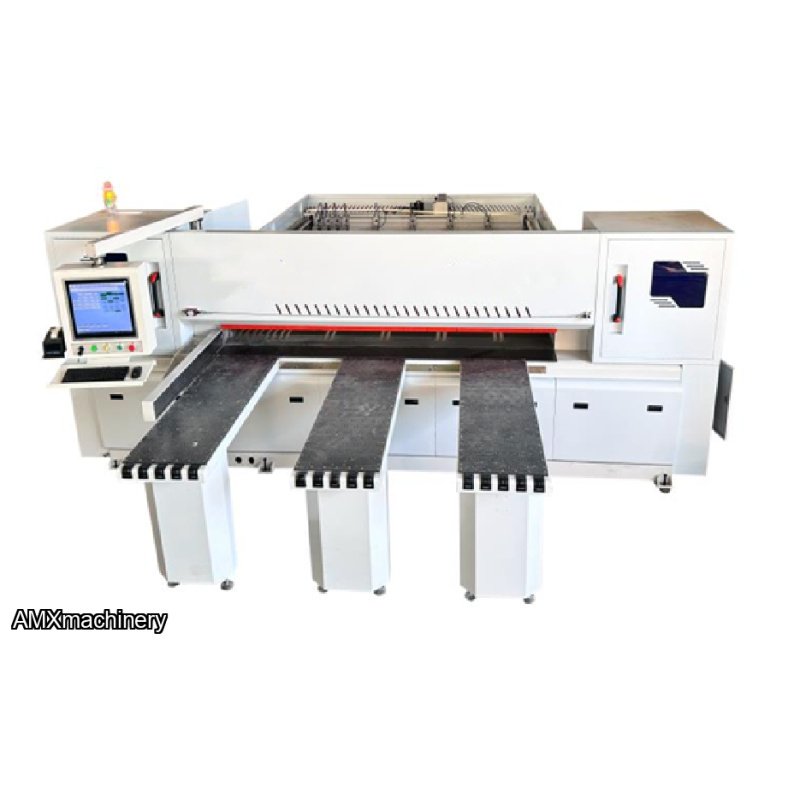

PARTE: 3HO-HT330 - SIERRA DE PANELES CNC
Designed for high-quality batch cutting of laminated chipboard and fibreboard.
| Cutting Length(mm) | 2800 | 3300 | 3800 |
|---|---|---|---|
| Cutting Thickness(mm) | 90 | ||
| Main Blade Diameter(mm) | φ400 | ||
| Main Shaft Diameter(mm) | φ30 | ||
| Main Blade speed(rpm) | 4800 | ||
| Scoring Blade Diameter(mm) | φ180 | ||
| Scoring Shaft Diameter(mm) | φ30 | ||
| Scoring Blade speed (rpm) | 6500 | ||
| Saw Group Forwarding speed(m/min) | 0~100 | ||
| Saw Group Backwarding Speed (m/min) | 60 | ||
| Feeding Speed(m/min) | 60 | ||
| Main Saw Motor Power(kw) | 16 | ||
| Driving Motor Power(kw) | 3 | ||
| Feeding Motor Power(kw) | 1.5 | ||
| High Pressure Air Blower(kw) | 2.2 | ||
| Air pressure(Mpa) | 0.5-0.6 | ||
| N.W.(kg) | 3900/4260/4860 | ||
| Overall size(mm) | 5990x5200x1800/6590x5900x1800/6590*6400*1800 | ||
