Descripción

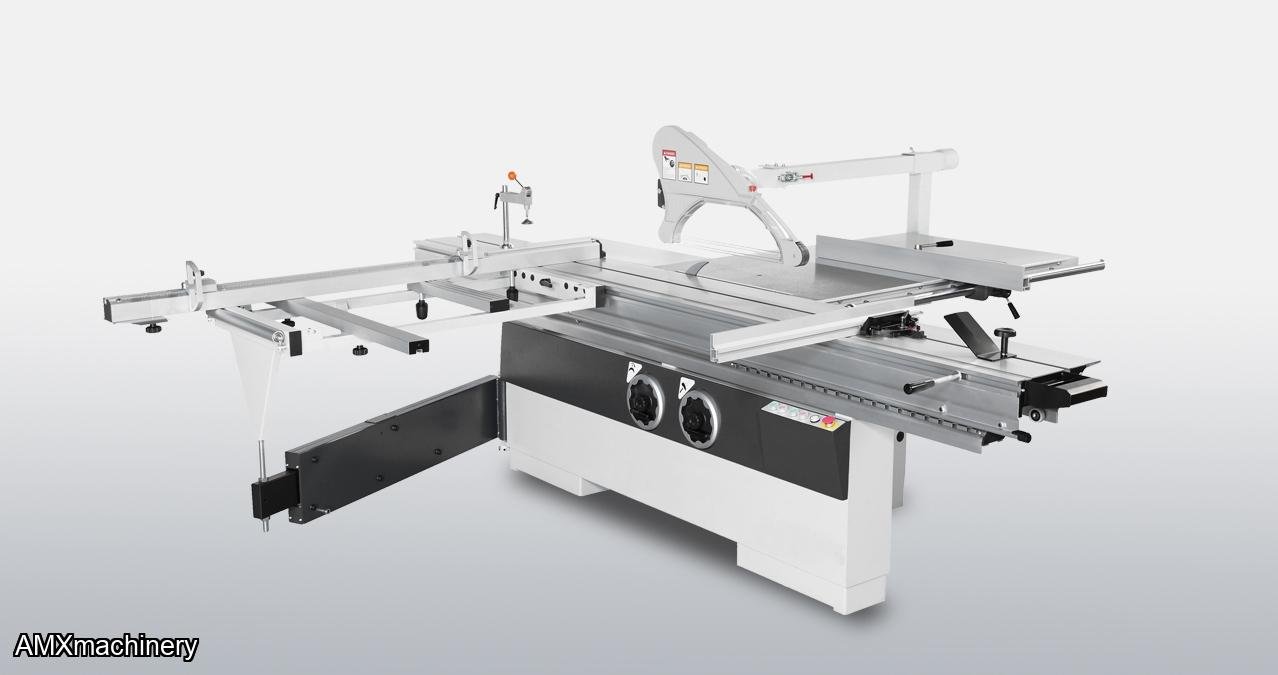

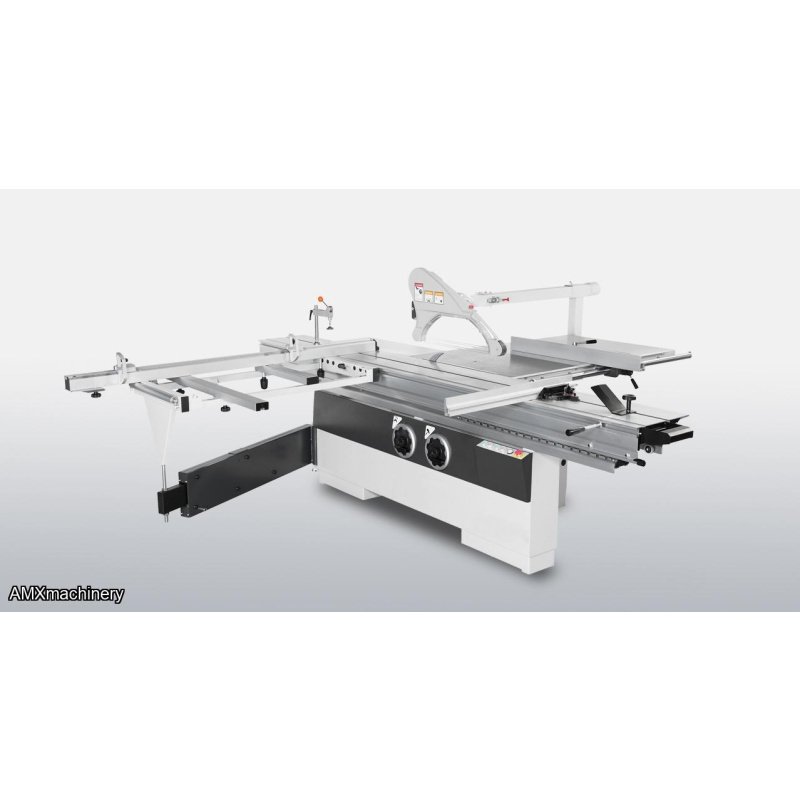

PARTE: 2CK-D405M-8

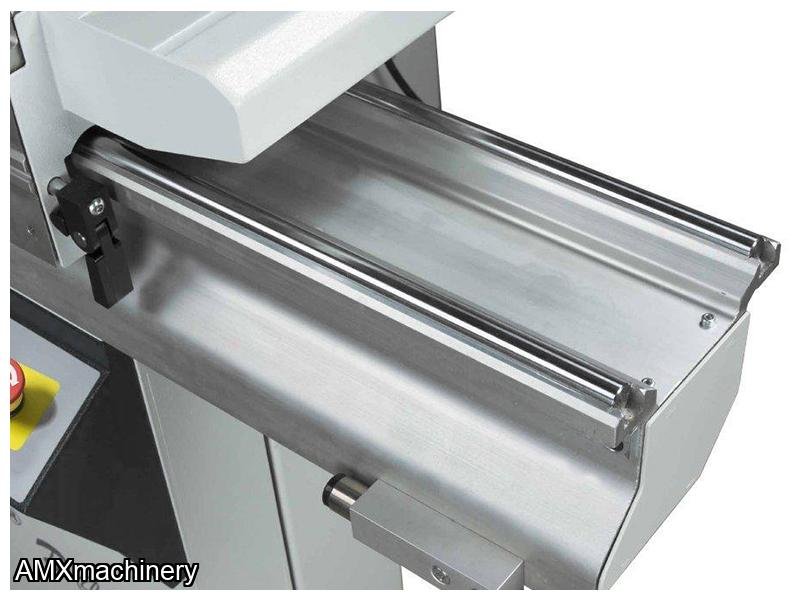

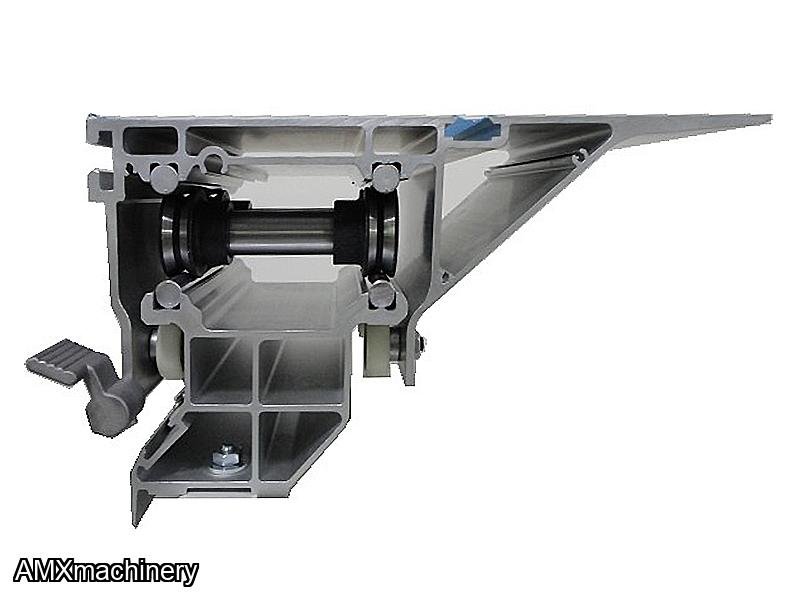

- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement

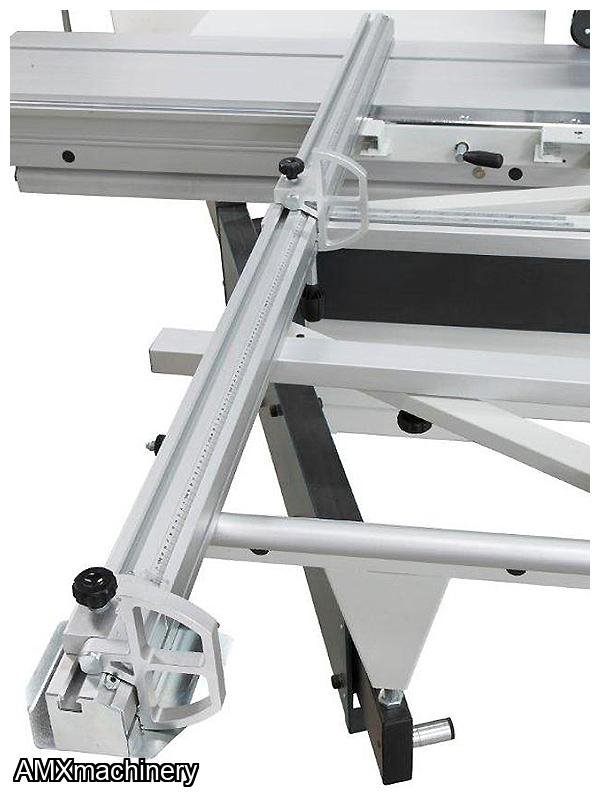

- Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
- Manual blade rise, fall, and tilting with convenient pointer for blade angle display

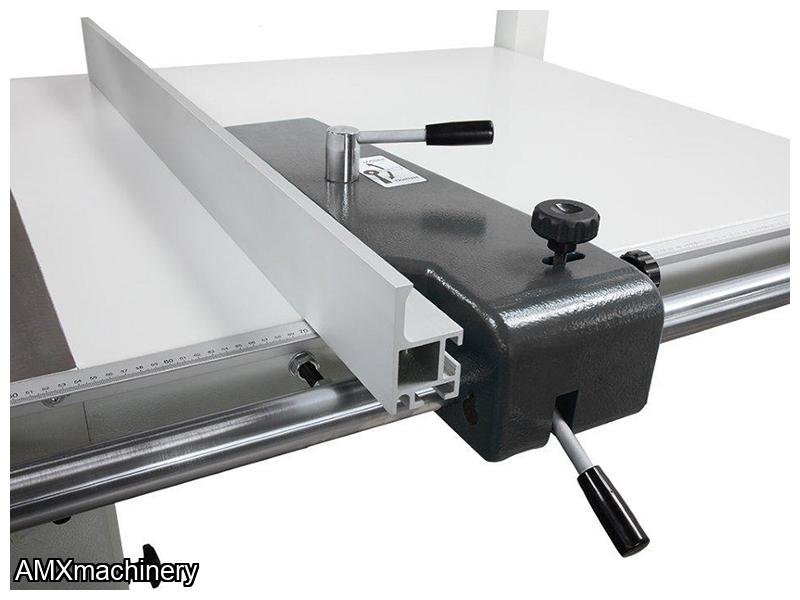

- Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob

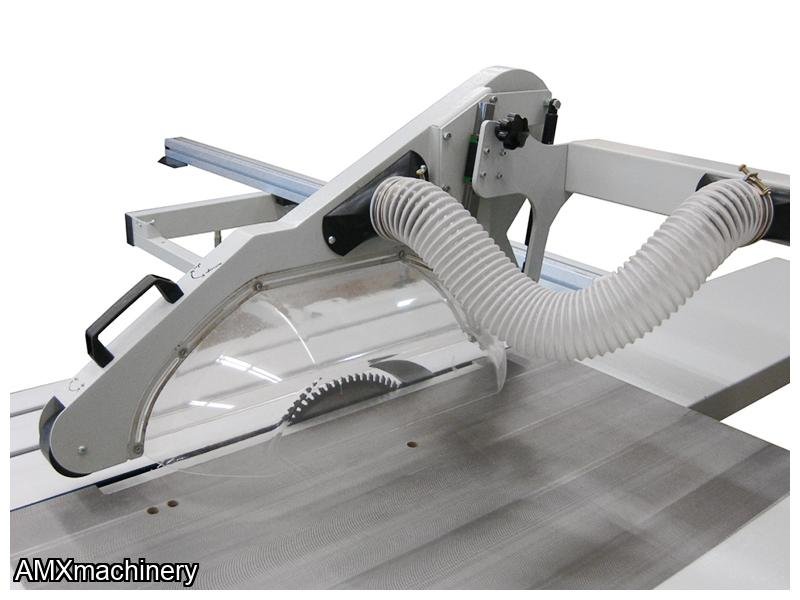

- Overarm safety guard with quick change system for changing between straight and bevel cutting guards
KEY ADVANTAGES
- Powerful 7 ½ HP main motor for 3 Phase or 5 HP main motor for Single Phase, with separate 1 HP scoring motor
- Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Dual inch and metric scales for both rip and crosscut fences
- Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience
- Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included

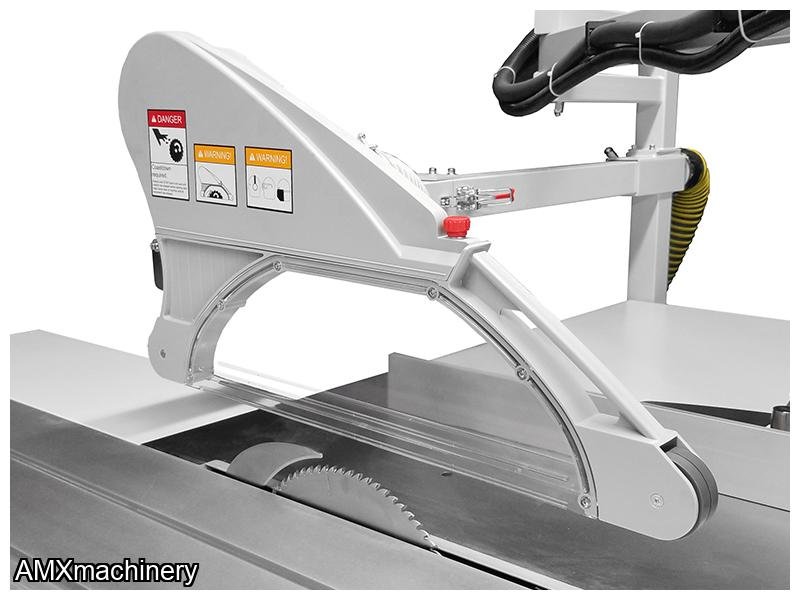

- Overhead saw blade guard with built in dust port included (CE-type)
|
|
INCH |
METRIC |
|
Sliding table dimension |
102.4″ x 14.9″ |
2600 x 378 mm |
|
Cast iron table |
21.6″ x 35.3″ |
548 x 896 mm |
|
Extension table (rear) |
37.5″ x 35.3″ |
952 x 896 mm |
|
Extension table (front) |
12.6″ x 32.7″ |
320x 830 mm |
|
Table size |
59″ x 68″ |
1500 x 1726 mm |
|
Round rail |
1.97″ |
50mm |
|
Maximum main saw blade dia. |
16″ |
400 mm (16″) |
|
Main saw bore |
30mm |
|
|
Max. cutting height at 90° (355mm) |
4.13″ |
105 mm |
|
Max. cutting height at 45° (355mm) |
2.76″ |
70mm |
|
Main motor power |
7.5 HP (3ph) / 5HP (1ph) |
5.5 kW (3ph) /3.7 kW (1ph) |
|
Main blade speed (3) |
3000/4000/5000 RPM |
|
|
Scoring saw blade |
120 mm |
|
|
Scoring saw blade bore |
20mm |
|
|
Scoring blade motor power |
1 HP |
0.75 kW |
|
Scoring blade speed |
8000 RPM |
|
|
Cutting width |
51.2″ |
1300 mm |
|
Cutting width adjustment |
Manual |
|
|
Main saw blade tilting adjustment |
Manual (0°~45°) |
|
|
Main saw height adjustment |
Manual |
|
|
Scoring saw adjustment |
Manual |
|
|
Dust ports (machine / guard) |
4.72″ / 2.5″ |
120mm / 64 mm |
|
Machine total weight |
1612 lbs. |
733 kgs |
|
Electrics |
230/3/60 = 26.2 Full Load |
|
|
Electrics |
230/1/60 = 36 Full Load Amps |
|
