PARTE: 2CK-C14RS
Is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C14RS can produce a glue joint finish ready for panel glue-up right out of the saw.
- Produces a guaranteed glue joint finish to 15′, which eliminates the need to joint the material after ripping
- Precision straight line feeding for parallel and accurate rip cuts

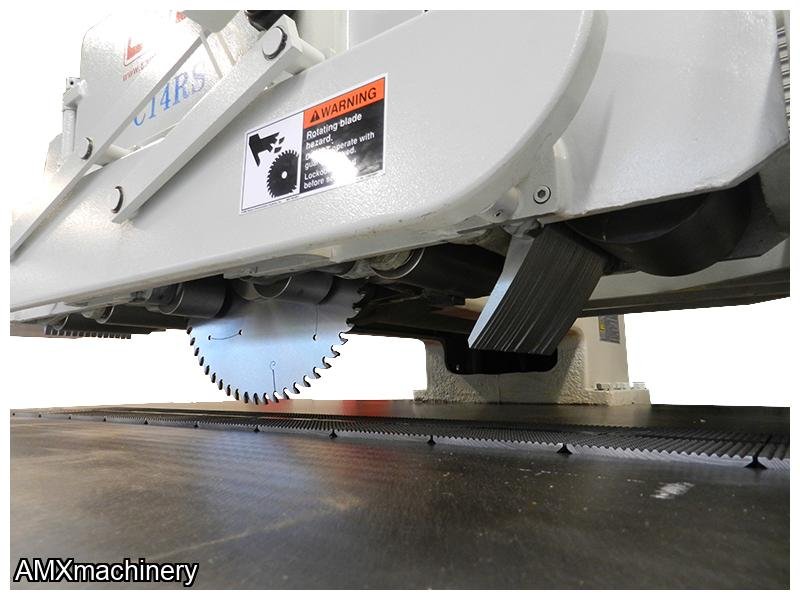

- Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut
- Powerful 20HP saw motor for even the most demanding rip applications
- Maintenance-free chain track with the use of a reliable mechanical lubrication system

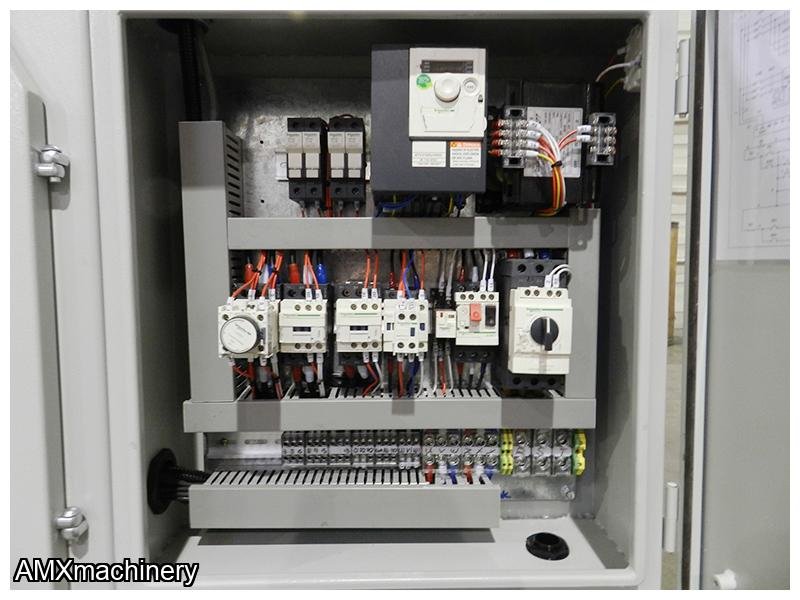

- Variable feed speed by frequency inverter for optimum cutting results
KEY ADVANTAGES
- Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
- Very rigid machine body with a welded steel frame
- Absolute straight line feeding with glue joint to 15 ft.

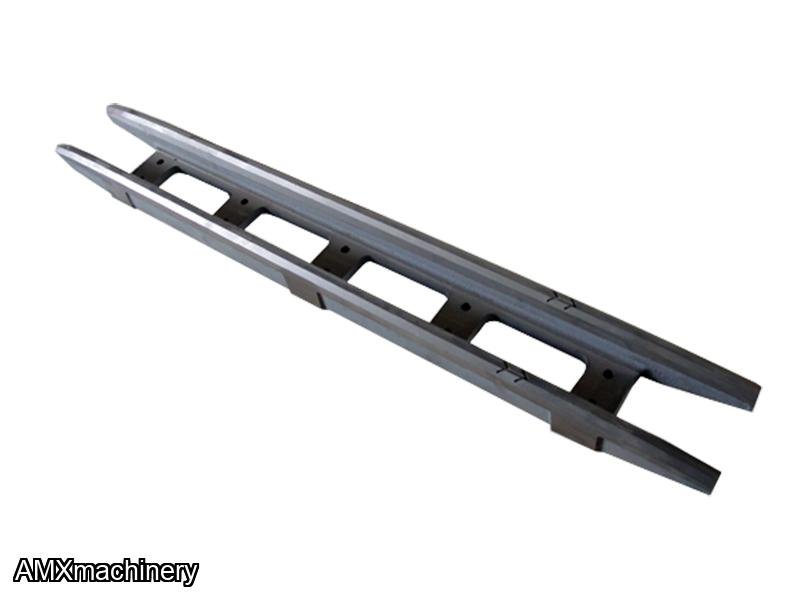

- FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life
- Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
- Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.
- Mechanical operation chain oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
- When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.
- Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.
- 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety.
- Soft start – Star Delta starter reduces the amp draw on startup.
- Optional laser light to project the cutting line to achieve maximum material yield.
|
|
INCH |
METRIC |
|
Saw blade diameter |
12″ ~ 15″ |
300 ~ 380mm |
|
Saw arbor diameter |
1.5″ |
|
|
Saw arbor speed |
3500 RPM |
|
|
Feed speeds variable |
33 ~ 98 FPM |
10 ~ 30 m/min |
|
Max. cutting thickness: 12″ blade |
3.35″ |
85mm |
|
Max. cutting thickness: 13″ blade |
3.94″ |
100mm |
|
Max. cutting thickness: 14″ blade |
4.33″ |
110mm |
|
Max. cutting thickness: 15″ blade |
4.92″ |
125mm |
|
Minimum work piece length |
8″ |
200mm |
|
Distance between saw and column |
24″ |
609mm |
|
Arbor motor |
20 HP |
|
|
Feed motor |
2 HP |
|
|
Table size |
50″ x 75″ |
1270 x 1905mm |
|
Table height |
31.5″ |
800mm |
|
Dust port size |
5″ |
125mm |
|
Net weight |
3410 lbs |
1550 kgs |
|
Machine dimensions |
89″ x 57″ x 57″ |
2269 x 1448x 1449mm |
