Description

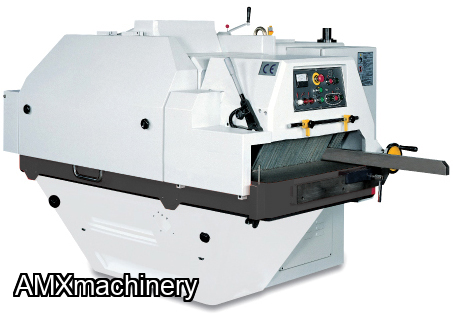

PARTE: 2CK-MRS350
FEATURES
- The Frame is cast iron, all the main parts are enclosed, ensuring protection and perfect stability
- Straight line caterpillar feeding with Heavy Guided Chain. Chain blocks are special cast iron with heat treated & precision ground pins
- Nickel chrome steel 55mm dia. Saw Arbor with 70 mm OD with dble. keyed Quick Removal Sleeve
- Powered Rise & Fall to the Pressure Rollers
- New style round Fence Bar support with Quick-Shift Long Fence
- Long Infeed Fence with Heavy Round Bar for mounting for control of long material (not shown in picture above)
- Automatic Centralized lubrication system
- Automatic Star-Delta Starter (slow-soft speed start) and low voltage controls
- 3 sets of Anti-Kickback Fingers 2 top, 1 bottom
- Overload Protection System for feed motor. The feed chain slows down automatically when the saws are overloaded. This prevents damage to the material and machine. It also prolongs saw life.
- Comes with 1 set of spacers and removable saw sleeve
- C.E style European Guard & Safety Features
- Electrics are 230, 460 or 575 Volts 3 phase 60 cycles to UL/CSA Standards
|
Maximum working Thickness |
5.3” (135mm) with 16” Saws |
|
Maximum Distance between Outside Saws |
13.78” (350mm) |
|
Distance from column to link chain center |
14.961” (380mm) |
|
Minimum length to cut – standard |
25.591” (650mm) (to 19.7”-500mm w/Short Stock holdown–option) |
|
Max. Saw Blade Diameter |
16” (380mm) |
|
Min. saw Blade Diameter |
10” (250mm) |
|
Sawblade bore |
70mm – double keyed |
|
Saw Arbor Diameter |
55mm |
|
Saw Arbor Motors Available |
50 HP (Std) , 60HP or 75HP or 100HP – Optional |
|
Saw Arbor Speed |
3800 RPM (50/60 HP); 3000 RPM (75/100HP) |
|
Variable Feed Speeds |
24~100 FPM (7.5 ~ 30 m/min) |
|
Feed Motor |
2HP std. (3HP optional for extra heavy cutting) |
|
Power rise/fall to pressure rollers |
1HP |
|
Table height from floor |
29.33” (745mm) |
|
Table size |
72” x 31.5” (1840mm x 800mm) |
|
Machine dimensions |
92” x 61” x 59” (2340x1550x1510mm) |
|
Machine Weight |
5280 lbs. (2400 kgs.) |
|
Voltage – to UL/CSA Standards |
available 230, 460 or 575/3/60 (please specify) |
