SIERRA MULTIPLE - DE VAIVEN - CORTE DELGADO

PARTE: 2OG-ECO - SIERRA MULTIPLE - DE VAIVEN - CORTE DELGADO - ECO-POWER

NUEVA CON GARANTIA

Glue-Ready Slats with Minimal Saw Kerf Waste

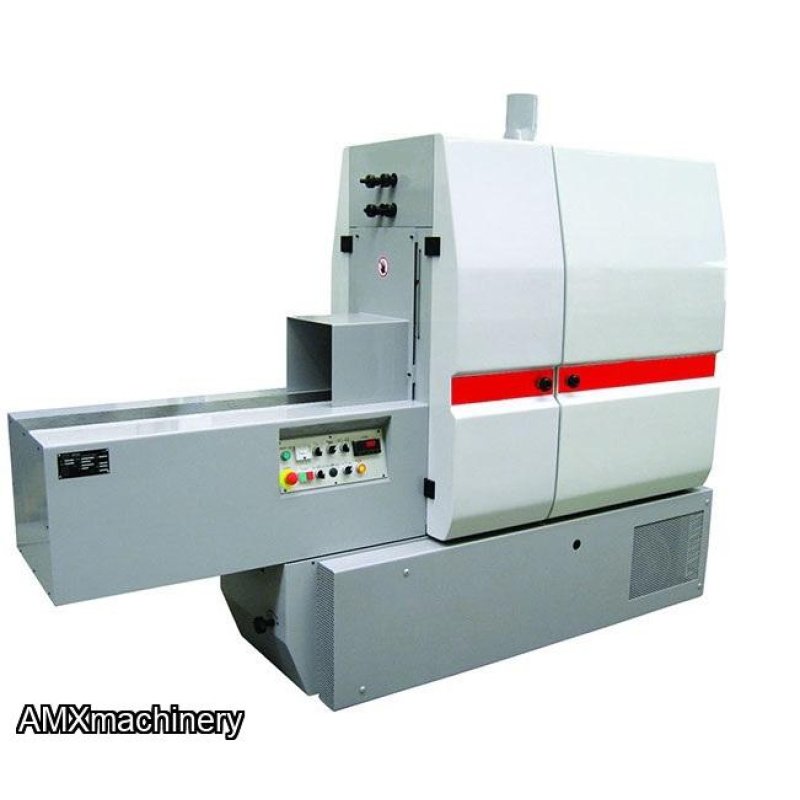

The Power Plus Thin Cutting machine has a sturdy, solid cast iron base and is equipped with a 15kW (20 HP) main motor. Cuts solid wood blocks into glue able slats with minimal saw kerf waste.

The machine can run products up to 250mm in height (10”).

Provides a high performance and quality machine for the production of veneer slats.

The machine can be fitted with a custom channel system that will feed up to 5 boards simultaneously.

FEATURES

• Linear Guides for Smooth Carriage Movement

• Easy Access for Saw Frame Changing

• Automatic Central Lubrication System

• Solid Cast Iron Machine Construction

• Precision Stop/Start Feed System

• Solid Steel Crank Arms

• Air Blast Cooling System

APPLICATIONS

• Flooring

• Engineered Stiles and Rails

• Musical Instruments

Machine Specifications

• Stroke - 8” (210mm)

• Strokes Per Minute - 450

• Cutting Height - 10” (250mm)

• Cutting Width - 6” (165mm)

• Saw Blade Kerf - .043” - .053”

(1.1mm - 1.4mm)

Machine Equipped With

• Automatic Raise/Lower of Top

Feed Rollers via Push button

• Driven Top and Bottom Feed

Rollers

• Dust Free Enclosed Gear Boxes

• Side or Center Guide System

• Cast Iron Carriage

• Air Blast System

Optional Equipment

• Wet/Green Lumber Cutting

Option

• Channel Guide System

• Top/Bottom Planer

• Hopper Feed

• Orbit Model for cutting

up to 12”

• Oiling Misting System
