Description
PARTE: 2OG-ECO - SIERRA MULTIPLE - DE VAIVEN - CORTE DELGADO - ECO-POWER
NUEVA CON GARANTIA
Glue-Ready Slats with Minimal Saw Kerf Waste

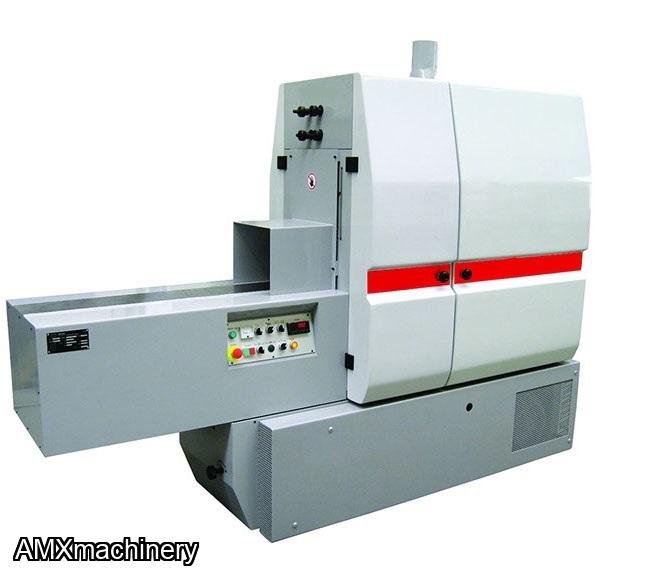

The Power Plus Thin Cutting machine has a sturdy, solid cast iron base and is equipped with a 15kW (20 HP) main motor. Cuts solid wood blocks into glue able slats with minimal saw kerf waste.
The machine can run products up to 250mm in height (10”).
Provides a high performance and quality machine for the production of veneer slats.
The machine can be fitted with a custom channel system that will feed up to 5 boards simultaneously.
FEATURES
• Linear Guides for Smooth Carriage Movement
• Easy Access for Saw Frame Changing
• Automatic Central Lubrication System
• Solid Cast Iron Machine Construction
• Precision Stop/Start Feed System
• Solid Steel Crank Arms
• Air Blast Cooling System
APPLICATIONS
• Flooring
• Engineered Stiles and Rails
• Musical Instruments
Machine Specifications
• Stroke - 8” (210mm)
• Strokes Per Minute - 450
• Cutting Height - 10” (250mm)
• Cutting Width - 6” (165mm)
• Saw Blade Kerf - .043” - .053”
(1.1mm - 1.4mm)
Machine Equipped With
• Automatic Raise/Lower of Top
Feed Rollers via Push button
• Driven Top and Bottom Feed
Rollers
• Dust Free Enclosed Gear Boxes
• Side or Center Guide System
• Cast Iron Carriage
• Air Blast System
Optional Equipment
• Wet/Green Lumber Cutting
Option
• Channel Guide System
• Top/Bottom Planer
• Hopper Feed
• Orbit Model for cutting
up to 12”
• Oiling Misting System
