Descripción

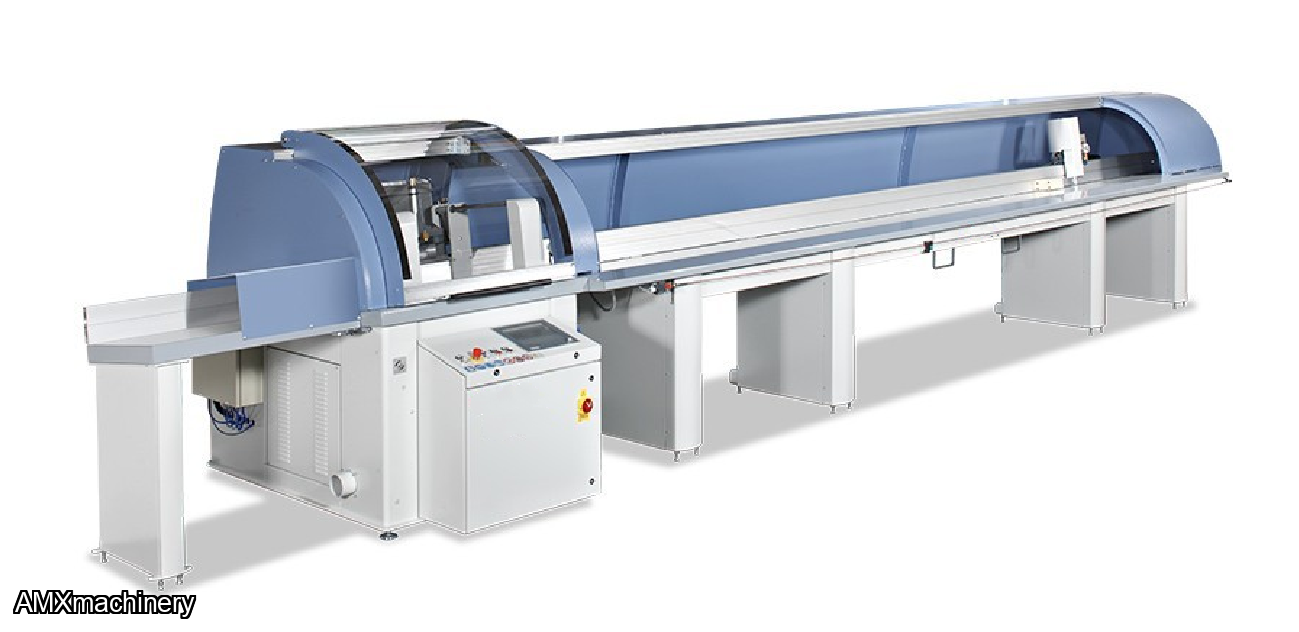

PARTE: 4ST-CT 600 - SIERRA OPTIMIZADORA - CORTES ANGULARES
CROSSCUT SAW WITH AUTOMATIC PUSH-FEED FOR ANGLED CUT
OPTIMISED CUTTING
Is a crosscut saw with automatic push-feed with complete optimisation and defection of the boards.
Thanks to its rotating table, it is the optimal solution for all straight (90°) and angular (+/- 70°) cutting for both
single board and stack sawing.
The pusher is designed with a rack and pinion feed system and brushless motor to ensure maximum cutting precision.
The software architecture relies on a Beckhoff electronic control with a 12" high-resolution touch-screen monitor,
simple and intuitive 3D graphic interface with Windows operating system.
Cutting lists can be created directly on the on-board software or imported via connection to Ethernet or USB network ports.
The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process
according to 4 criteria: maximum length, minimum waste, sequence and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks to eliminate knots and defects (OPTI PLUS function).
Possibility of integrating label and ink-jet printers into the cutting line.
Automatic loading and sorting units can be implemented on request.
All in all, it is the perfect machine for the most demanding customers, flexible but with high production capacity.
It is the reference for manufacturers of special packaging, wooden floors, wooden houses (Truss and Frame Walls)
construction formwork and interior and exterior furnishings.
Technical specifications Cutting unit
Blade diameter
- 600 mm
Blade rotation speed
- 2600 rpm
Blade motor power
- kW 7,5 (HP 10)
Blade driving
- Pneumatic Automatic
Working table rotation
- 70° 0° +70° (+/- 80° option)
Rotation accuracy
- +/- 0,2 mm
Working table height
- 1000 mm
Working table inclination
- 8°
Minimum crosscutting section
- 20 x 10 mm
Max operating pressure
6 bar
Extraction outlets
- 2 x Ø100 mm - 1 x Ø120 mm
Net weight
- 1200 kg
Technical specifications Push-feed
Loading Capacity
- 3000 - 4000 - 5000 - 6000 mm
Maximum speed
- 90 mt/min
Max positioning speed
- 90 mt/min
Max return speed
- 90 mt/min
Positioning accuracy
- +/- 0,4 mm
Max boards weight
- 80 kg
Cutting execution cycle
- 4 seconds
