Identificador: 87
Abierta
Descripción

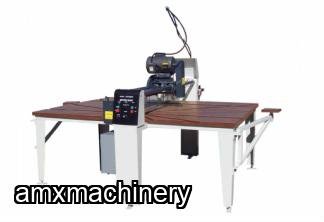

PARTE: 2EV-0710 – SIERRA RADIAL - AUTO - EVANS 0710
Power feed with variable speed control
35 1/2 " working height. Adjustable leveling feet.
NEW: Additional guarding on both sides of the blade and around the controls
Preset 90°, 45°, and 22-1/2° Cut Guides
16” Saw Blade with a 1” Arbor
Pneumatic Saw Guard
Swing Out Supports for Longer
Lengths
4” Dust Port
Variable Speed: 0-50 FPM
Max Cut Stroke: 50”
Work Surface: 60” X 96”
Drive Motor: 3 HP
Electrical: 230 V, 3 PH, 60 Hz
Air Requirement: 80 PSI
Crated weight 1540 LBS. Shipping dimensions 104" long X 90" wide X 68" high
Options:
Pneumatic hold down device with 4 cylinders
220 Volt 1 Phase
380 Volt 3 Phase
440 Volt 3 Phase
Extra saw blade 08038
5 HP 220 Volt 3 Phase
The 0710 guarantees precision cut every time. The custom designed top ensures accurate 22 1/2”, 45°, and 90° cuts without gauges, guides, or fences. The electric power feed mechanism has positive forward and reverse actions. Every 0710 comes equipped with a fitted saw guard specially designed to provide maximum operator safety without sacrificing accuracy, workability, or production flow. The 0710 has proven itself to be both reliable and dependable within the countertop fabricators industry. (Manual Feed 0700 also available)
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
CUCHILLAS PARA MOLDURAS - CEPILLO MOLDURADOR
PARTE: 1SL-DC-WPM13 - CUCHILLAS PARA MOLDURAS - CEPILLO MOLDURADOR Espesor 1/8”, ancho de 25mm y 35 mmPARTE #DESCRIPCIONDC-WPM13-1Clave 1 (longitud de corte 2-1/2”)DC-WPM13-2Clave 2 (longitud de corte 3” )DC-WPM13-3Clave 3 (longitud de corte 4-1/2”)DC-WPM13-4Clave 4 (longitud de corte 6”)
AMXmachinery
PRENSA DE TABLEROS - 6 SECCIONES - TAYLOR
PARTE # 11988 - PRENSA DE TABLEROS - 6 SECCIONES - TAYLOR 8-1/2' Wide, 6 section(36) 40 in. opening clamps w/ 2-1/2 in. high jawPneumatic motor drive for rotationSwing style pneumatic clamp tightener and panel flattener
AMXmachinery
PARTE: 12564 - PRENSA ARMADORA DE GABINETES - 98” ALTO X 55” ANCHO X 24” FONDO
PARTE:
12564 - PRENSA ARMADORA DE GABINETES - 98” ALTO X 55” ANCHO X 24” FONDONueva - Nunca UsadaUHLING - HP3000Vertical designPneumatic operationClamping Capacity 55" L x 96" H x
24" DClamping operation is accomplished through four
dual pod pressure bars which are activated and can be individually selected for
quick accurate clamping up to 120 PSIStroke length 3-1/2"Roller bearing mounted carriage with pneumatic
locks
Carriage
mounted operators panel
AMXmachinery
TORNO COPIADOR – 3 TORNOS - 1500 MM LOGINTUD
PARTE: 3DF-3SPIN – TORNO COPIADOR
– 3 TORNOS - 1500 MM LOGINTUD
NUEVO CON GARANTIA
Machine material: Cast iron
Max diameter: 300mm (Custom model 400mm specifications)
Max length: 1500mm(Custom model 2000mm specifications)
Rotary spindle motor speed: 0-3000 rpm
Transmission: Rack and
pinion
Air pressure: 0.6-0.8Mpa
Control system: DSP system
Software compatiliby: Type3/Artcam/Artcut/Ucancam/JDpaint
etc.
Command language: G-code
Computer interface: U...
