Identificador: 3103
Abierta
.png)
Descripción

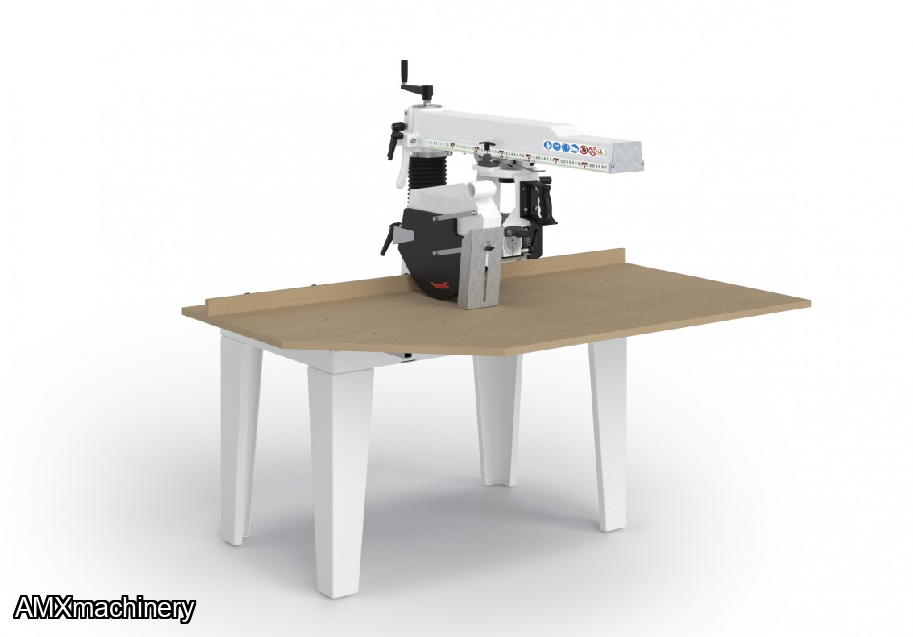

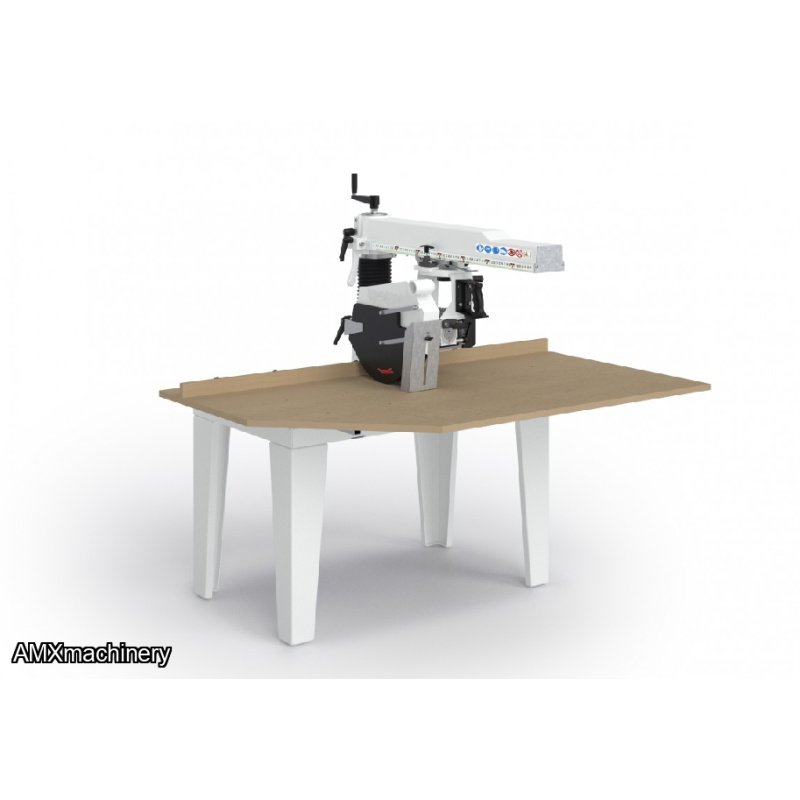

PARTE: 4ST-RS 750S - SIERRA RADIAL
With its cast iron frame offers versatility, cutting precision and functionality
for all different types of joinery material.
Thanks to a blade diameter 350 mm and a motor power of 3 kW allows you to cut
up to 100 mm thick and 750 mm wide.
Technical specifications Cutting unit
Blade diameter
- 350 mm
Blade rotation speed
- 3000 rpm
Blade motor power
- kW 3 (HP 4)
Working table height
- 900 mm
Blade feeding
- Manual
Blade inclination
- 0° -45°
Blade rotation
- -45° +45°
Max operating pressure
- 6-8 bar
Extraction outlets
- 1 x Ø60 mm + 1 x Ø120 mm
Net weight
- 245 kg
