Descripción

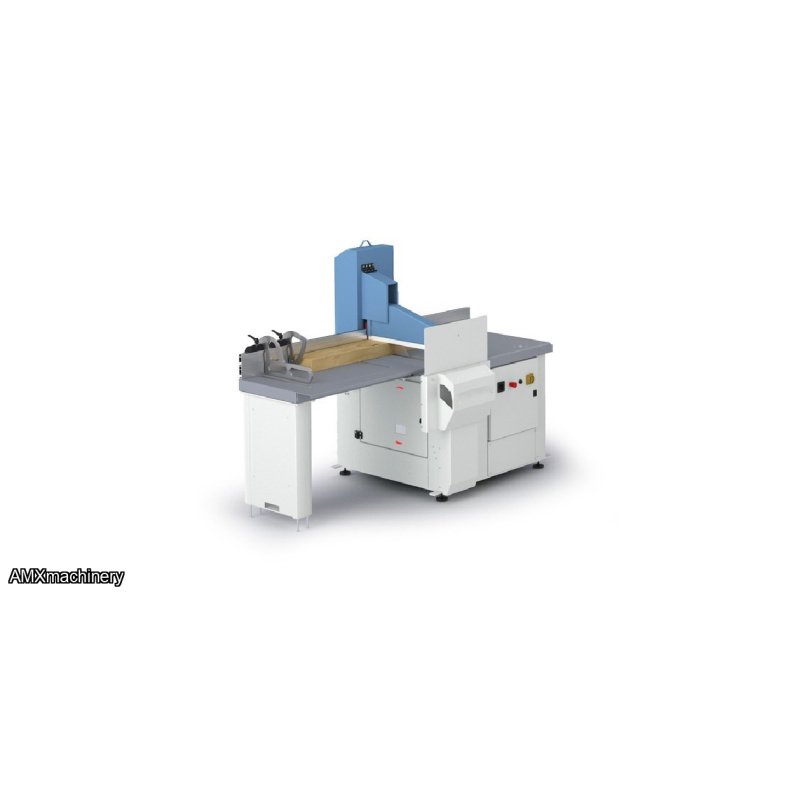

PARTE: 4ST-TR 601 - SIERRA TRONZADORA
CUT OFF SAWS WITH ASCENDING BLADE
CLASSIC TOOLS FOR SAWING
Is a cut off saw that was born out to meet the crosscutting needs of large industries.
Thanks to its robustness, a hydraulic saw unit drive with bimanual hand-saving control

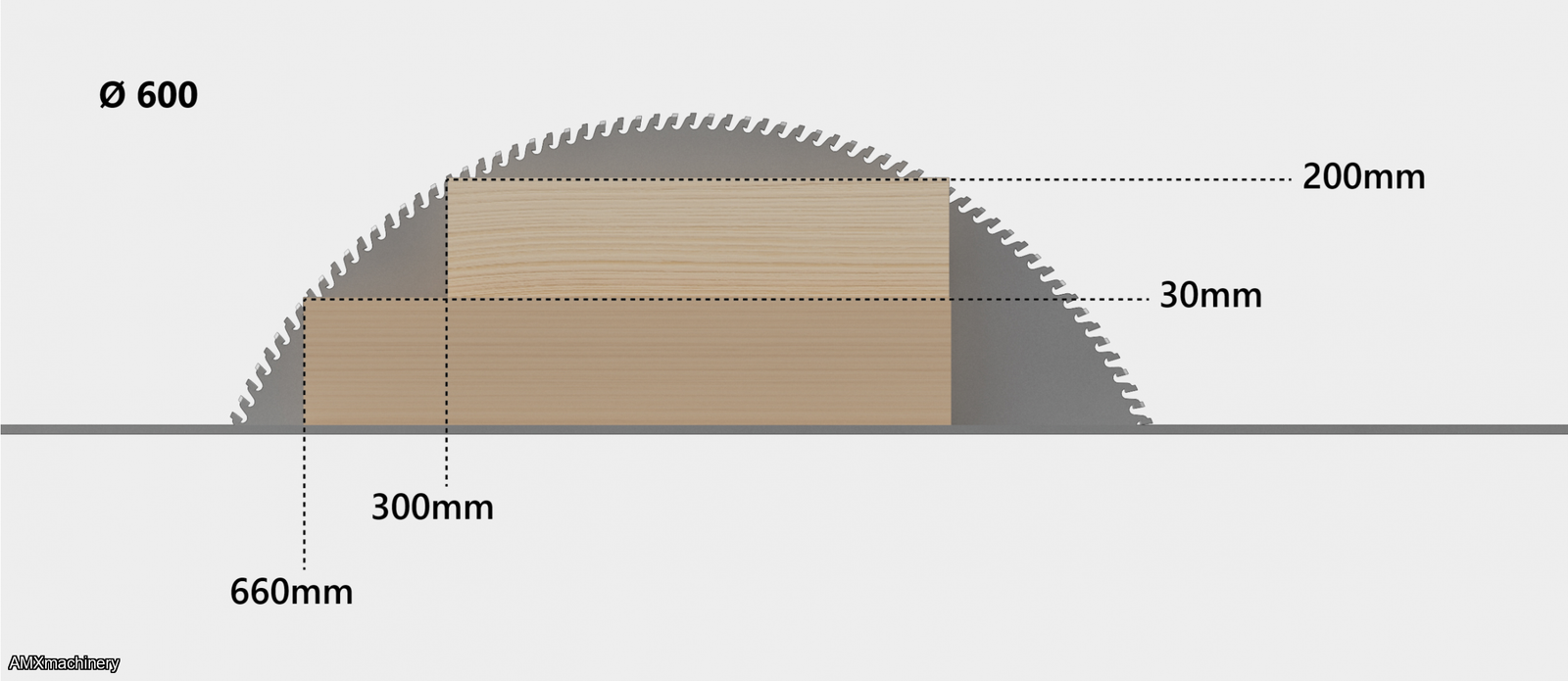

to a motor power of 9 kW and a 600 mm diameter blade it can cut up to 200 mm thick and 650 mm wide.
Technical specifications Cutting unit
Blade diameter
- 600 mm
Blade rotation speed
- 3000 rpm
Blade motor power
- kW 9 (HP 12,5)
Blade driving
- Two-handed starting system
Working table height
- 945 mm
Workpiece loading
- Front and Side
Max operating pressure
- 6-8 bar
Extraction outlets
- 2 x Ø100 mm
Net weight
- 780 kg
