Identificador: 3196
Abierta
Descripción

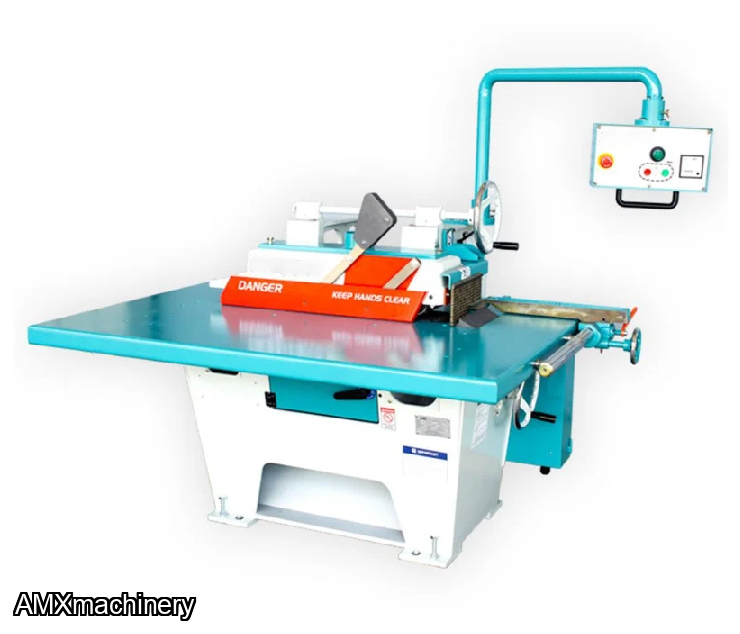

PARTE: 2EX- XR-14BX - SIERRA RAJADORA - 1 DISCO - 14"
Details:
- 15 HP Main motor
- Huge 45″ x 61″ table available
- 6 full hold down rollers
- Variable feed speeds from 50-120 ft/min
- 8′ Guaranteed Glue Line
- Disc Brakes
- Micro adjust fence with handwheel
- Triple anti-kickback fingers
- 18″ wide ripping capacity
- Automatic Oiler with low-oil warning
- Wye-Delta soft start
- Heat treated chain and race
- Amp meter
- Square D Electrical controls
Specifications:
- Horsepower: 15HP
- Voltage: 230V or 460V
- Phase(s): 3PH
- Blade Size: 14"
- Main Motor: 15 HP
- Feed Motor: 1.5 HP
- Blade Speed: 3600
- Feed Speed: 50 - 120
- Max Rip Capacity: 18"
- Working Height: 33.5"
- Table Size: 37-1/2" x 61"
- Dust Collection Requirement: 1000 CFM
- Hold Down Rollers: 6
- Chain Rail Length: 28"
- Chain Pad Width: 7"
- Guaranteed Glue Line Length: 8'
- Set of Anti-Kickback Fingers: 3
- Disc Brakes: Yes
- Oiler System: Auto w/ warning
- AMPS (230V/460V): 45A / 23A
- Max Thickness Capacity: 3"
- Weight: 3200 lbs
