Identificador: 1678 Abierta

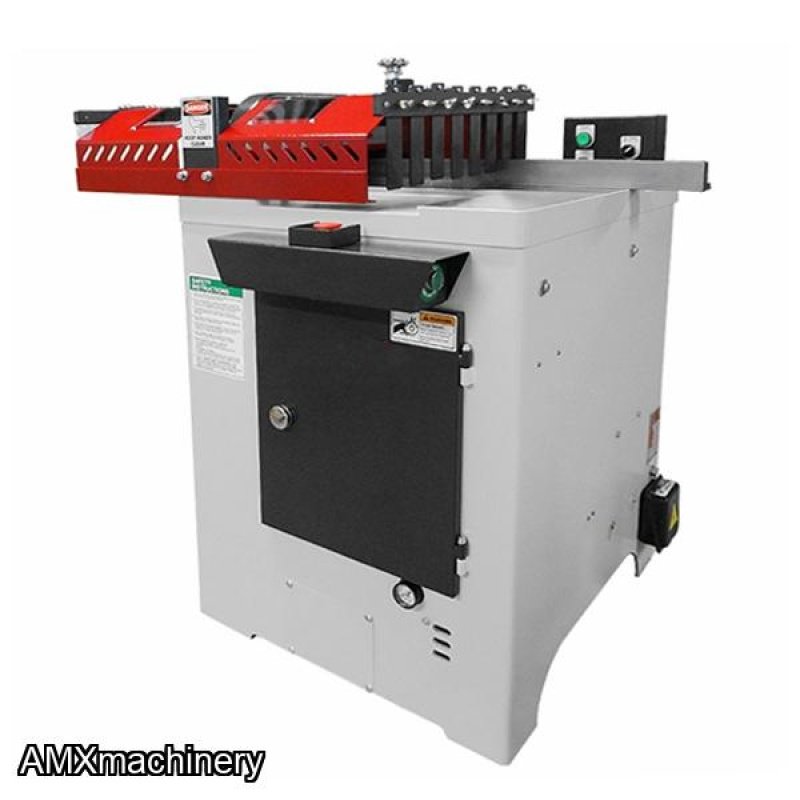

SIERRA TRONZADORA – 10 HP - DISCO 18”

AMXmachinery

Contacte al Vendedor

Descripción

PARTE: 2CK-PCS18 – SIERRA TRONZADORA – 10 HP - DISCO 18” – IZQUIERDA

PARTE: 2CK-PCS18R – SIERRA TRONZADORA – 10 HP - DISCO 18” – DERECHA

Large cutting capacity of 2”x12” up to 4”x10”
Adjustable cutting stroke to ensure optimum cutting speed and cut quality
Reliable performance day in and day out
Added safety features

Available in Right Hand & Left Hand configuration
Cut off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
Powerful 10HP main motor

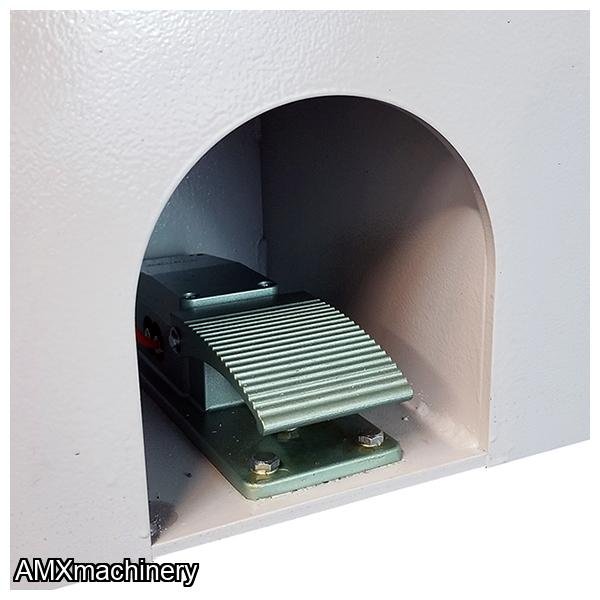

Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
Fast cutting cycle with up to 45 strokes per minute
Cast iron table surface is precision ground assuring high cutting accuracy.
Material clamp is easily adjusted for workpiece thickness variation.
CSA/UL magnetic switch

^{Cutting capacity (thickness x width)}	^{2″ x 12″, 3″ x 11″, 4″ x 10″}
^{Cycle speed}	^{45 strokes/min}
^{Cycle operation}	^Air
^{Saw blade size (optional)}	^18″
^{Saw arbor diameter}	^1″
^{Saw blade speed}	^{3600 RPM}
^{Dust exhaust diameter}	^Ø4″
^Air	^{9.8 CFM / 70-85 PSI}
^Motor	^{10 HP}
^{Table size}	^{26” x 27 ½”}
^{Net weight}	^{770 lbs.}
^{Gross weight}	^{902 lbs.}
^{Machine dimensions (LxWxH)}	^{42” x 27” x 48”}
^{Packing dimensions (L x W x H)}	^{37” x 33 ½” x 53.2”}

Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
Infeed guard has adjustable fingers to minimize opening
Door safety limit switches with extended security bolt
Emergency stop button
Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
