Identificador: 355 Abierta

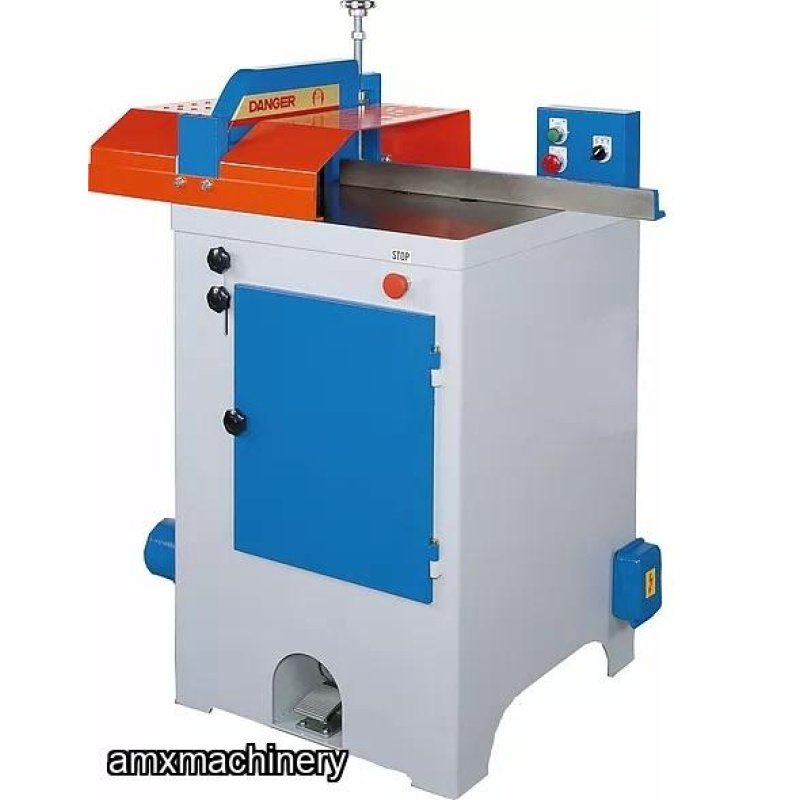

SIERRA TRONZADORA 18"
SIERRA TRONZADORA 18"
SIERRA TRONZADORA 18"
SIERRA TRONZADORA 18"
SIERRA TRONZADORA 18"
SIERRA TRONZADORA 18"

SIERRA TRONZADORA 18"

AMXmachinery

Contacte al Vendedor
Descripción

PARTE: 3YH-YFC-18 – SIERRA TRONZADORA – 7.5 HP – SIERRA 18” – AMX MACHINERY

MAQUINA EN FOTO: IZQUIERDA

OPCIONAL: DERECHA

SPECIFICATIONS

● Cutting capacity (Thickness x Width):2" x 12", 3" x 11", 4" x 10"

● Cycle speed:45 cuts/min

● Cycle operation:Pneumatic

● Saw blade diameter (Option):ø18"

● Saw arbor diameter:ø1"/ 30mm

● Saw blade speed :3600 rpm

● Dust exhaust diameter:ø4" x (1)

● Saw arbor motor:7.5HP / 10HP

● Table size:660X 690mm

● Net weight:350 kgs

● Gross weight:410 kgs

● Packing dimensions(LxWxH):770x 780x 1350mm



FEATURES

● Table surface is precision ground, assuring cutting accuracy.

● The sawblade on the left side is standard machine, shown as picture. (Option, the sawbalde on the right side)

● Cycle speed is adjustable and up to 45 strokes per minute.

● Motion cycle is pneumatic operated and controlled by foot switch. (Option, dual hand buttons)

● Powerful 7.5HP (10HP) motor drive.

● T-clamp is easily adjusted for workpiece thickness variation.

● Convenient and fast sawblade replacement.

● Proper dust collection design to keep cabinet clean.



Roller Conveyor (Option)

Standard length is 1M. Available in any length.

Outfeed roller conveyor is with extension stop and aluminum extruded rear fence.

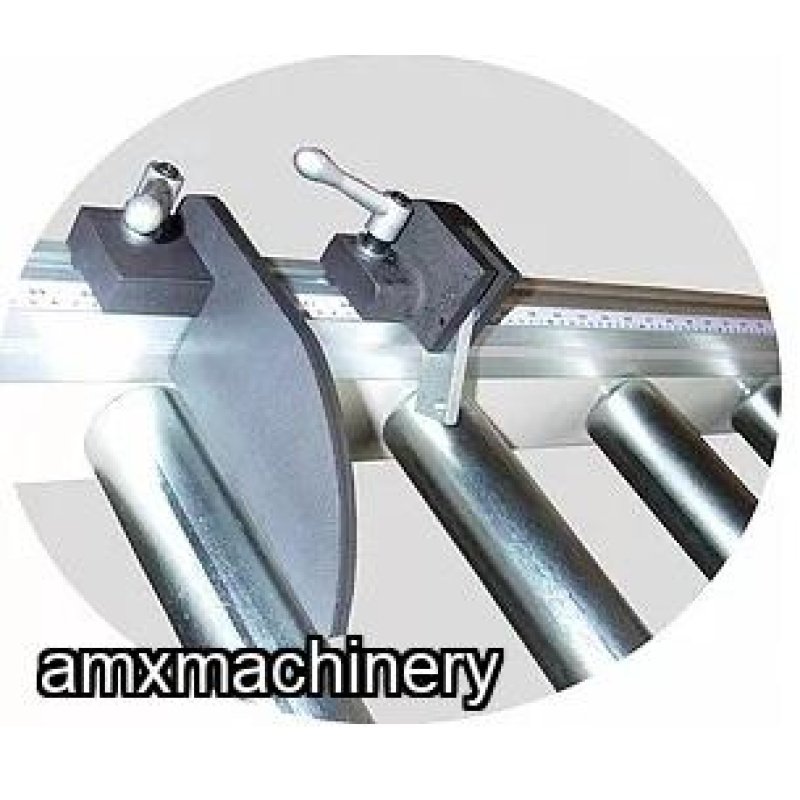

Extension Stop (Option)

Extension stop is used on outfeed roller conveyor. It is convenient for length stop and for repetitive cutting in a mass production line.

There are 3 kinds of extension stop, fix stop, flip stop and lift stop.



Safety Switch (Option)

When operator approaches the cutting area, the safety switch controls T-clamp and unable to cut workpiece.



Safety Guard (Option)

The complete safety for fast cutting operation and to avoid operator to approach the cutting area.
