Identificador: 1680
Abierta
Descripción

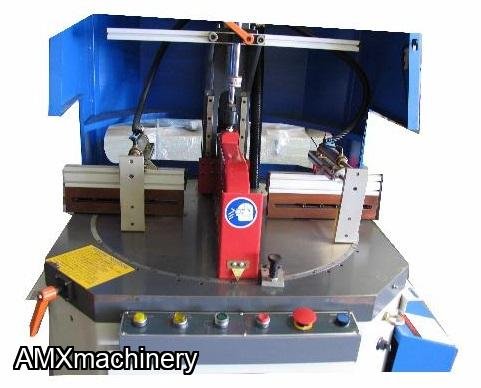

PARTE: 2TA-CS- 20RL45 – SIERRA TRONZADORA DE 45 A 90 GRADOS AJUSTABLE – DISCO 20”
NUEVA CON GARANTIA
Features:
Adjustable maximum 45 degree to the right or left or 90 degree angle setting for semi-automatic, fast cutting.
Semi-automatic by pneumatic movement cutting.
Auto. cutting cycle simply operated by foot switch.
Sealed long-life ball bearings.
Full 10 HP motor for powerful cutting capacity.
Precision ground cast iron table with heavy metal cabinet stand.
Easy operation for furniture, lumber, door, pallet or other manufacturing.
Clamp and guard automatically holds the lumber within cutting period and releases it after cutting.
Saw blade rises from under the table and return right after cutting for safety operation.
Magnetic control with overload protection.
|
SPECIFICATIONS |
2LB-CS-20RL45 |
|
Cutting Capacity (H x W) |
3/4" x 11" |
|
90 Degree |
2-1/8" x 6" |
|
45 Degree |
1-1/2" x 12-1/2" |
|
45 Degree |
1/2" x 13-1/2" |
|
Designed Cutting |
25 Cycles/Min |
|
Saw Blade Diameter |
20" |
|
Saw Blade Arbor |
1" |
|
Saw Blade Speed |
3600 RPM |
|
Air Pressure |
90 PSI |
|
Dust Hood |
4" |
|
Motor (220/440V) |
10HP 3PH |
|
Overall Dimension (W x L) |
47" x 40" |
|
N.W. |
910 |
|
G.W. |
1200 |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA CINTA - VOLANTES 14” - ½ HP - DELTA
PARTE: AMX-10151 - SIERRA CINTA - VOLANTES 14” - ½ HP - DELTA
USADA - MUY BUENAS
CONDICIONES
Gomas de los volantes
nuevos
Todos los
baleros nuevosMotor 1/2 HP, 110V, 1 FaseVolantes 14" diametroAltura maxima de corte: 18 cm (7")Medidas totales: 33" ancho x 17" fondo x 66" alto
AMXmachinery
ASTILLADORA PARA MADERA - HORIZONTAL - 40 HP
PARTE: 2VE-VTH-35/8/2VU
- ASTILLADORA PARA MADERA - HORIZONTAL - 40 HP
TRANSPORTADOR
VTBRATORIO 16” LARGO
NUEVA CON
GARANTIAApplication Description:Type of material to be ground: Wood – Pine, kiln driedForm of material to be ground: Rips from gang-rip, waste
wood from cut-offsTypical size of material to be ground: < 5” x 18” x 16’Required volume of material to be ground: 1,000 lbs/hrDesired screen or particle size: 3/4”Use of ground product: Not Specified SPECIFICATIO...
AMXmachinery
PARTE: 2MA-FP-2560CB – LIJADORA - CALIBRADORA DE METAL – 25” ANCHO - 2 LIJAS
PARTE:
2MA-FP-2560CB – LIJADORA - CALIBRADORA DE METAL – 25” ANCHO - 2 LIJAS
NUEVA CON GARANTIA
Standard
Features:
Motorized
Table Lift, with digital readout
Variable
Speed Conveyor
Conveyor
Forward & Reverse
Belt
Safety Overtravel Switches
Electronic
Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust
the tracking system when running extremely out of parallel belts
Heavy Duty
Table Support
Double
Infeed & Outfeed Pinch...
AMXmachinery
RECIPROCANTE 43"
PARTE # 2TA-TS-HACDE – RECIPROCANTE – 43” ANCHONueva con garantiaAuto Clean Flat-Line Spray MachineTechnical data: (Each Set)A. Machine Size L6442 x W3700 x H2700mmB. Conveyer 1 lot- Loading Conveyer Belt & roller type- Spray Conveyer Belt type- Belt Cleaning Unit (for over spray cleaning)- Conveyer Speed 1~4M/min- Speed Control InverterC. Reciprocator 1 lot- Power 2KW- Speed 1~1.8M/sec.- Speed Control Servo Motor- Valuable Stroke 1100mmD. Spray Booth 1 lot- Size L2250 x W3700 x H2700mm- P...
