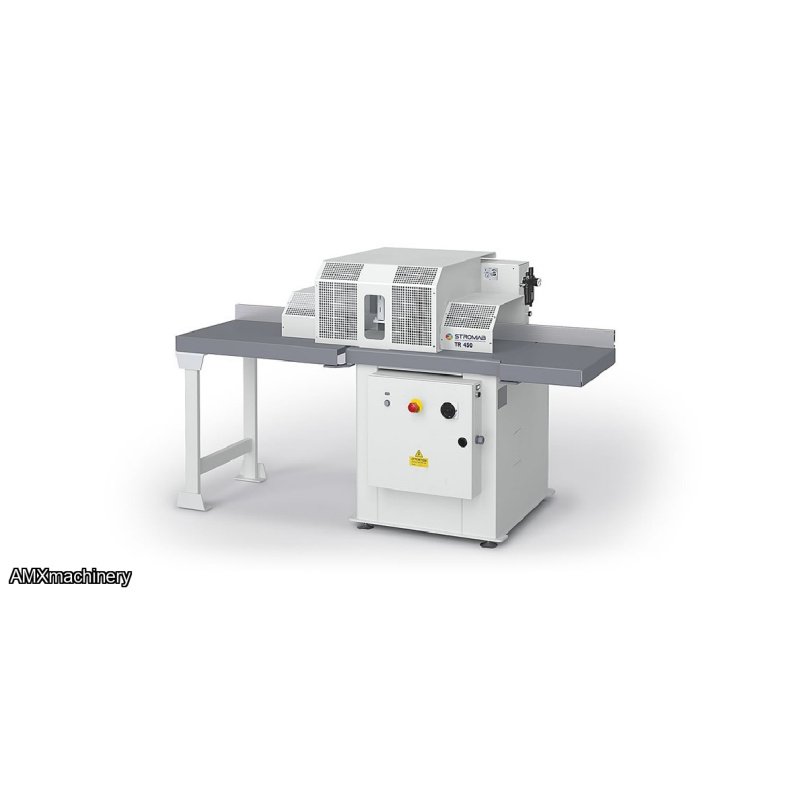

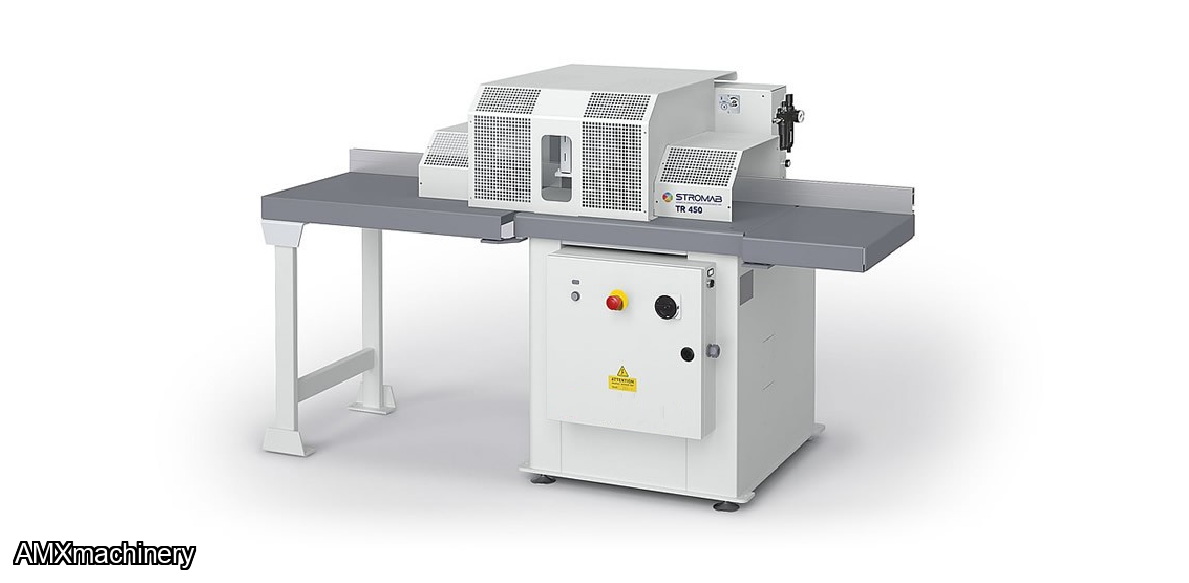

PARTE: 4ST-TR 450 - SIERRA TRONZADORA
CUT OFF SAWS WITH ASCENDING BLADE
CLASSIC TOOLS FOR SAWING
Is a cut off saw that was born out to meet the crosscutting needs of small and large industries.
Thanks to a pneumatic saw unit drive with bimanual hand-saving control, a motor power of 5,5 kW

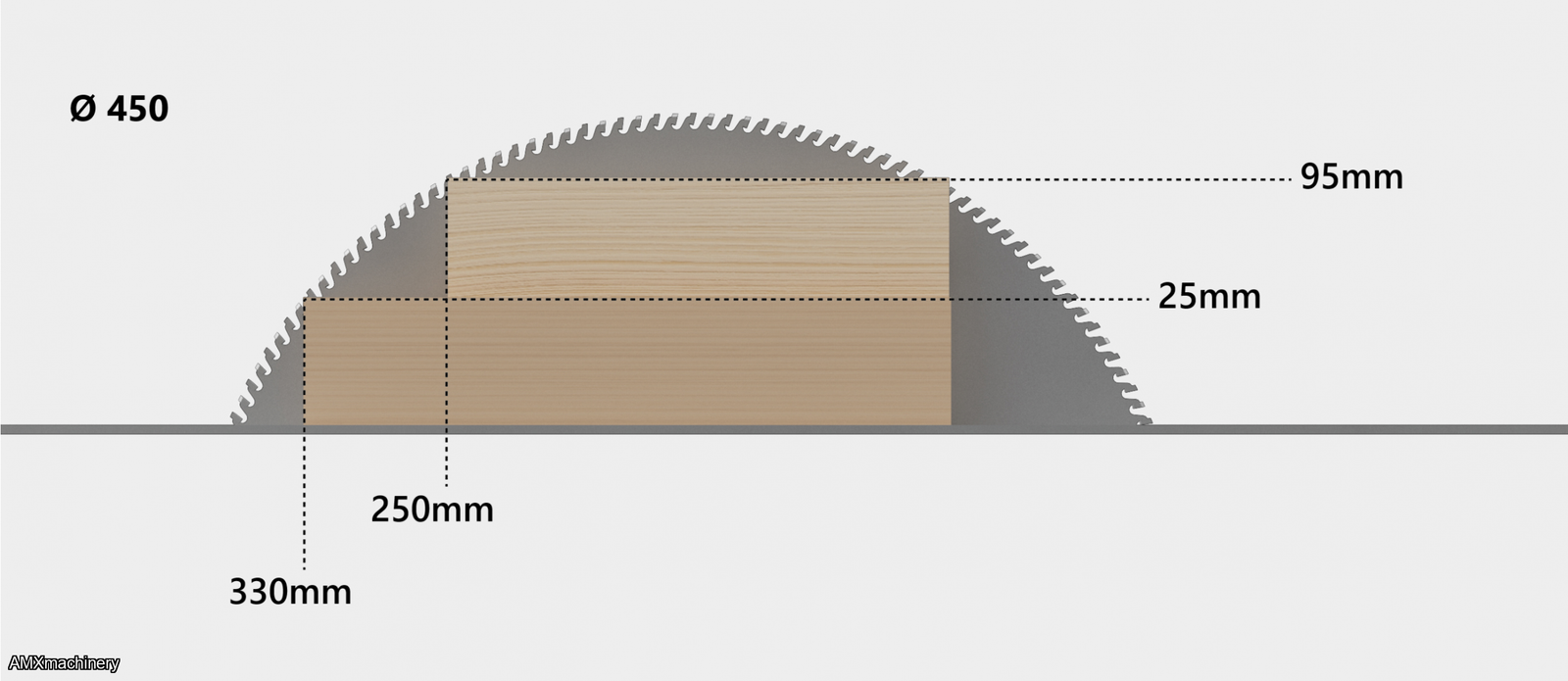

and a 450 mm diameter blade it can cut up to 95 mm thick and 330 mm wide.
Technical specifications Cutting unit
Blade diameter
- 450 mm
Blade rotation speed
- 3000 rpm
Blade motor power
- kW 4 (HP 5,5)
Blade driving
- Two-handed starting system
Working table height
- 852 mm
Workpiece loading
- Side
Max operating pressure
- 6-8 bar
Extraction outlets
- 2 x Ø100 mm
Net weight
- 240 kg
