Identificador: 2818
Abierta
.PNG)
Descripción

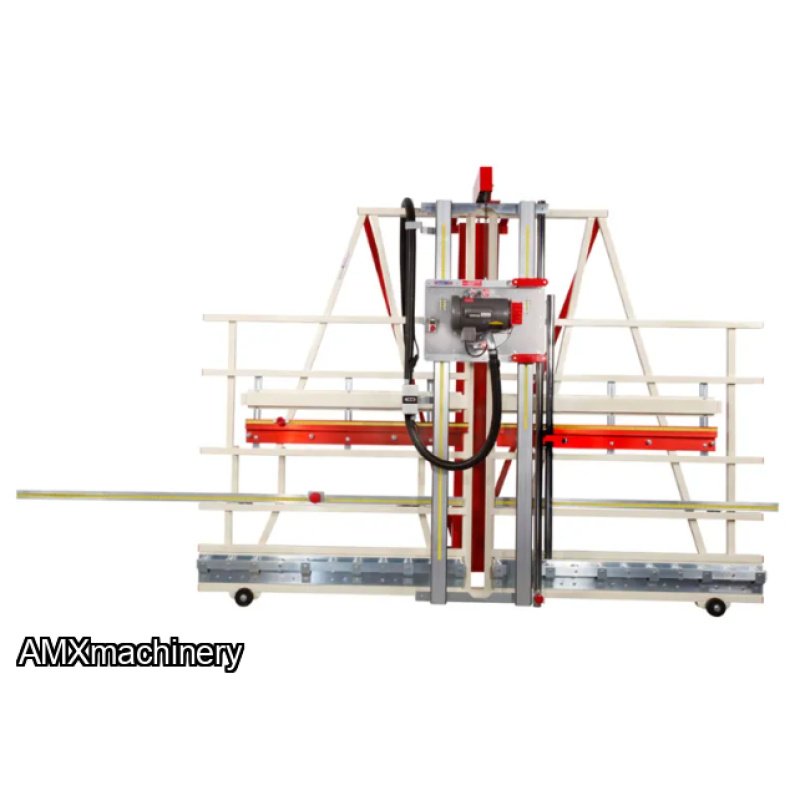

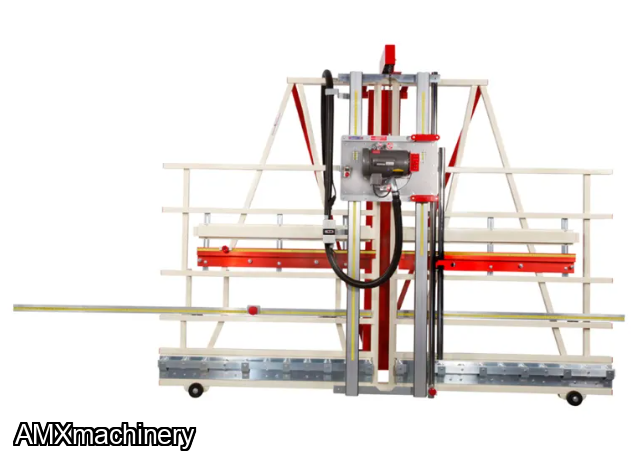

PARTE: 2SS-7400XL - SIERRA VERTICAL - 64" ALTO X 156" ANCHO
Continuous usage panel processing done the easy way. The panel saw features a 10′ frame.
- Rigid beams and rugged frame improving cut accuracy
- Our patented MID-WAY® Fence built into the machine
- 22 aluminum material rollers on the 7400
- Tighter cutting tolerance of .005″
- 2.125” depth of cut
Accessories built onto this machine and incorporated in the price include:
- Quick stop gauges (8′ left, 5′ right)
- Wheels
- MID-WAY FENCE® for processing panels at waist level
- Dust kit
- 864NRATB saw blade
- Hold Down Bar and a stand integrated within the machine
Motor
- 2HP, 1~ 230V, 11.5 AMPS
- 3HP, 3~ 230V
- 3HP, 3~ 460V, 3.8 AMPS
High production panel processing is now a reality. Cut material 2 1/8″ deep for 8+ hours per day and within .005″ straight and square. Every component of this saw represents quality and performance. Featuring three different motor configurations, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these top of the line woodworking tools will boost your shops production.
Standard Equipment:
- Continuous usage induction saw motor.
- Welded steel frame and integrated stand system.
- Dual V-track precision guide system.
- Adjustable vertical and horizontal rulers.
- Floating pressure saw foot.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- Dust collection ready.
- 3 year warranty.
- TUV certified to UL/CSA standards
