Descripción

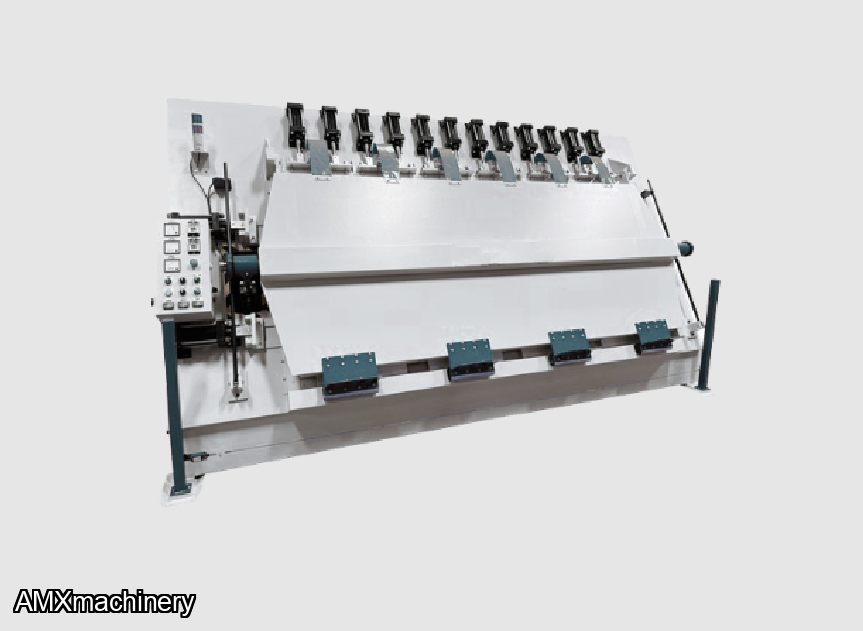

PARTE: 2LO-PT-408S3HF-S - PRENSA DE RADIO FRECUENCIA - 3 LADOS - 4' X 8'
- Mass production for wooden board, 2 to 3 minute for drying a 4' x 8' or 5' x 10' wooden board
- Automatic infeed, out-feed cycle, mass production within 3 - 5 minutes is ready for output.
- Shortens manufacturing procedures – no need to pass through for the dovetailing or joining process.
- Equipped with a massive upper plate supplies powerful hydraulic pressure, which presses each part of wood board to make even the most crooked pieces of wood flat.
- Due to the flatness it has made, there is may not needs to pass through double side planer processing. This substantially reduces wood loss.
- User friendly operations; it is equipped with side automatic inlet and outlet feeding table system for continuous and mass production.
- Top quality wood board is manufactured by way of glue cured and completely hardened glue joins with high frequency heating in the meantime.
- All processing steps are integrated into the HMI interface control panel for easy one-touch control on the screen.
- Utilizes high frequency, glue cured evenly from inner of the glue line of the wood.
Specification:
| Model No. | PT-408S3HF-S | PT-510S3HF-S |
| In Put Power | 50 KVA | 60 KVA |
| Out Put Power | 30 KW | 40 KW |
| Max. Working Width | 49" | 60" |
| Max. Working Length | 110" | 120" |
| Working Height | 9/16" ~ 2-3/4" | 9/16" ~ 2-3/4" |
| Pressure | 65 kg/cm2 | 65 kg/cm2 |
| Hydraulic Pump | 5 HP | 7-1/2 HP |
| Press Cylinder (top) | 2 Pcs | 3 Pcs |
| Press Cylinder (Rear) | 12 Pcs | 13 Pcs |
| Out Feed Rollers (Left) | 2 Pcs | 2 Pcs |
| Machine Size (Lx W x H) | 155" x 67" x 83" | 165" x 80" x 92" |
| Machine Weight | 12300 LBS | 14800 LBS |
