Descripción

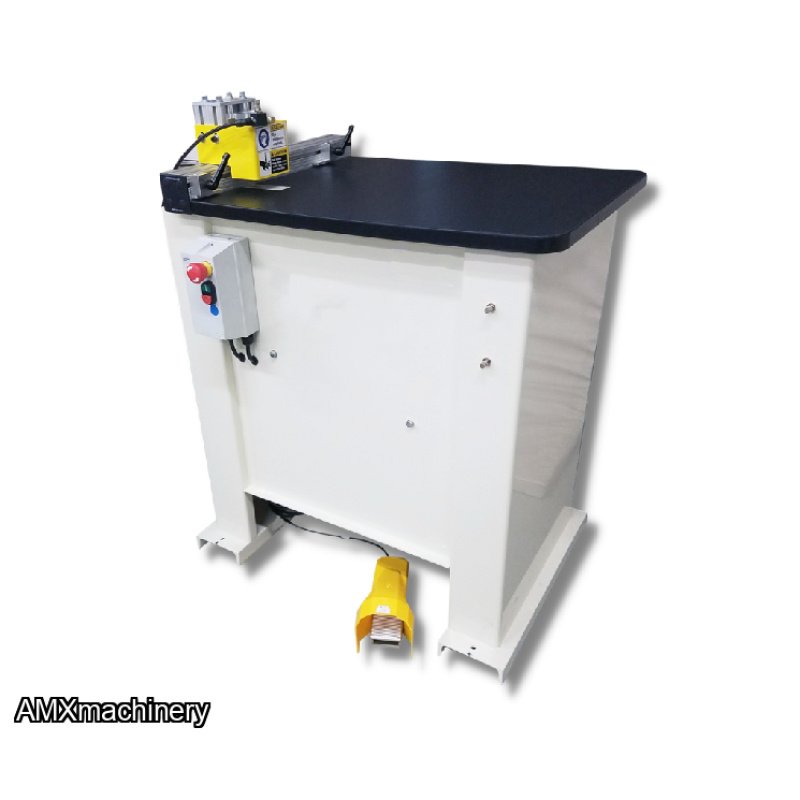

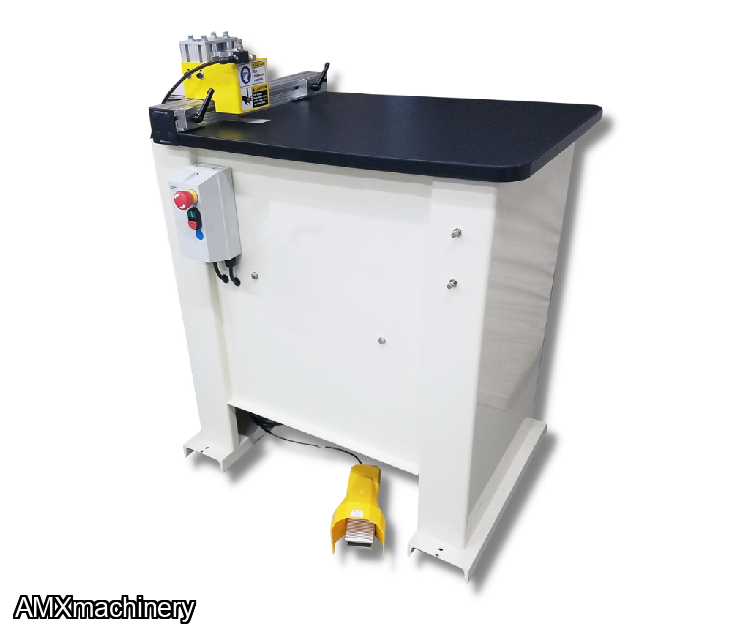

PARTE: 2RI-R19F - TALADRO LINEAL - 23 HUSILLOSTechnical Data and Specifications:
Description:
Is the mid level model in the line boring drills that Ritter Machinery has to offer. Is both affordable and built to last. Is a multi-spindle drill used for adjustable shelving. No more using templates that wear out quickly and lose accuracy. Is easily adjustable for entry and exit points, and cleanly allows the user to repeat the drill hole pattern with indexing pins on both the left and right hand side of the machine. The rear fence is adjustable allowing you to set your row offset from the edge. The pneumatic cycle allows hands free operation of the machine by using a foot pedal.
Standard Features:
- 23-Spindle Gear Driven Drill Head on 32mm Centers
- (12) Right Hand, (11) Left Hand
- 60" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Spring Loaded Index Pins
- (2) Spring Operated Material Clamps
- Adjustable Boring Depth
- Pneumatic Driven Boring Cycle
- Tooling Not Included
Technical Data and Specifications:
- Drive Motor: 3 HP
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 12"
- Maximum Material Thickness: 1.25"
- Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 38.25″
- Footprint: 36″ x 60″
- Table Area: 14″ x 48″
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.png)
AMXmachinery1
TORNO 16'' X 40''
TORNO 16'' X 40'' PARTE: 2GM-GML-1640HDISO 9001 certifiedLarge spindle bore 2-1/16”Heavy Duty spindle D1-6One-piece solid cast iron machine baseHeavy Duty guideway width 10-1/4”Heavy Duty main motor 6 HP16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm45 kinds of inch threads, and 39 kinds of metric threadsThreading and feeding rate change without changing gearsSpindle is balanced, har...
-500x500.png)
AMXmachinery1
MAQUINA DE COPEADO
PARTE: 2PI-CMJ -MAQUINA DE COPEADOIs a machine designed for chip free coping or tenoning of either square or profiled parts without the need for a back-up piece or chip breaker. One motor with a belt is a great fit for smaller shops that don’t need to change between multiple profiles.No backer board or chip breakers requiredTear out free parts every timeAccurate spindle adjustment for tool alignmentPart stays fixed while the carriage moves
AMXmachinery1

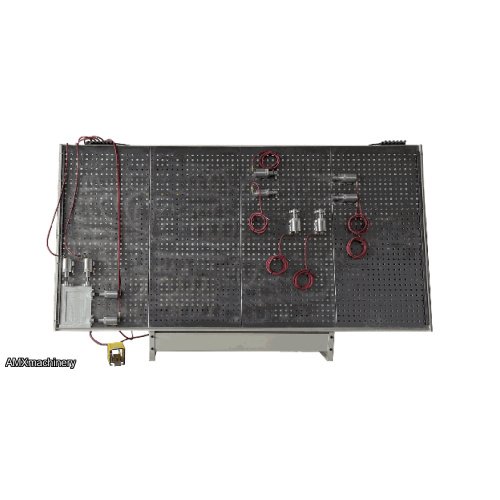

ARMADORA DE PUERTAS
