Description

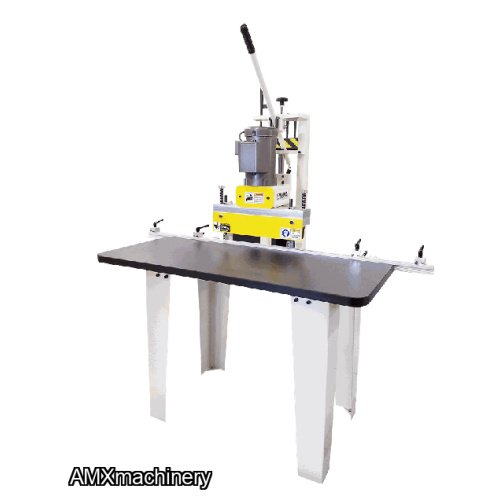

PARTE: 2RI-R19F - TALADRO LINEAL - 23 HUSILLOSTechnical Data and Specifications:
Description:
Is the mid level model in the line boring drills that Ritter Machinery has to offer. Is both affordable and built to last. Is a multi-spindle drill used for adjustable shelving. No more using templates that wear out quickly and lose accuracy. Is easily adjustable for entry and exit points, and cleanly allows the user to repeat the drill hole pattern with indexing pins on both the left and right hand side of the machine. The rear fence is adjustable allowing you to set your row offset from the edge. The pneumatic cycle allows hands free operation of the machine by using a foot pedal.
Standard Features:
- 23-Spindle Gear Driven Drill Head on 32mm Centers
- (12) Right Hand, (11) Left Hand
- 60" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Spring Loaded Index Pins
- (2) Spring Operated Material Clamps
- Adjustable Boring Depth
- Pneumatic Driven Boring Cycle
- Tooling Not Included
Technical Data and Specifications:
- Drive Motor: 3 HP
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 12"
- Maximum Material Thickness: 1.25"
- Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 38.25″
- Footprint: 36″ x 60″
- Table Area: 14″ x 48″
