Identificador: 1659
Abierta
.jpg)
Descripción

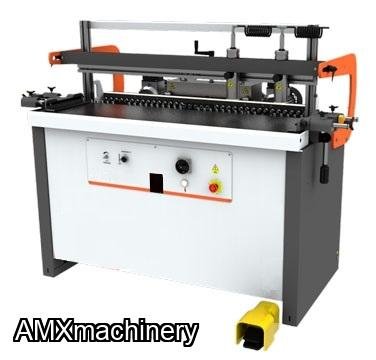

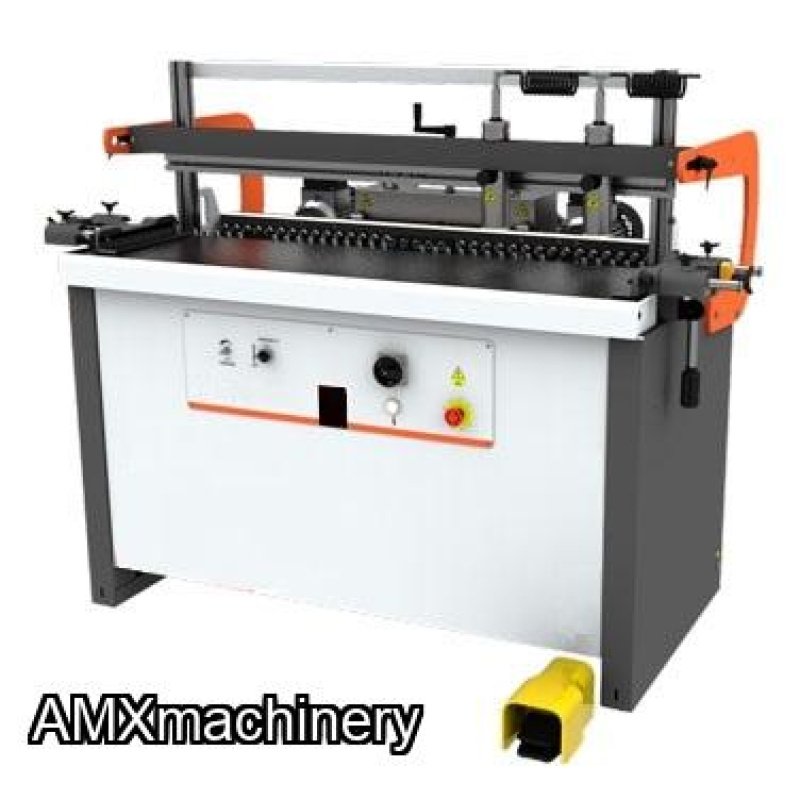

PARTE: 2JG-MAG-SYSTEM35 - TALADRO MULTIPLE - MAGGI SISTEMA 35
Provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle
- Accurate positioning of the boring unit to the table with digital readout
- 0 to 3.25" adjustable drilling depth with patented spiral setting device
- (4) patented quick release material clamps with auto-setting to firmly hold material to table
- (2) Powerful 2 HP motors
- 52.4" x 16.2" cast iron table
- Side fences with mechanical digital readout for quick and accurate setting
- 120" line boring fence with (4) stops
- Foot actuated pneumatic clamps and drill cycle
- Includes: Magnetic Starter with overload protection and (35) quick change chucks
- Dust Outlet: 3"
- Voltage: 230V 3-Phase
- Net weight: 705 lbs
- Dimensions: 65.75" x 38.9" x 50" Tall
- Crated Dimensions: 59.8" x 37.4" x 40.5" Tall
- Crated Weight: 995 lbs.
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
ESTACION DE CORTE Y BARRENADO
ESTACION DE CORTE Y BARRENADO• Precise cutting to length• Drilling 2 sides: (left and right side)• Doweling (left and right side)• Drilling from the top and underneath• Dividing and grooving• Cleaning and return transport to the operatorThis line is well suited for processing of plinths,drawers and similar items, that are used in the kitchenand furniture industry.Length:250 – 2200 mmHeight:10 – 80 mmWidth:25 – 250 mm
AMXmachinery1
SIERRA DE PANELES AUTOMATICA
PARTE: 2CK-TPS-SH - SIERRA DE PANELES AUTOMATICA Production panel sizing solution for the small to mid-sized manufacturer. The industrial machine design combined with user friendly PC control interface ensure accurately dimensions sheet components with a chip free finish. Available in 8’, 10’, 12’ with front loading. The powerful 18HP saw motor and carriage runs on two round hardened guide rails on (8) copper wheels. The saw carriage cutting speed is variably adjusted according to ...
AMXmachinery1
SIERRA MULTIPLE DE VAIVEN
PARTE: 2TA-TRS-150F - SIERRA MULTIPLE DE VAIVENFEATURESMinimum kerf multi blade frame saw designed to maximize production and minimize material loss.Thin frame saw design accepts different saw frames & blade combinations.Unique design allows multiple saw fence configurations to produce single, double or multiple cuts in a single pass.Machine supplied with PLC controller to allow operator to maximize saw production & minimize down time.Production times are reduced because of the machine's du...
AMXmachinery1
MULTISTEP CNC
MULTISTEP CNCMultistep machine with the option of many various processing options in one machine. There are several possibillities of extensions for our X-Line machine, from specialized magazines to integration of other machines• Magazine: vertical or horizontal• Formatting – saw with scoring• Drilling – from 6 sides• Milling – horizontal (front/back) and vertically (up/down)• CNC milling• Doweling• T-nut insert• Waste conveyer• And many other optionsLength:200 – 2200 m...
