Identificador: 3128 Abierta

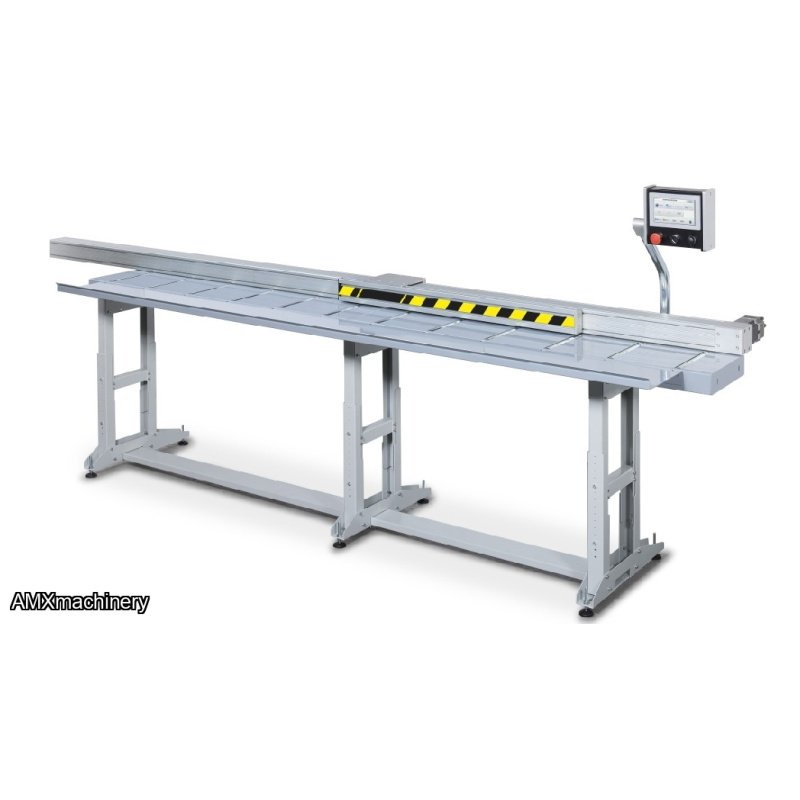

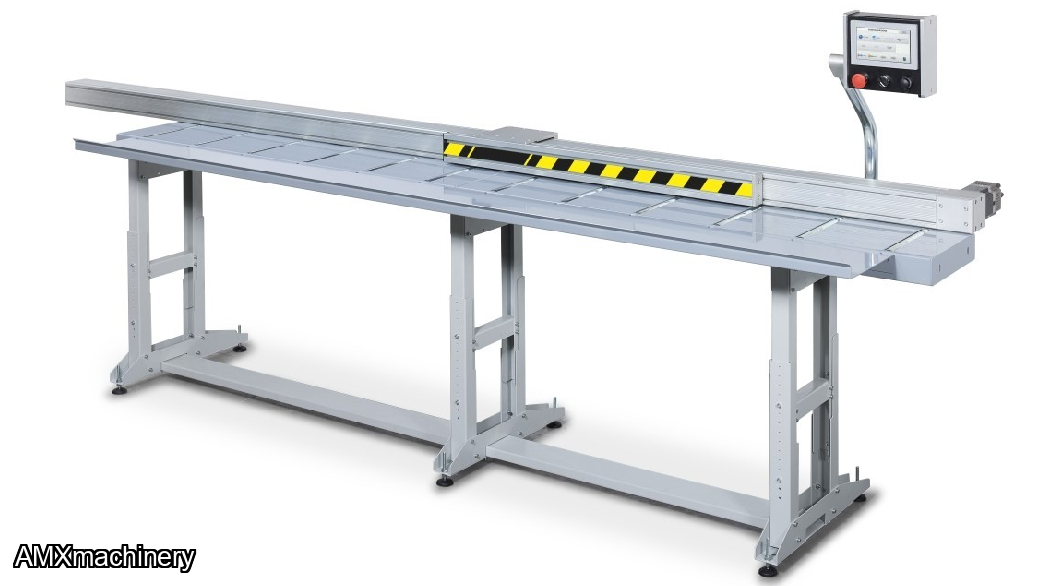

TOPE LATERAL ELECTRONICO

TOPE LATERAL ELECTRONICO

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 4ST-STROMABSTOP - TOPE LATERAL ELECTRONICO


ELECTRONIC MEASURING POSITIONER

OPTIMISING THE CUTTING PROCESS

Is our simple and sophisticated solution for turning your manual machine

into a semi-automatic resource by integrating an electronic stop which allows you to optimise the cutting process.

Modular in length and reversible in position.

The flexibility of configuration allows it to be combined with the Stromab cut-off machine

or to any cut-off machine already installed in the workshop, to reduce waste and optimise production.


Technical specifications

Anodised aluminium profile

  • section 105 x 90 mm
Servodrive motor power
  • 6 Nm multitension
Motor voltage

  • 115-230 VAC 50-60 Hz
Reinforced toothed belt
  • 32 mm

Positioner capacities

  • 3000 mm / 4500 mm / 6000 mm / 7000 mm

Positioning speed

  • 60 mt/min

Positioning mode

  • absolute and incremental

Repeatability accuracy

  • +/- 0,1 mm

Software interface

Contro panel

  • 7" touch screen

Cutting size presetting

  • upto 8 programmable cutting sizes

Cutting lists importing and software updates

  • through USB port

Criteria for optimising cutting lists

  • sequence, max length and minimun waste (option)
