Descripción

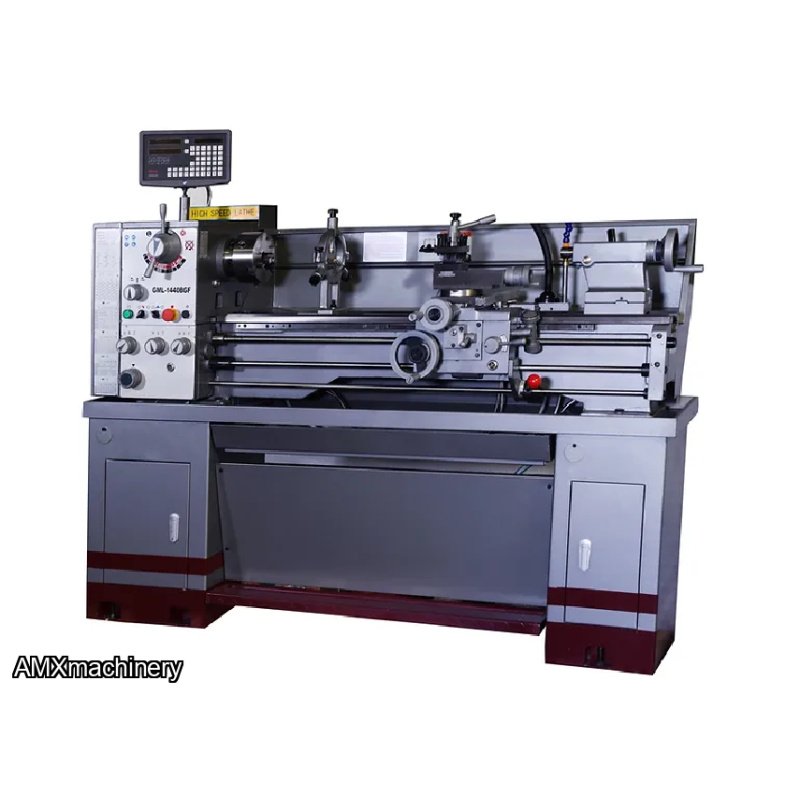

TORNO 14'' X 40'' PARTE: 2GM-1440BGF-1PH
Our engine lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. Our lathes are robust, reliable, easy to use, convenient to repair, precise, quiet, and have no vibration.
- Lifetime Tech Support by phone and video
- Full Geared-head precision Metal Lathe with foot brake
- Quick-change gearbox with fast and easy threading set up
- 3 HP heavy duty main motor runs on 220V Single-Phase power
- Spindle bore 1.5”
- Spindle Nose D1-4 Camlock
- Heavy Duty guideway width 7 1/2”
- 8 spindle speeds ranging from 70-2,000 RPM
- 56 kinds of inch threads
- 44 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Comes equipped with:
- SINO (DRO) Digital Readout - Installed
- Taper Attachment - Installed
- 6” 3-Jaw Chuck with reversible jaws
- 8” 4-Jaw Chuck with reversible jaws
- 10” Face Plate
- 3.75” Large Steady Rest
- 2” Follow Rest
- Foot Brake
- Coolant System
- Metal Stand with 2 Cabinets
- Halogen work lamp
- 4-Way Tool Post
- Full Length Splash Guard
- 2 – Dead Centers
- 1 – Reducing Sleeve
- 1 – Thread Chasing Dial
- 1 – Tool Box with maintenance tools
L A T H E C A P A C I T Y | |
Max. Swing Over Bed | 14” |
Max. length of workpiece | 40” |
Max. length of cutting | 34” |
Max. Swing Over Cross Slide | 8.25” |
Center Height | 7” |
Distance between centers | 40” |
Bed Width | 7.5” |
Bed Length |
|
S P I N D L E | |
Spindle Nose | D1-4 Camlock |
Spindle Bore | 1.5” |
Spindle Taper Nose | MT5 (Morse Taper #5) |
Spindle Taper Sleeve | MT3 (Morse Taper #3) |
Range of Spindle Speeds | 70-2,000 RPM |
Low Spindle Speeds | 70/115/190/300 RPM |
High Spindle Speeds | 460/755/1255/2000 RPM |
Steps of Spindle Speed | 8 steps |
F E E D | |
Range of Longitudinal Feeds | 0.00168” - 0.11750”/rev. IPR, 24 kinds |
Range of Cross feeds | 0.00046” - 0.03231” /rev. IPR, 24 kinds |
T H R E A D I N G | |
Imperial Threads QTY. / Speed | 56 / 4-112 TPI |
Metric Threads QTY. / Speed | 44 / 0.1-7.0 mm |
Diametral Pitch threads QTY. / Speed | 32 / 16-112 DP |
Module threads | 34 / 0.1 – 1.75 mm |
T A I L S T O C K | |
Tailstock Quill Diameter | 1.5” |
Tailstock Quill Taper | MT3 (Morse Taper #3) |
Tailstock Quill Travel |
