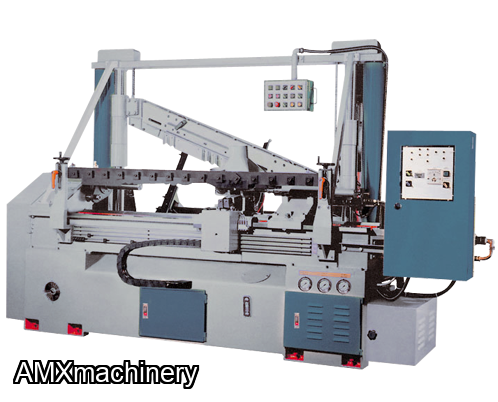

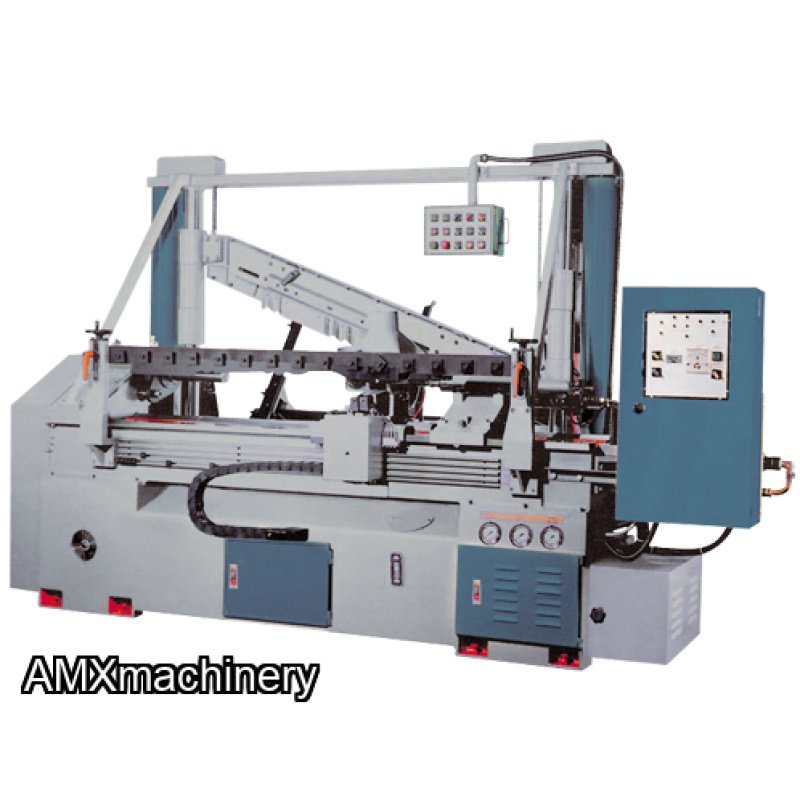

TORNO COPIADOR AUTOMATICO 26" Y 44" ANCHO

PARTE: 2LO-CL-168A – TORNO COPIADOR AUTOMATICO – 26” ANCHO

PARTE: 2LO-CL-1240A – TORNO COPIADOR AUTOMATICO – 44” ANCHO

Nuevos con garantia

Features:

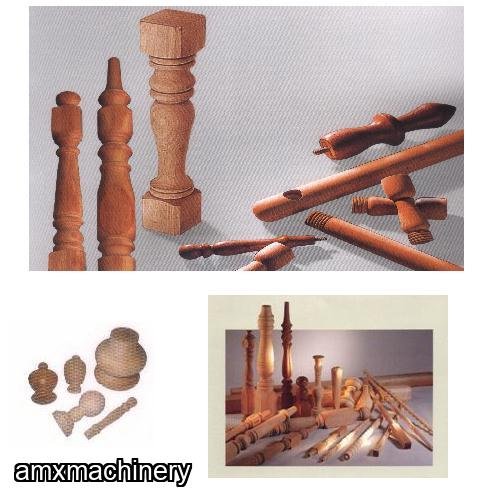

• Designed for the fast, efficient productions of indicate turning, the Fully Automatic Back Knife Lathe is ideal for high production of wide variety turnings.
• Main frame is made of cast iron with heavy ribbed construction, stress relieved for stability and accuracy.
• All machine functions are controlled from one conveniently located swiveling panel.
• This unit automatically lubricates all slides surfaces for maximum wear resistance.
• The workpiece support collar is automatically lubricated to reduce heat and friction. This allows for smoother cutting and better support.
• Carriage speed is automatically varied for deferent turning section.
• Hydraulic hopper feeds one stock to the centering device after each turning is accomplished, thus enables the machine to be fully automatic operation.
• Easily and quickly adjusts for all size of stock.
• The tail stock housing is made of FC-25 cast iron for strength and stress relieved for stability.
• The internal bore is heat-treated to resist wear and precision ground for accuracy.

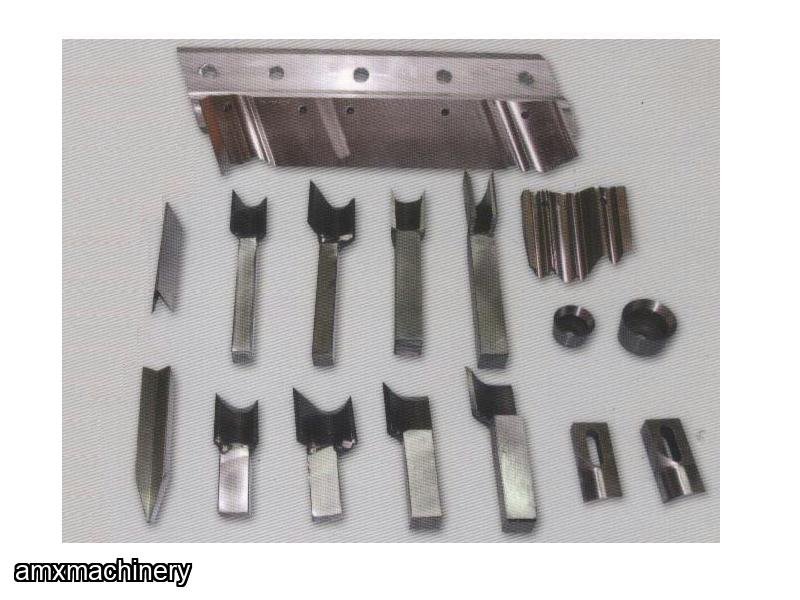

• The tool rest is equipped with two U & V pattern knives and driven by hydraulic power which allow for a smooth cutting action and the produce of large, deep-cut turning.
• The big diameter column is chrome hardened, precision ground for long lasting accuracy.
• The back knife is securely fastened to the knife bar which is counter balanced to given a smooth, even cutting action.
• Centralized hydraulic controls: Carriage fast and slow speed, roughing knife pressure and tailstock holding pressure adjustments are all centralized at one convenient location.
• The back knife slides on precision linear motion guides, providing effortless, smooth movement.
