HORNO PARA CERAMICA, VIDRIO, METALES – 93 LITROS

PARTE: 2PG-TNF823 – HORNO PARA CERAMICA, VIDRIO, METALES – 93 LITROS

NUEVO CON GARANTIA

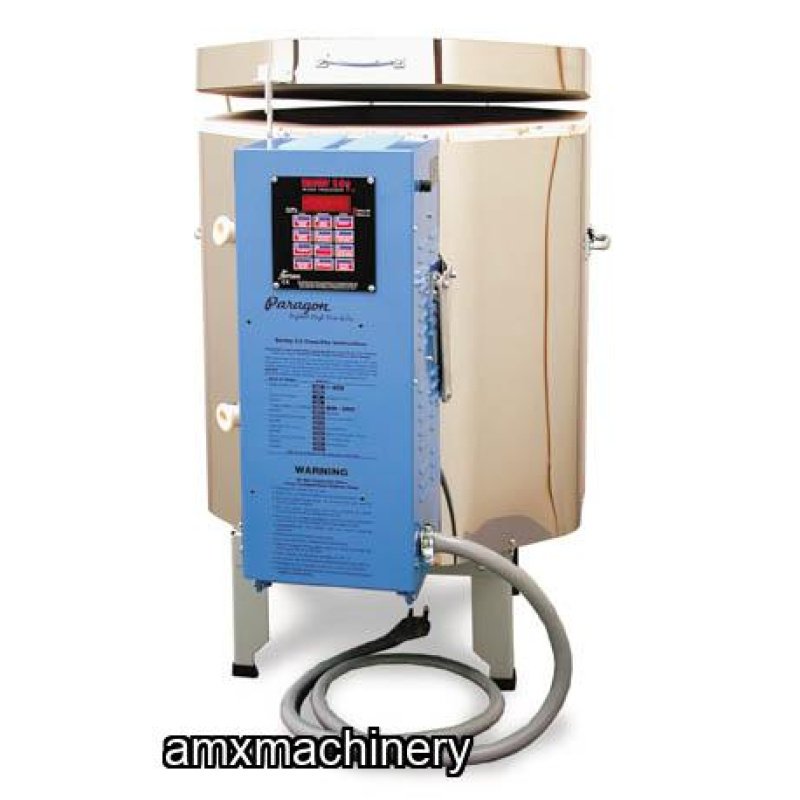

The digital automatic TnF-82 kiln is large enough for most ceramic projects. Figured at cost per cubic foot, it is among our lowest priced hobby kilns. It uses the same circuit size as most of our studio kilns. Upgrade to a larger kiln later without having to install a new circuit.

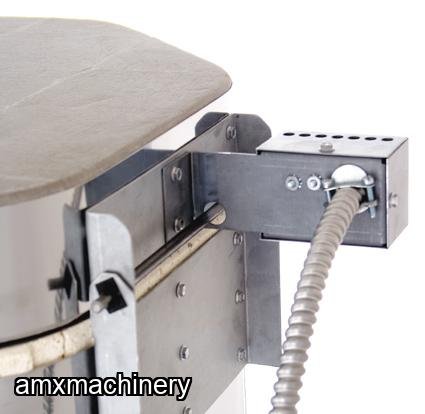

Features the easy-access drop down switch box. Remove two screws, and the box, hinged at the bottom, opens forward for easy maintenance. The kiln features a top row of 2” high blank wall bricks. Since the brick is without element grooves, it is less susceptible to damage during loading than a grooved brick.

A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon kiln is built to last.

The TnF-82 is made of 2 ½” thick firebrick in the lid, walls and bottom. It is designed for low-fire ceramics, china paint, decals and gold. For porcelain and stoneware, select a kiln made of 3” firebrick.

You will be amazed at the convenience of digital firing. The reliable solid-state Sentry controller continually monitors the firing so you can spend your time productively without closely watching the kiln. (Please remember, however, to check the kiln during firing and to monitor it near the expected shutoff time.) The sealed touch pad keeps out dust and is easy to wipe clean.

The controller has powerful features that you will enjoy using. Yet we have also worked hard to make the controller user-friendly.

Do you ever wonder how much electricity your kiln uses? The digital controller can figure this for you with the press of a button. Find out how little a kiln actually costs to fire. Learn to conserve energy by experimenting with firing speed, load density, etc.

The heat of the kiln is magical and offers wonderful surprises. Ceramic glazes undergo a complete transformation in the kiln. Opening a kiln to view your treasures is a festive moment that you will never outgrow.

Features of the TnF-82 Digital Kiln

Sentry 12 Key Digital Controller, made by Orton Ceramic Foundation

Long-life electrical system with high temperature wire

Lock-in lid support with a positive catch

2 wide-view tapered peepholes

Ventilated, louvered switch box

2 hand lifts

Heavy duty kiln stand with mar-proof plastic feet

Full-formed, galvanized steel base covers the entire brick bottom

Fall-away two stage Prop-R-Vent for venting the ware

Coated lid, peepholes and rim of firebricks for extended firebrick life

Operating instructions on switch box

Heavy gauge stainless steel case

Full firing capacity: fire ware directly on the brick bottom

Reversible brick bottom

Dropped, recessed brick grooves help prevent element bulging; eliminate the need for element pins; make changing the element easier and faster than some competing models that require element pins.

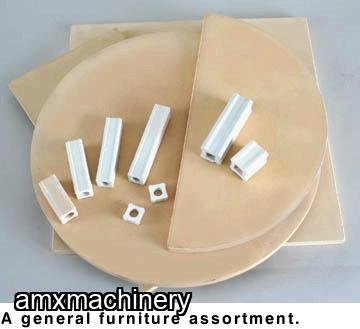

The Furniture Kit

The furniture kit consists of carefully selected fireclay shelves and posts for this particular model. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.

Furniture Kit for S-82, SnF-82, TnF-82

3 C-16 Shelves (15 1/2” octagon x 5/8”), 1 C-16H 1/2 Shelf

1" wide Square Posts, 4 of each - 1/2”, 1”,

2”, 3”, 4”, 5”, 6” lengths

1 lb. Bag Kiln Wash

Furniture Kit Shipping Weight: 50 lbs.

Designed for production

Warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.

Optional colors at no extra charge

Brighten your studio with color! Order your kiln in one of our standard colors at no extra charge . . . berry, black, blue, hot pink, jade, navy, purple, or turquoise. Scroll down to see color samples in the options section.

Specifications

Max. Temperature: 2300F - 1259C

Amps: 30

Phase: 1

Watts: 7200

Breaker Size: 50

Circuit Copper Wire Size: 6 gauge

TUV tested to CSA and UL Standard 499: Y

CE: N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type: Sentry Digital 12-key Ceramics

Voltage: 240

Hertz: 60

Nema Details:

Kiln Type: Top Loading Round

Sides: 8

Chamber Volume: 3.30 CU.FT. - 93.45 litres

Chamber Width: 17.50 IN - 445 mm

Chamber Depth: 22.25 IN - 565 mm

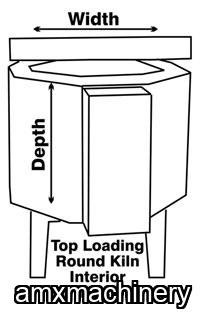

The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size: 25.50W x 28.30D x 37.00H Inches - 648W x 719D x 940H mm - The external kiln height includes a 9.5" tall stand.

Ship Size: 36.00W x 37.50D x 35.00H Inches - 914W x 953D x 889H mm

Ship Weight: 200.00 Lbs. - 90.72 Kg.

Ship Method & Notations: This Kiln Ships Via Truck

Part Number: TNF82 - Base Model
