Identificador: 398
Abierta
Descripción

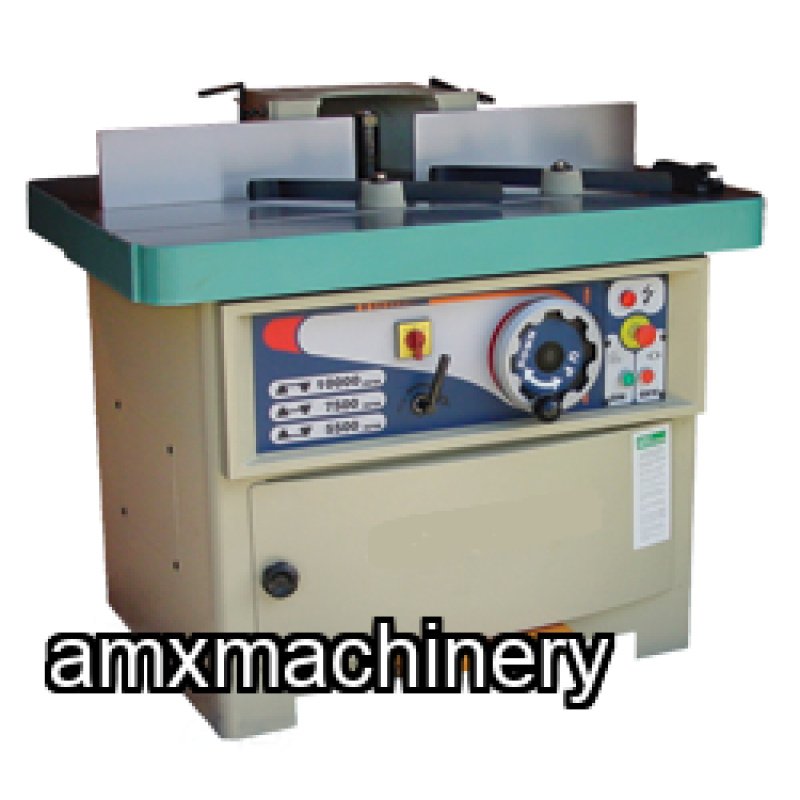

PARTE # 2-EX-ET-150 - TROMPO - MOTOR 7.5 HP - CON FLECHA DE 1-1/4"
PARTE # 2-EX-ET-160 - TROMPO - MOTOR 10 HP - CON FLECHA DE 1-1/4”
Nuevo con garantia
Engineered for continuous industrial use, the shapers are great machines for demanding applications. The large work area, reversable spindle, optional digital readout, and powerful motors ensure clean, safe and efficient production.
3 spindle speeds: 5.5, 7.5 and 10K RPM
Reversable
Magnetic starter
Precision fence assembly
Table inserts
Front access panel
Spindle lock
Micro adjust left and right positioning
Spindle brake
Emergency stop
Optional digital readout
| 2-EX-ET-150 |
Main Motor | 7.5HP |
Phase | 3 |
Spindle RPMs | 5.5/7.5/10K |
Table Size (in) | 46x34 |
Max Diameter Opening | 12-3/8" |
Spindle Travel | 6-1/2" |
Included Spindles | 1-1/4 Fixed |
3/4" Spindle (in) | *** |
1" Spindle (in) | *** |
1-1/4" Spindle (in) | 5-13/16" |
Included Collet Adapters | NA |
Interchangeable Spindles | No |
CFM Requirements | 750 |
Sliding Table Travel | NA |
Amps | 18 |
Weight | 1250 lbs |
