ID: 1284
Open
Description

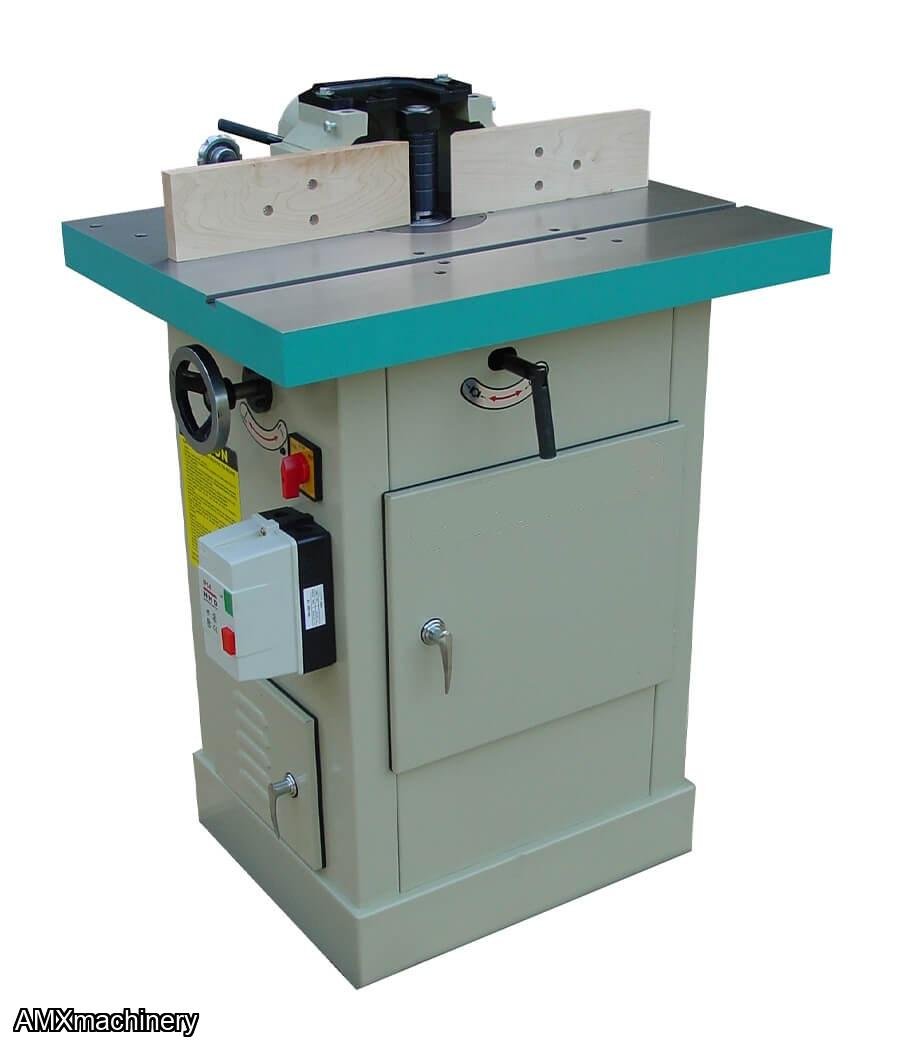

PARTE: 2EX-ET-100 – TROMPO – MOTOR 5 HP – FLECHAS ¾ Y 1-1/4”
Nuevo con garantia
The ET-100 is a powerful and fully customizable machine at a reasonable price. With the optional sliding fence and interchangeable spindles, this machine is a real asset to any shop.
2 spindle speeds: 7,500 and 10,00 RPM
Interchangeable spindles
Reversable
Magnetic starter
micro adjustable fence
Table inserts for multiple cutter diameter
Front and side access panels
Spindle lock
Replaceable hardwood infeed and outfeed fence assembly
Optional sliding table attachment
STD. NEMA size electrical controls
Horsepower: 5HP
Voltage: 230V or 460V
Phase(s): 1PH or 3PH
Main Motor: 5 HP
Spindle RPMs: 7.5 / 10K
CFM Requirements: 480
Table Size: 29" x 23"
Max Diameter: 6"
Spindle Travel: 2-9/16"
Included Spindles: 3/4, 1-1/4"
3/4" Spindle: 2-15/16"
1-1/4" Spindle: 4"
Included Collet Adapters: 1/2"
Interchangeable Spindles: Yes
Sliding Table Travel: 20"
Amps: 15
Weight: 400 lbs
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52” ANCHO - 2 LIJAS - TIMESAVERS
PARTE: 12295 - LIJADORA DE BANDA ANCHA - 52”
ANCHO - 2 LIJAS - TIMESAVERS
USADA BUENAS CONDICIONES
460/60/3 electrics
Standard
Specifications:
1st head,
75 HP, 230/460/60/3 hard rubber contact drum
2nd head,
60 HP, 230/460/60/3 hard rubber contact drum
Weighs 16,000 lbs.
AMXmachinery
PARTE: 3HP-EMA-300 – CABECEADORA - ESCOPLO Y ESPIGA CONTINUA PARA TABLAS Y PISOS – 40-300 MM ANCHO
PARTE: 3HP-EMA-300 – CABECEADORA - ESCOPLO Y ESPIGA CONTINUA PARA
TABLAS Y PISOS – 40-300 MM ANCHO
Nuevo con garantía
Specification:
1.Max.
/ Min. Width: 300mm / 40mm 2.Max.
/ Min. Thickness: 10mm / 35mm 3.Min.
Board Length: 270mm 4.Max.
Board Length: Unlimited 5.Max.
Board Weight: 15kgs 6.Cutterhead
Spindle Motors: 5-1/2HP x2 (Optional: 7-1/2HP x2 or 10HP x2) 7.Feeding
Pressure Roller Motor: 1HP W/1HP Inverter 8.Infeed
Conveyor Table Motor: 1/2HP (Optional: Variable Feed 1H...
AMXmachinery
ENCHAPADORA CANTOS CURVOS
PARTE: 1SO-EB-3 - ENCHAPADORA CANTOS CURVOS – MEDIANANUEVA CON GARANTIAPOTENCIA MAXIMA: 1700 WATTSVOLTAJE: 220V, 2 o 3 FASESVELOCIDAD DE TRABAJO VARIABLETEMPERATRA DE OPERACIÓN: 120-280 GRADOS CENTIGRADOSALIMENTADOR: RODILLO DE HULEPROTECCION: BAQUELITAMESA: PLACA 3/16AHESIVO: HOTMELTPESO: 180 KGCONTROL DE TEMPERATURA DIGITALBASTIDOR PLACA 3/16TRANSMISION: CADENA Y CATARINASCORTADOR NEUMATICOPREPARADA PARA ADITAMENTO BRAZOVIDEO DE LA MAQUINA https://vimeo.com/428512173
AMXmachinery
PARTE: 12651 - CEPILLO - 4 CARAS - 18” ANCHO - PINHEIRO
PARTE:
12651 - CEPILLO - 4 CARAS - 18” ANCHO -
PINHEIRO
Usado – Muy buenas condicionesCapacity: 6" x 18"Bottom Head Motor: 12 HPTop Head Motor: 18 HPSide-Head Motor: 9 HP EachFeed Motor: 3 HPFeed Rate: 30 & 60 FPMSide Head Spindle Diameters: 40mm
*Specifications are from manufacturer literature and need to be
confirmed*
