Description

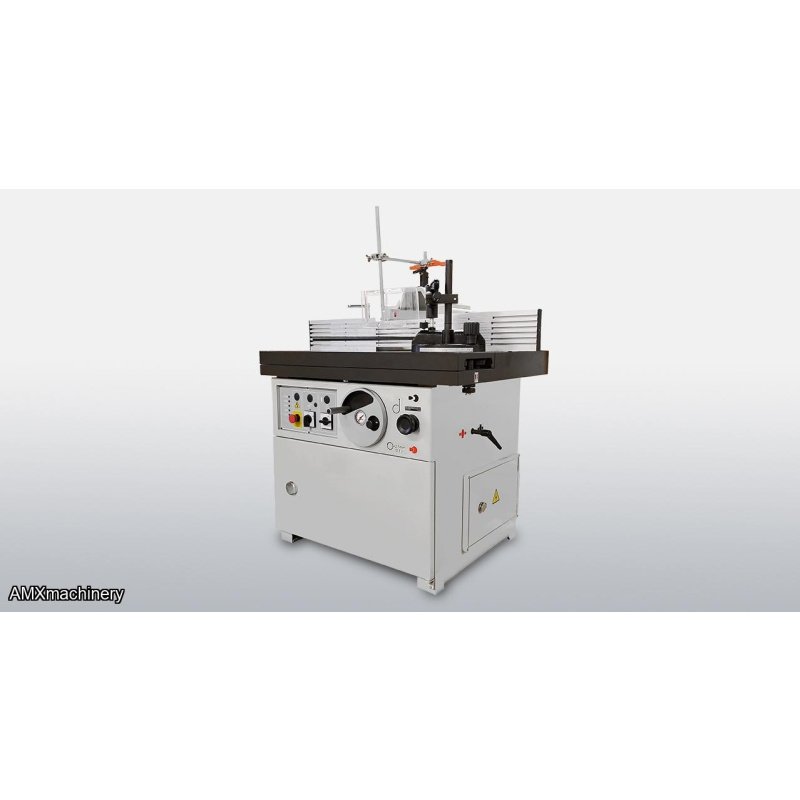

PARTE: 2CK-SS512CSB
Is a ruggedly built sliding table shaper with refined features well suited for demanding production environments. Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The sliding table is cast iron and runs on bearings for smooth and vibration free movement. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.
- Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig
- Precision ground and electronically balanced spindle
- V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
- Electric spindle brake for added safety
- Spindle lock – with limit switch safety, machine will not start with lock engaged
- Micro spindle height adjustment with dial indicator for precise height adjustment
- 1 ¼” Interchangeable cutter spindle is standard
- Forward/reverse spindle rotation
- Adjustable “finger” type fence
- Independent micro-fence adjustment on both sides
- Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base
Includes the following standard equipment:
- 1 ¼” spindle
- (1) 5” dust chute on guard & (1) 4” dust chute in the table
- Safety guard
- Mitre tenoning jig
|
Table size |
31 1/2 “ x 39.4” |
|
Spindle speeds (5) |
3000/4000/6000/8000/10000 RPM |
|
Spindle taper |
5 MT |
|
Spindle diameter |
1 ¼” |
|
Motor |
7.5 HP |
|
Sliding table dimensions |
39.4” x 10 ¼” |
|
Sliding table stroke |
37” |
|
Largest diameter of cutter: |
|
|
Above table |
8 ¼” |
|
Below table |
13 ¼” |
|
Fence size |
6” x 43” |
|
Vertical spindle stroke |
7” |
|
Useable length of spindle |
5 ½” long |
|
Dust port |
(1)5” on guard, (1) 4” in table |
|
Total HP |
7.5 HP |
|
Net weight |
1034 lbs. |
|
Machine dimensions |
48.4” x 39.4” x 52 ¾” |
