Identificador: 1695 Abierta

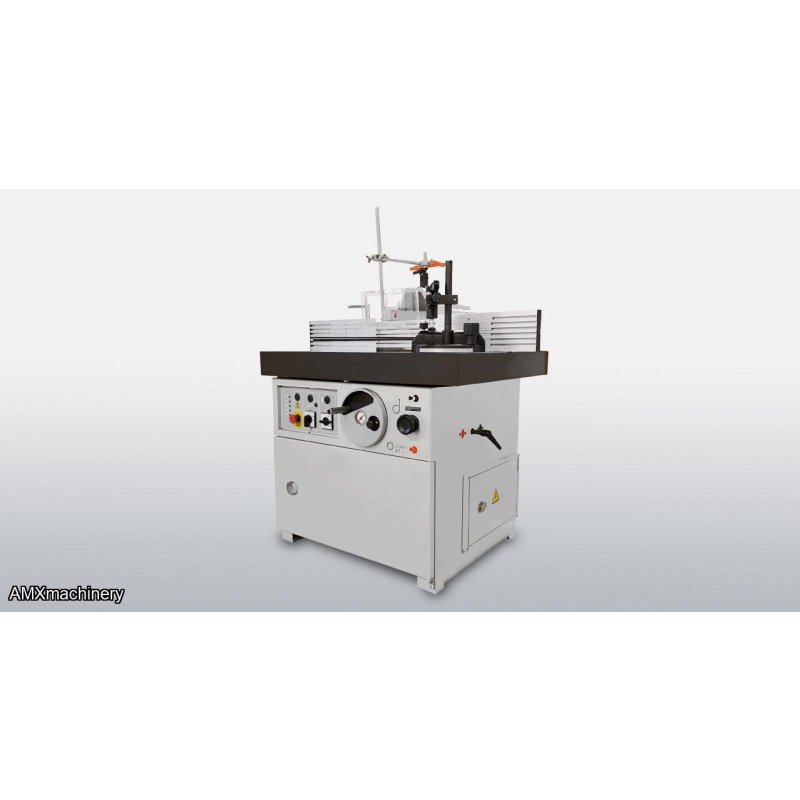

TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP
TROMPO - MOTOR 7.5 HP

TROMPO - MOTOR 7.5 HP

AMXmachinery1

Contacte al Vendedor
Descripción

PARTE: 2CK-SS512CB


Is a ruggedly built shaper with refined features well suited for demanding production environments.  Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more.  The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles.  The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.

  • 1 ¼” interchangeable spindle is standard (other sizes available)
  • Large cast-iron table is ground and polished for maximum stability and durability
  • Powerful 7.5 HP motor for even the most demanding profiling work

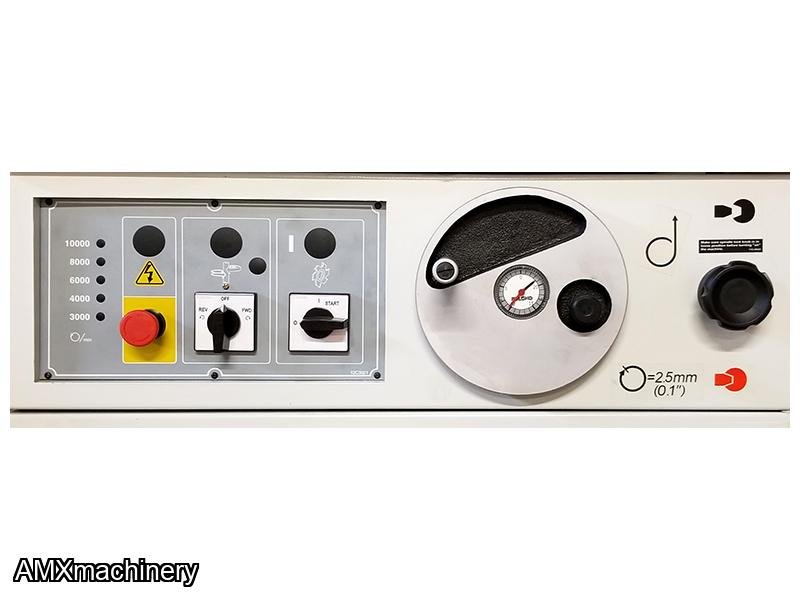

  • Five spindle speeds can be easily adjusted to suit your tool diameter
  • Electronic spindle brake for added safety and facilitates with fast changeover

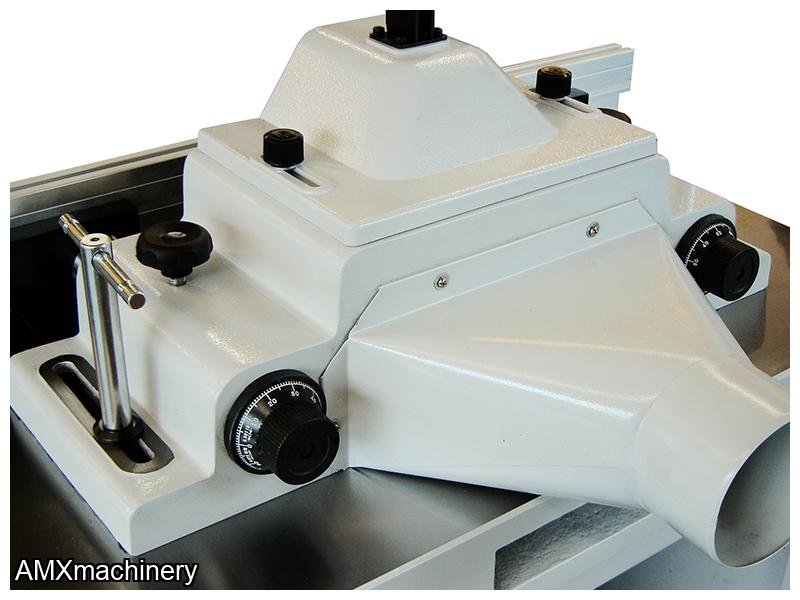

  • Precision fence assembly with micro infeed and outfeed fence adjustment
  • Finger style fence allows fence to be adjusted around the cutter for added safety and workpiece stability
  • Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig
  • Precision ground and electronically balanced spindle
  • V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
  • Electric spindle brake for added safety
  • Spindle lock – with limit switch safety, machine will not start with lock engaged
  • Micro spindle height adjustment with dial indicator for precise height adjustment
  • 1 ¼” Interchangeable cutter spindle is standard
  • Forward/reverse spindle rotation
  • Adjustable “finger” type fence
  • Independent micro-fence adjustment on both sides
  • Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base

Includes the following standard equipment:

  • 1 ¼” spindle
  • (1) 5” dust chute on guard & (1) 4” dust chute in the table
  • Safety guard
  • Mitre tenoning jig

Table size

31 1/2 “ x 39.4”

Spindle speeds (5)

3000/4000/6000/8000/10000 RPM

Spindle taper

5 MT

Spindle diameter

1 ¼”

Motor

7.5 HP

Largest diameter of cutter:



Above table

8 ¼”

Below table

13 ¼”

Fence size

6” x 43”

Vertical spindle stroke

7”

Useable length of spindle

5 ½” long

Dust port

(1)5” on guard, (1) 4” in table

Total HP

7.5 HP

Net weight

1034 lbs.

Machine dimensions

48.4” x 39.4” x 52 ¾”
