Identificador: 3198
Abierta
.PNG)
Descripción

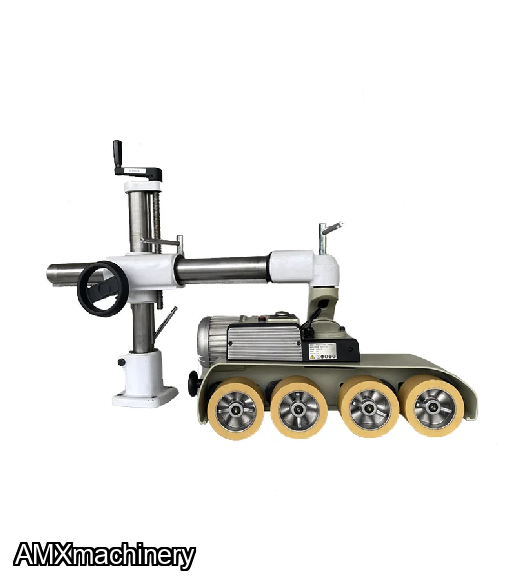

PARTE: 2EX-XF-DC4.1 - ALIMENTADOR - 4 RUEDAS - 0.7 HP
Specifications:
Features a 4-roller system with variable speeds. Includes the 2/3HP DC brushless servo motor for higher torque and better variable speed control than a 1HP AC motor.
- 4 Rollers
- FWD & REV
- 1PH or 3PH 230V
- DC Brushless Servo Motor
- 120mm x 60mm Rollers
- Infinitely variable feed speeds 7-72ft/min
Specifications:
- Horsepower: .7HP
- Voltage: 230V
- Phase(s): 1 or 3
- Number of Rollers: 4
- Number of Speeds: Variable
- Speeds: 7-72
- Min Speed (ft/min): 7
- Max Speed: 72
- Suspension: 3/4"
- Roller Size: 120mm x 60mm Rollers
- Weight: 141 lbs
